SEALMASTER SEHB-16C 703378 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, 1 Inch
Get it by Thursday, Dec 18
€294.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 2 1/2" |
| Base Width | 1 14/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.87" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 0.94" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | 3-1C |
| Length Through Bore | 1.498" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.06" |
| Overall Length | 3.13" |
| Overall Width | 1 14/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Series | SEHB Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Thread Depth | 0.81" |
| Thread Size | 3/4"-14 |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Width | Overall Length | Overall Height | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEHB-22CCR | - | - | - | - | - | - | - | - | €514.70 | |
 |

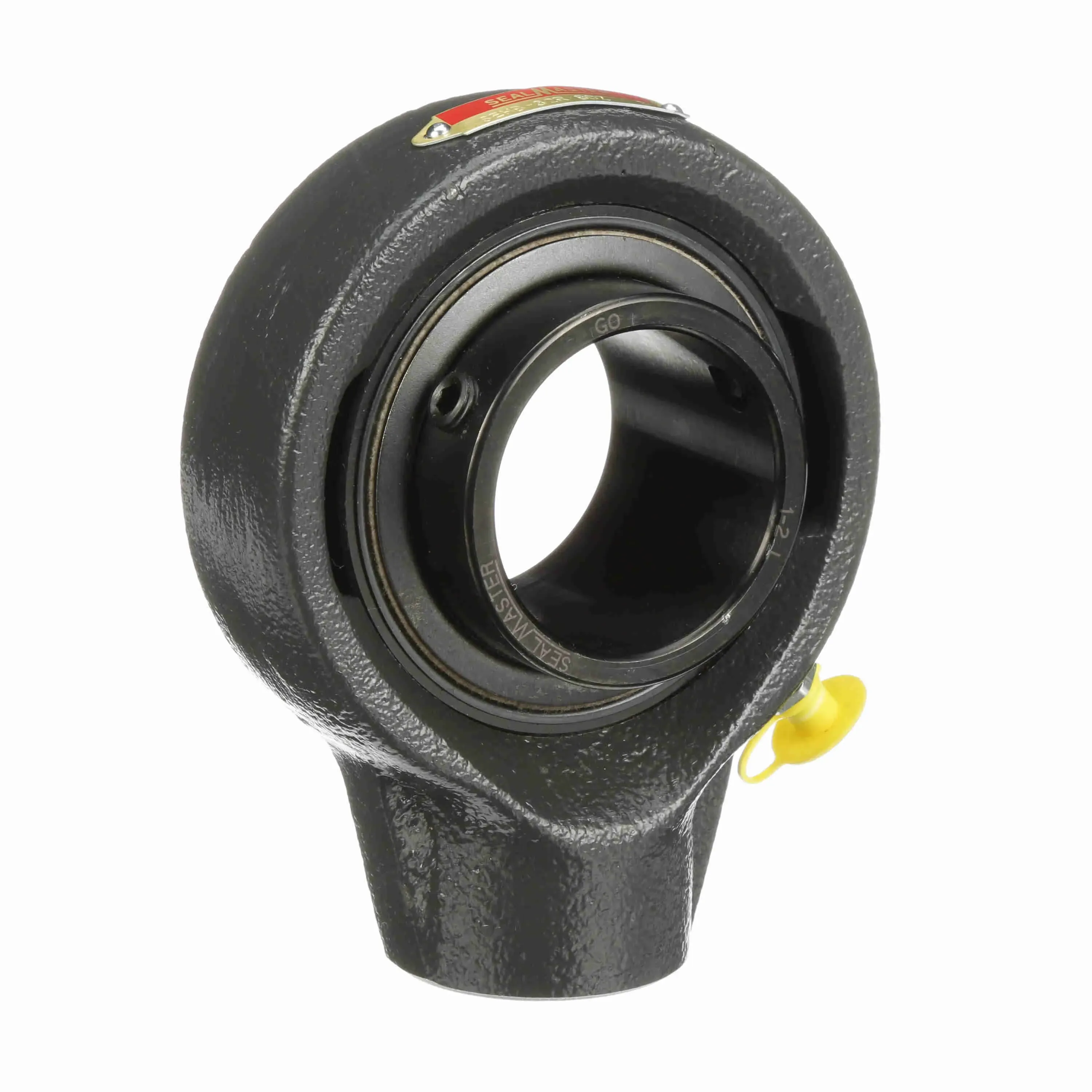

SEHB-32R BDZ | Hanger Unit | Set Screw | 2" | 2.03" | 4.38" | 5 11/25" | Felt Labyrinth Seal | 1-2 | €547.17 | |
 |
SEHB-206 | Hanger Unit | Set Screw | 30 mm | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 5206 | €375.55 | |
 |
SEHB-46 | - | Set Screw | 2 7/8" | 3.06" | 6 1/2" | - | - | 2-214 | €1,439.32 | |
 |
SEHB-305C | - | - | - | - | - | - | - | - | €375.27 | |
|
SEHB-19T | Hanger | - | - | - | - | - | Standard Felt Seal | - | - | RFQ
|
 |
SEHB-15 BDZ | Hanger Unit | Set Screw | 15/16" | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 3-015 | €379.33 |
