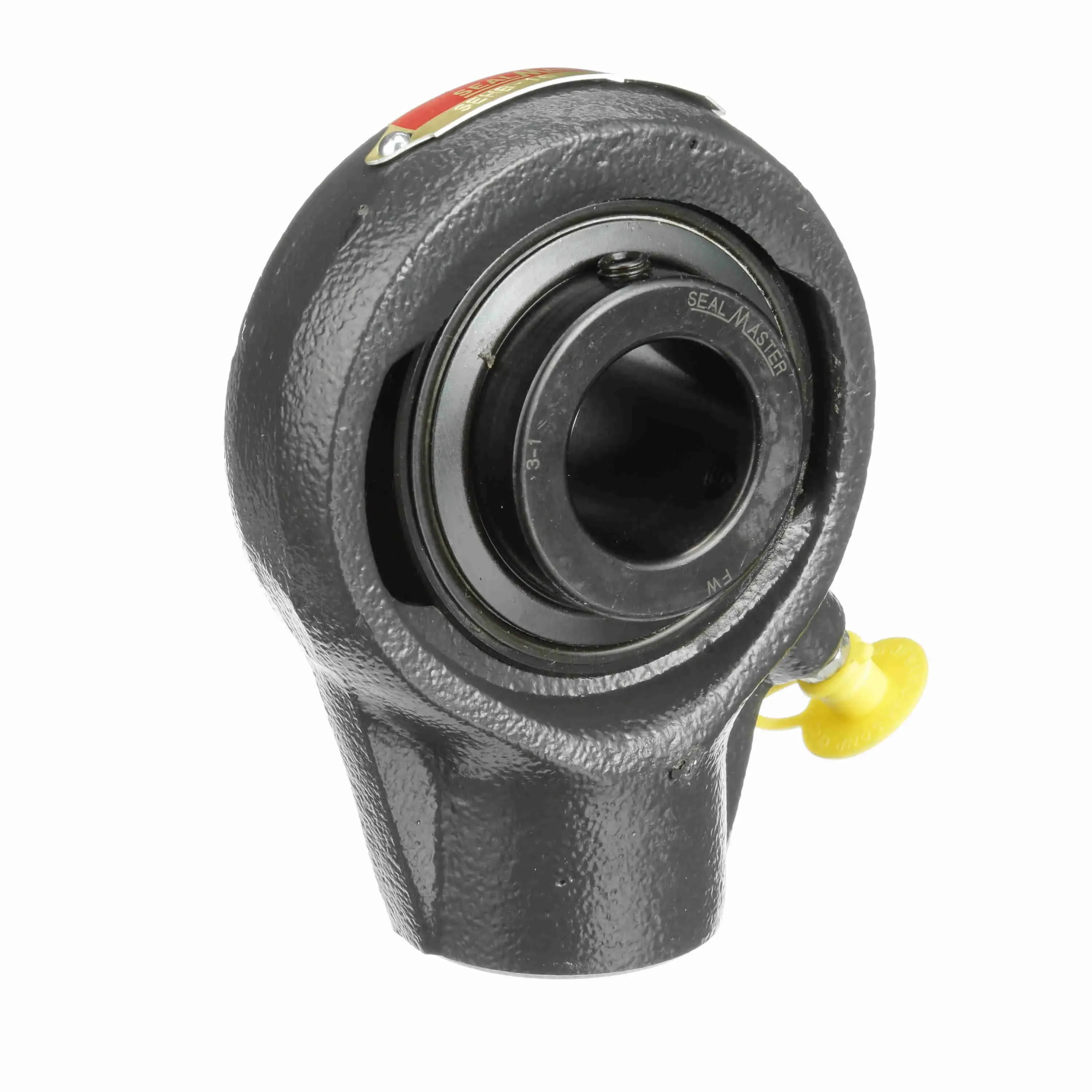

SEALMASTER SEHB-16 700389 Mounted Cast Iron Hanger Unit Ball Bearing
Get it by Tuesday, Sep 1
€294.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base To Center Height | 2 1/2" |
| Base Width | 1 14/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.87" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 0.94" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-1 |
| Inside Ring Outside Dia. | 1.594" |
| Length Through Bore | 1.498" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.06" |
| Overall Length | 3.13" |
| Overall Width | 1 14/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | SCHB Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Thread Depth | 0.81" |
| Thread Size | 3/4"-14 |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Width | Dynamic Load Capacity | Base Width | Base To Center Height | Overall Height | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEHB-22CCR | - | - | - | - | - | - | - | - | €514.70 | |
 |
SEHB-32R BDZ | Felt Labyrinth Seal | 2" | 2.03" | 7889 lbs. | 1 22/25" | 3 1/4" | 5 11/25" | Hanger Unit | €547.17 | |
 |
SEHB-206 | Felt Labyrinth Seal | 30 mm | 1 14/25" | 4381 lbs. | 1 14/25" | 2 1/2" | 4.06" | Hanger Unit | €375.55 | |
 |
SEHB-46 | - | 2 7/8" | 3.06" | 14839 lbs. | 2 3/4" | 4 5/8" | - | - | €1,439.32 | |
 |
SEHB-15 BDZ | Felt Labyrinth Seal | 15/16" | 1 14/25" | 4381 lbs. | 1 14/25" | 2 1/2" | 4.06" | Hanger Unit | €379.33 | |
 |
SEHB-36 | Felt Labyrinth Seal | 2 1/4" | 2 14/25" | 11789 lbs. | 2.31" | 4" | 6.81" | Hanger Unit | €752.14 | |
|
SEHB-210 | Standard Felt Seal | - | - | - | - | - | - | Hanger | €718.00 |
