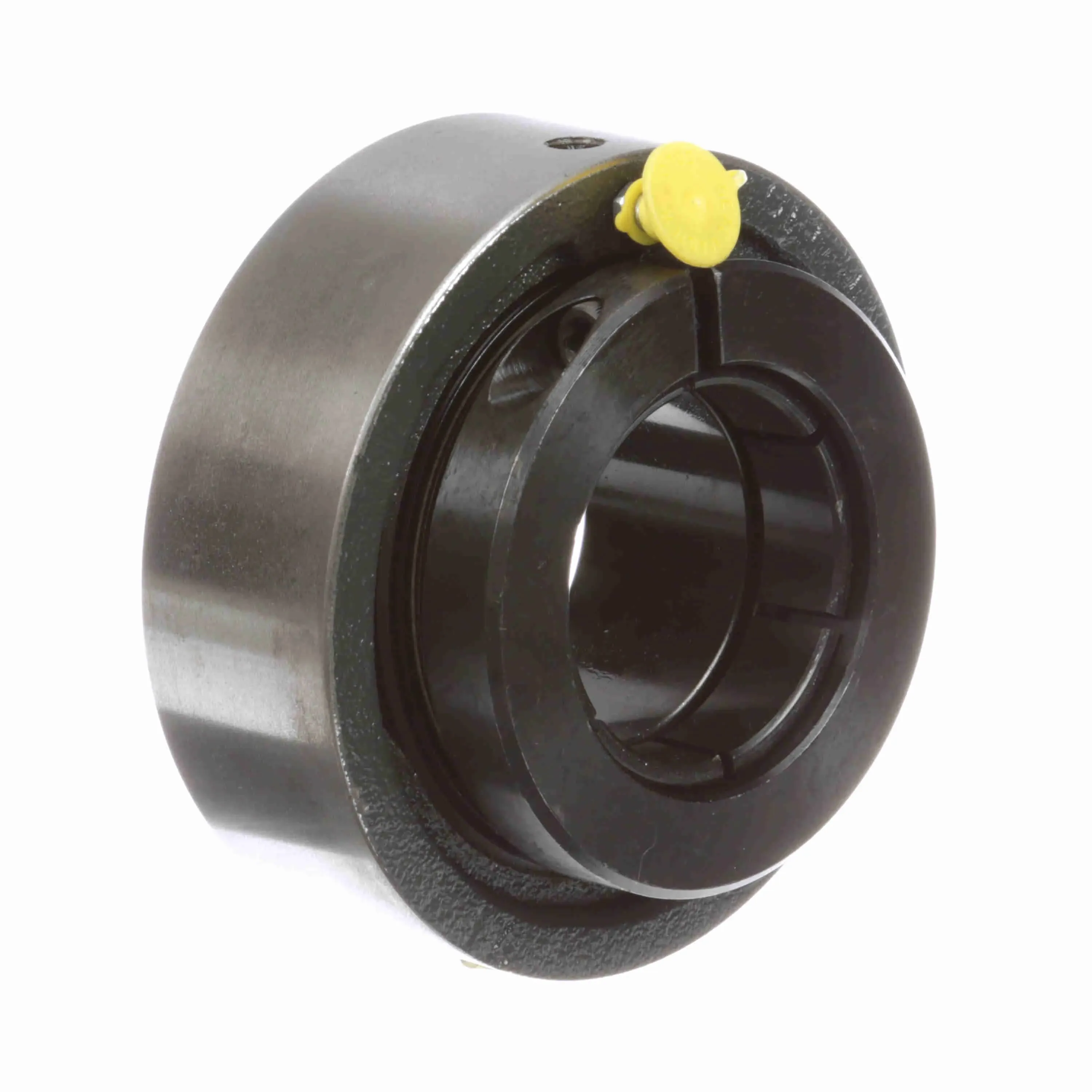

SEALMASTER SC-35T 705420 Ball Bearing Cartridge, 2.1875 Inch Bore, 4.9375 Inch Outside Diameter
Get it by Tuesday, Aug 18
€439.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.38" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.59" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-23T |
| Inside Ring Outside Dia. | 2.719" |
| Length Through Bore | 2 1/4" |
| Locking Collar Outside Dia. | 3 3/5" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 4.938" |
| Overall Height | 4.94" |
| Overall Length | 4.94" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | SC-T Series |
| Shaft Locking Type | Concentric |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 13.67 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Cage Material | Housing Type | Rolling Element | Max. Operating Temp. | Htc | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SC-43 | - | 2 11/16" | Brass | - | - | - | 8482.10.5056 | Sc Series | €917.26 | |
 |
SC-23 | Felt Labyrinth Seal | 1 7/16" | Polyphenylene Sulfide | Cartridge, Cylindrical | Ball Bearing | 220°F | 8482.10.5052 | Sc Series | €265.97 | |
 |
SC-32RC | Single Lip Contact Seal | 2" | Polyphenylene Sulfide | Cartridge, Cylindrical | Ball Bearing | 220°F | 8482.10.5052 | Sc Series | €469.99 | |
 |
SC-34C | Single Lip Contact | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €614.47 | |
 |
SC-46 | Felt Seal | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €4,177.80 | |
 |
SC-47 | - | 2 15/16" | Brass | - | - | - | 8482.10.5056 | Sc Series | €974.27 | |
 |
SC-26C | Single Lip Contact | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €465.82 |
