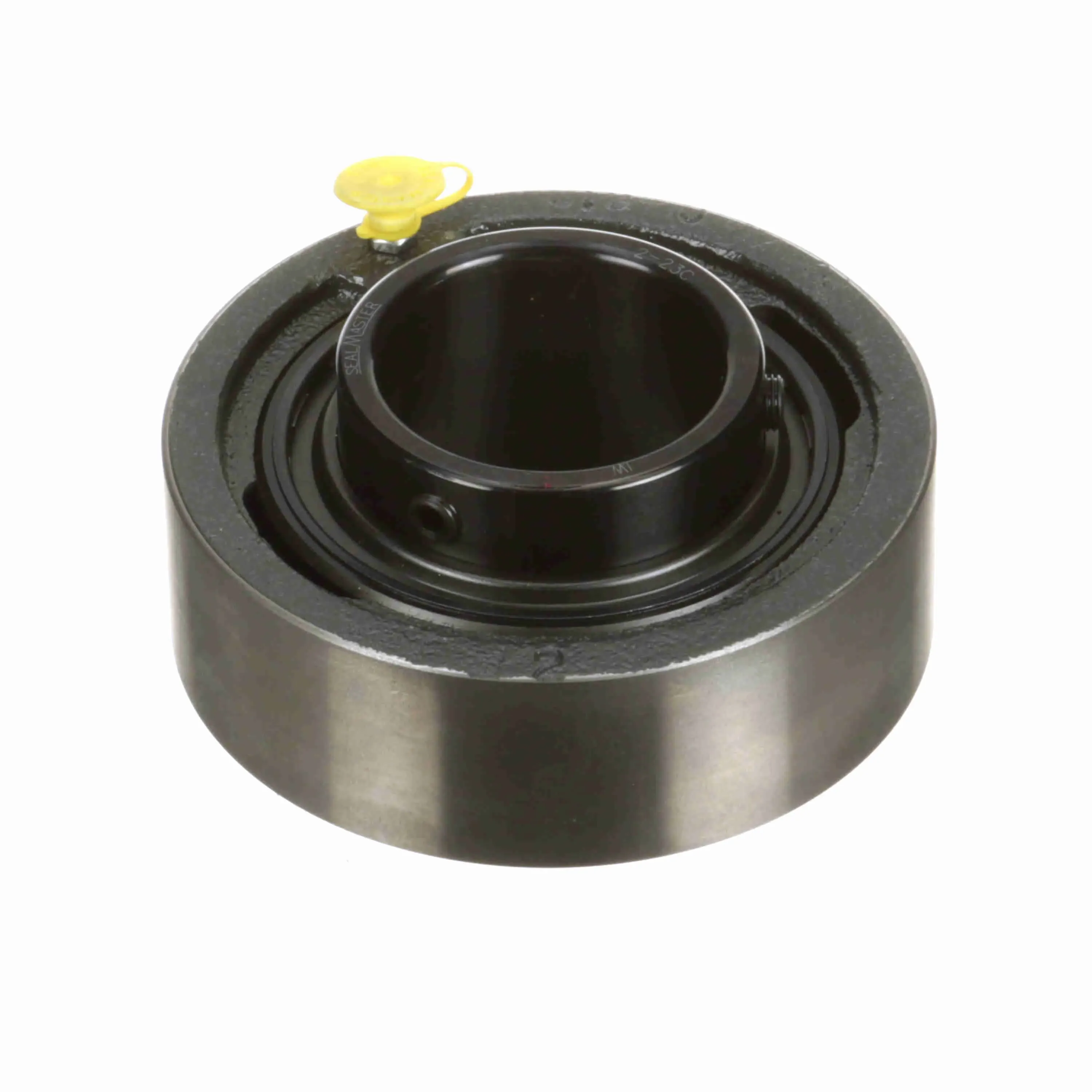

SEALMASTER SC-35C 703333 Cartridge Bearing, 2.18 Inch Bore, 4.93 Inch Out Dia, 1-19/32 Inch Cartridge Housing Width
Get it by Tuesday, Feb 24
€440.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cartridge Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.31" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.59" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | 2-23C |
| Length Through Bore | 2.188" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3250 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 4.938" |
| Overall Height | 4.94" |
| Overall Length | 4.94" |
| Overall Width | 2.19" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Series | Sc Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 13.67 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Outside Dia. | Cage Material | Seal Type | Housing Type | Overall Width | Max. Speed | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SC-10 | - | - | - | - | - | - | - | - | €205.46 | |
 |
SC-10-12 | - | - | - | - | - | - | - | - | €205.46 | |
 |
SC-11 | 11/16" | 2.688" | Polyphenylene Sulfide | Felt Labyrinth Seal | Cartridge, Cylindrical | 1.22" | 7300 RPM | 2611 lbs. | €261.86 | |
 |
SC-11 HI | - | - | - | Felt Seal | Setscrew | - | - | - | €1,178.67 | |
 |
SC-11C | - | - | - | Single Lip Contact | Setscrew | - | - | - | €304.18 | |
 |
SC-12 | 3/4" | 2.938" | Polyphenylene Sulfide | Felt Labyrinth Seal | Cartridge, Cylindrical | 1.22" | 7300 RPM | 2611 lbs. | €205.46 | |
 |
SC-12C | - | - | - | - | - | - | - | - | €205.46 |
