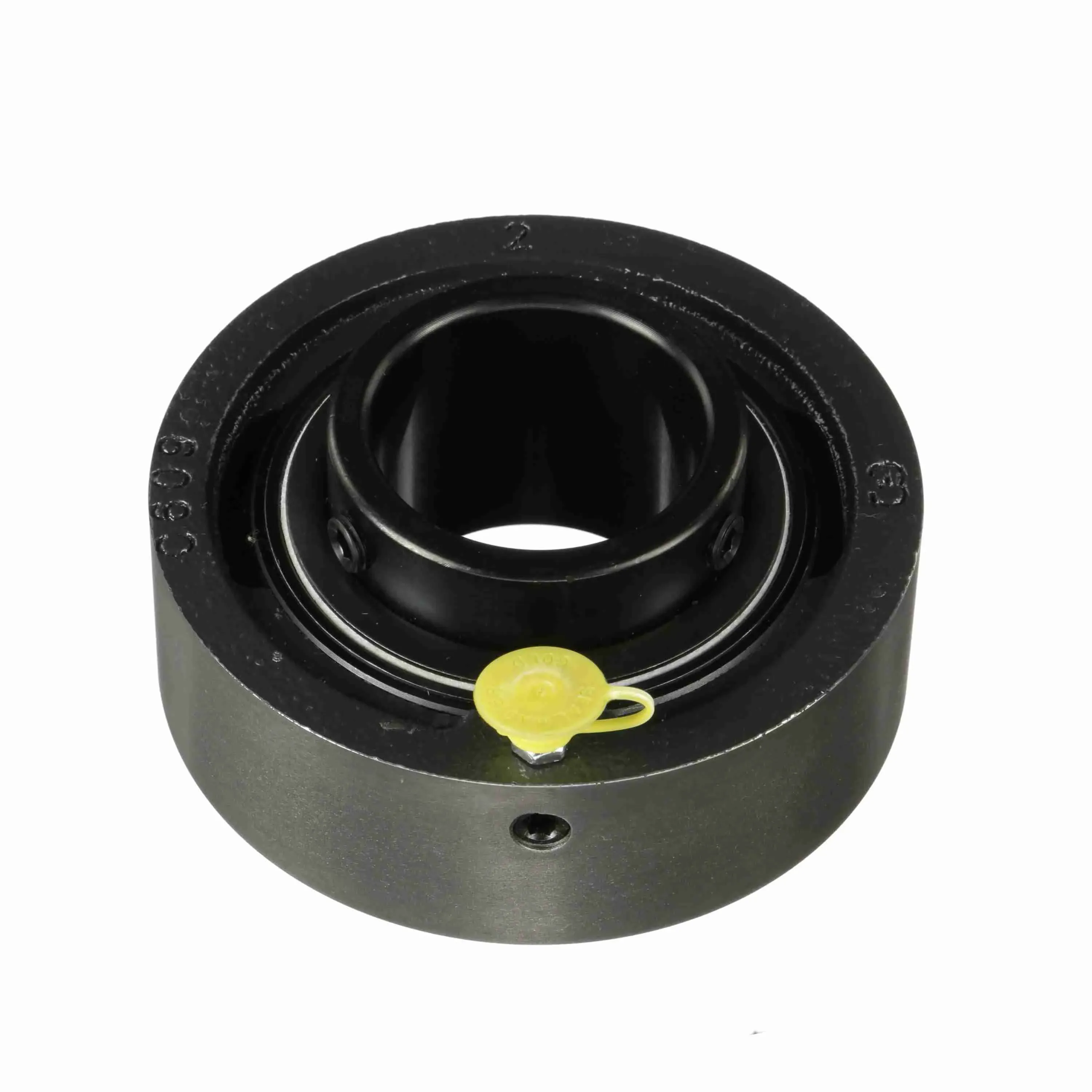

SEALMASTER SC-31 700335 Mounted Cast Iron Cylindrical Cartridge Ball Bearing
Get it by Tuesday, Dec 23
€368.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 7/25" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.47" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | 2-115 |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 4.563" |
| Overall Height | 4 14/25" |
| Overall Length | 4 14/25" |
| Overall Width | 2.03" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | Sc Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Outside Dia. | Cage Material | Seal Type | Housing Type | Overall Width | Max. Speed | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SC-12C | - | - | - | - | - | - | - | - | €205.46 | |
 |
SC-43 | 2 11/16" | 6 1/4" | Brass | - | - | 2 3/4" | 2500 RPM | 13971 lbs. | €917.26 | |
 |
SC-23 | 1 7/16" | 3 7/8" | Polyphenylene Sulfide | Felt Labyrinth Seal | Cartridge, Cylindrical | 1.69" | 4650 RPM | 5782 lbs. | €265.97 | |
 |
SC-32RC | 2" | 4.563" | Polyphenylene Sulfide | Single Lip Contact Seal | Cartridge, Cylindrical | 2.03" | 3550 RPM | 7889 lbs. | €469.99 | |
 |
SC-34C | - | - | - | Single Lip Contact | Setscrew | - | - | - | €614.47 | |
 |
SC-46 | - | - | - | Felt Seal | Setscrew | - | - | - | €4,177.80 | |
 |
SC-47 | 2 15/16" | 6 5/8" | Brass | - | - | 3.06" | 2250 RPM | 14839 lbs. | €974.27 |
