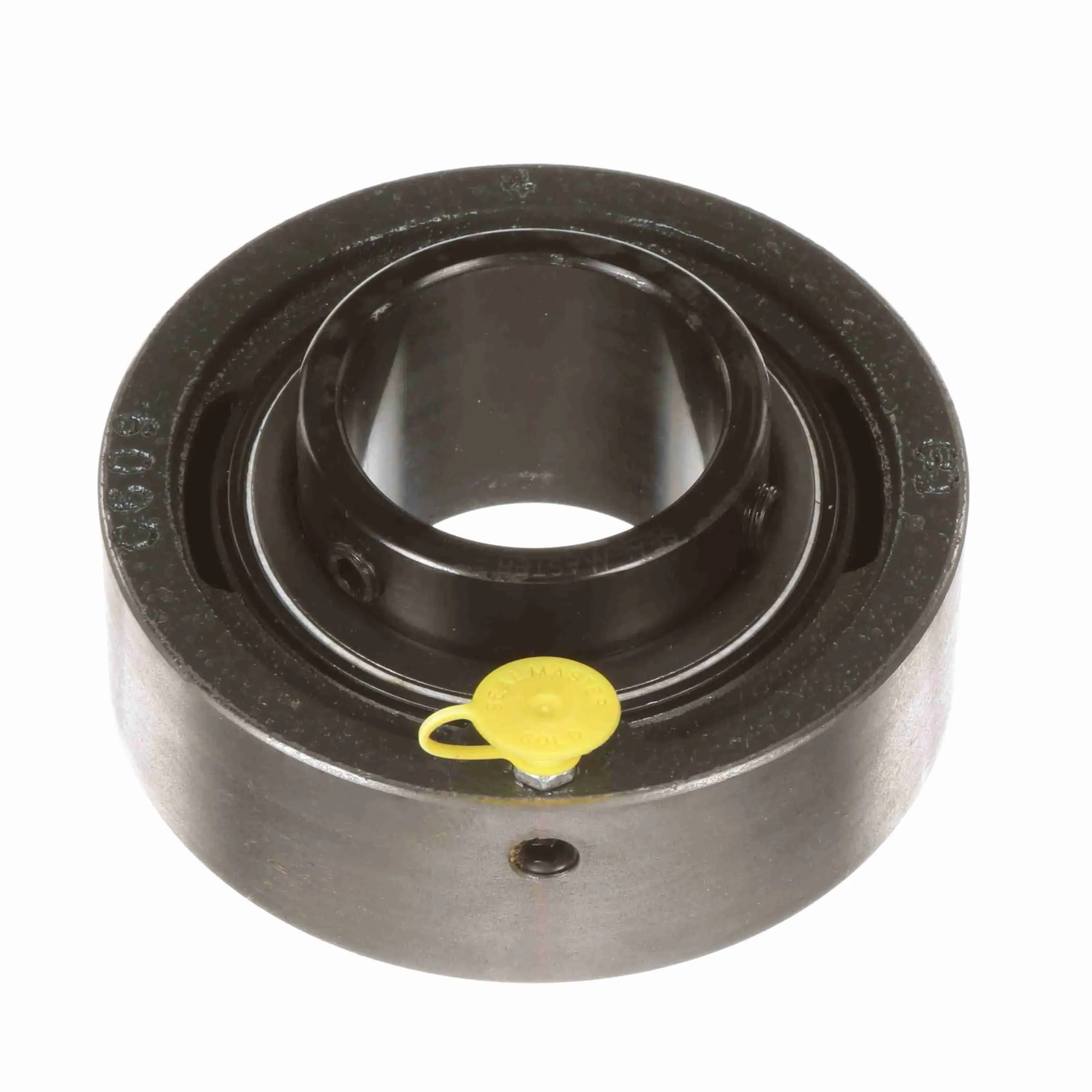

SEALMASTER SC-210 709965 Cylindrical Cartridge Bearing, 50mm Dia, Setscrew Locking, Standard Felt Seal
Get it by Tuesday, Sep 1
€469.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylindrical Cartridge Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 50 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 7/25" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.47" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 5210 |
| Inside Ring Outside Dia. | 2.469" |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 4.563" |
| Overall Height | 4 14/25" |
| Overall Length | 4 14/25" |
| Overall Width | 2.03" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | Sc Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Cage Material | Housing Type | Rolling Element | Max. Operating Temp. | Htc | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SC-43 | - | 2 11/16" | Brass | - | - | - | 8482.10.5056 | Sc Series | €917.26 | |
 |
SC-23 | Felt Labyrinth Seal | 1 7/16" | Polyphenylene Sulfide | Cartridge, Cylindrical | Ball Bearing | 220°F | 8482.10.5052 | Sc Series | €265.97 | |
 |
SC-32RC | Single Lip Contact Seal | 2" | Polyphenylene Sulfide | Cartridge, Cylindrical | Ball Bearing | 220°F | 8482.10.5052 | Sc Series | €469.99 | |
 |
SC-34C | Single Lip Contact | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €614.47 | |
 |
SC-46 | Felt Seal | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €4,177.80 | |
 |
SC-47 | - | 2 15/16" | Brass | - | - | - | 8482.10.5056 | Sc Series | €974.27 | |
 |
SC-26C | Single Lip Contact | - | - | Setscrew | Cylindrical Cartridge | 250°F | - | - | €465.82 |
