SEALMASTER RPBA 207-C2 CR 556929 Pillow Block Bearing, 2 Bolt, 2.43 Inch Bore, 2.75 Inch Base to Center Height
Get it by Friday, Dec 19
€2,517.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 2 3/4" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 8.688" |
| Bolt Center Min | 6.938" |
| Bolt Center-to-center Length | 7.815" |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.313" |
| Collar Outer Dia. | 3.938" |
| Collar Outer Diameter | 3.938" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 9030 lbs. |
| End Cap | No |
| Expansion | No |
| Foot Height | 1.813" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4.13" |
| Housing Color | Silver, Gray |
| Housing Construction | Split Two Piece |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 2 7/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 3.313" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCIA-207C FG1 |
| Internal Clearance | Standard |
| Length | 10 1/2" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 2000 RPM |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 5/8" |
| Overall Length | 10 3/8" |
| Overall Width | 3.31" |
| Platform | Cr Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | RPBA Series |
| Shaft Size | 2 7/16" |
| Width | 5.88" |
Shipping Info:
| Ship weight (kg) | 9.32 |
| Ship height (cm) | 14.94 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 10.49 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Overall Height | Overall Length | Overall Width | Bore Dia. | Shaft Size | Seal Type | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

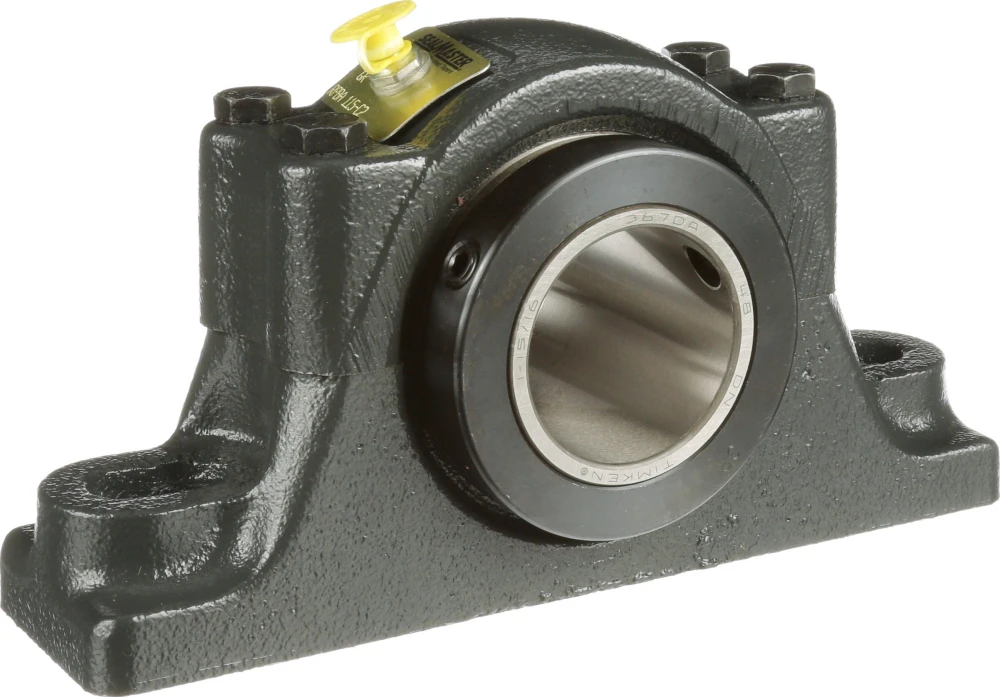

RPBA 303-2 | Pillow Block, Two Bolt | 7 3/4" | 13 3/4" | 4.19" | - | 3 3/16" | Felt | 1500 RPM | €8,246.20 | |
 |
RPBA-106-C2 | - | - | - | - | - | - | - | - | €583.74 | |
 |
RPBA 203-2 | - | 5 1/8" | 9 5/8" | 3.13" | 2 3/16" | 2 3/16" | - | 2500 RPM | €1,834.77 | |
 |

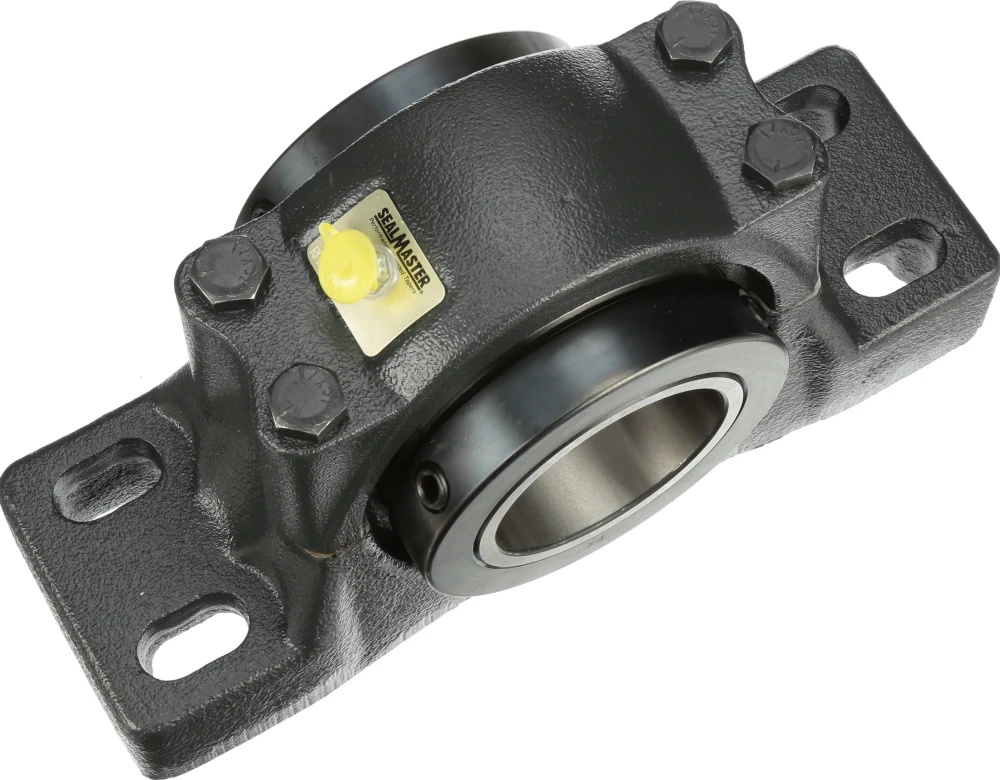

RPBA 307-4 | Pillow Block, Four Bolt | 7 3/4" | 13 3/4" | 4.19" | - | 3 7/16" | Felt | 1500 RPM | €7,925.95 | |
 |
RPBA 303-4 | Four Bolt Pillow Block | - | - | - | - | 3 3/16" | Felt | - | €8,429.42 | |
|
RPBA 211-C4 CR | - | - | - | - | - | - | - | - | €1,688.41 | |
|
RPBA 115-C2 | - | 4 5/8" | 8 7/8" | 2.95" | 1 15/16" | 1 15/16" | - | 2500 RPM | €968.72 |
