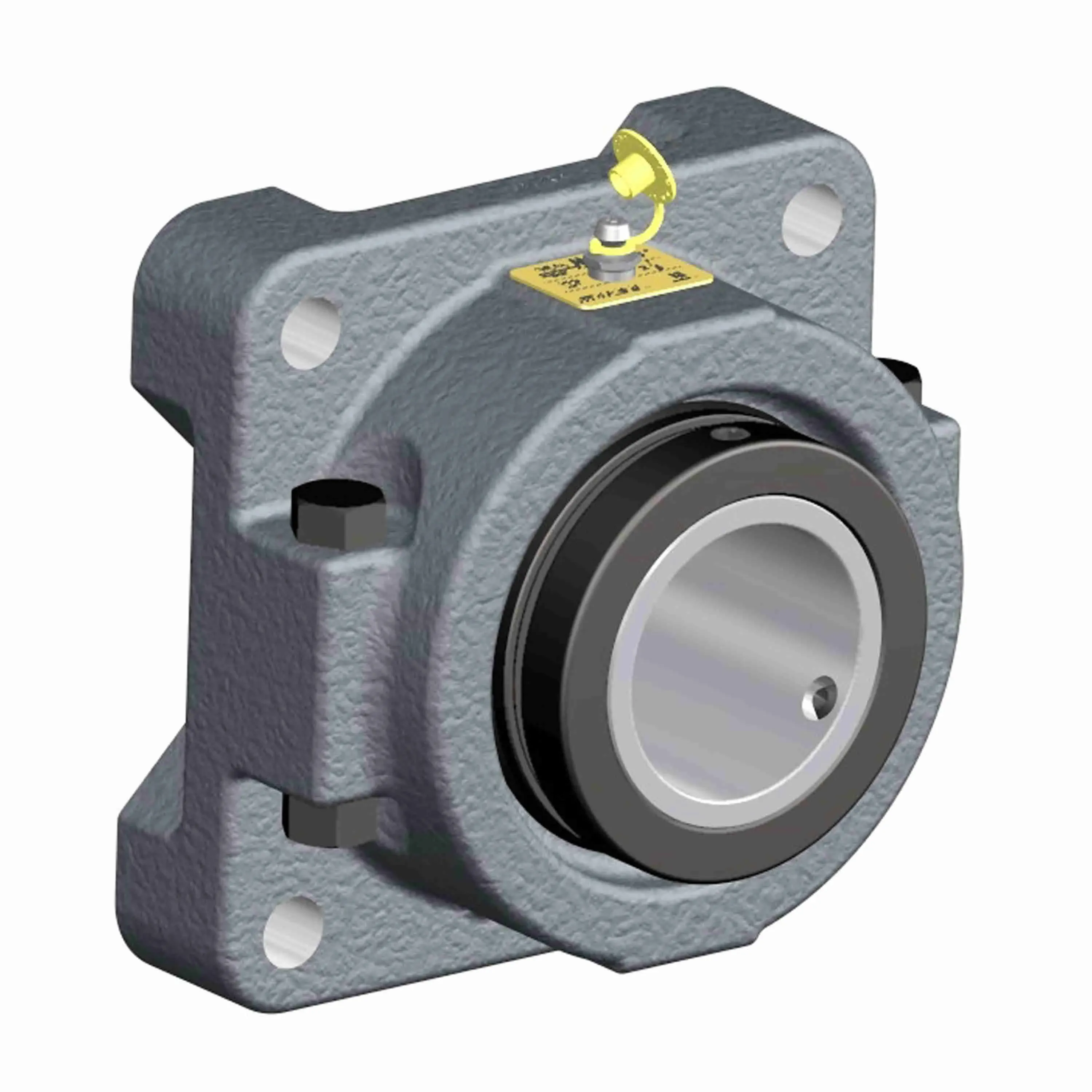

SEALMASTER RFBA 207C 552571 Tapered Roller Bearing, 2-7/16 Inch Bore, 4-Bolt Flange Mount
Get it by Thursday, Aug 27
€2,317.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bolt Center To Center Length | 5 3/8" |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2" |
| Collar Outside Dia. | 3.938" |
| Duty Series | Standard , Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 1/2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4 1/4" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Width | 6 7/8" |
| Htc | 8483.20.4080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 3.313" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCIA-207C |
| Inside Dia. | 2 7/16" |
| Internal Clearance | Standard |
| Length | 7 1/4" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 2000 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.188" |
| Overall Length | 6 7/8" |
| Pilot Configuration | No Pilot |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | RFBA Series |
| Shaft Size | 2 7/16" |
| Width | 7 1/4" |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 10.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Seal Flinger | Shaft Size | Bolt Size | Housing Color | Bearing Insert Finish | Foot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

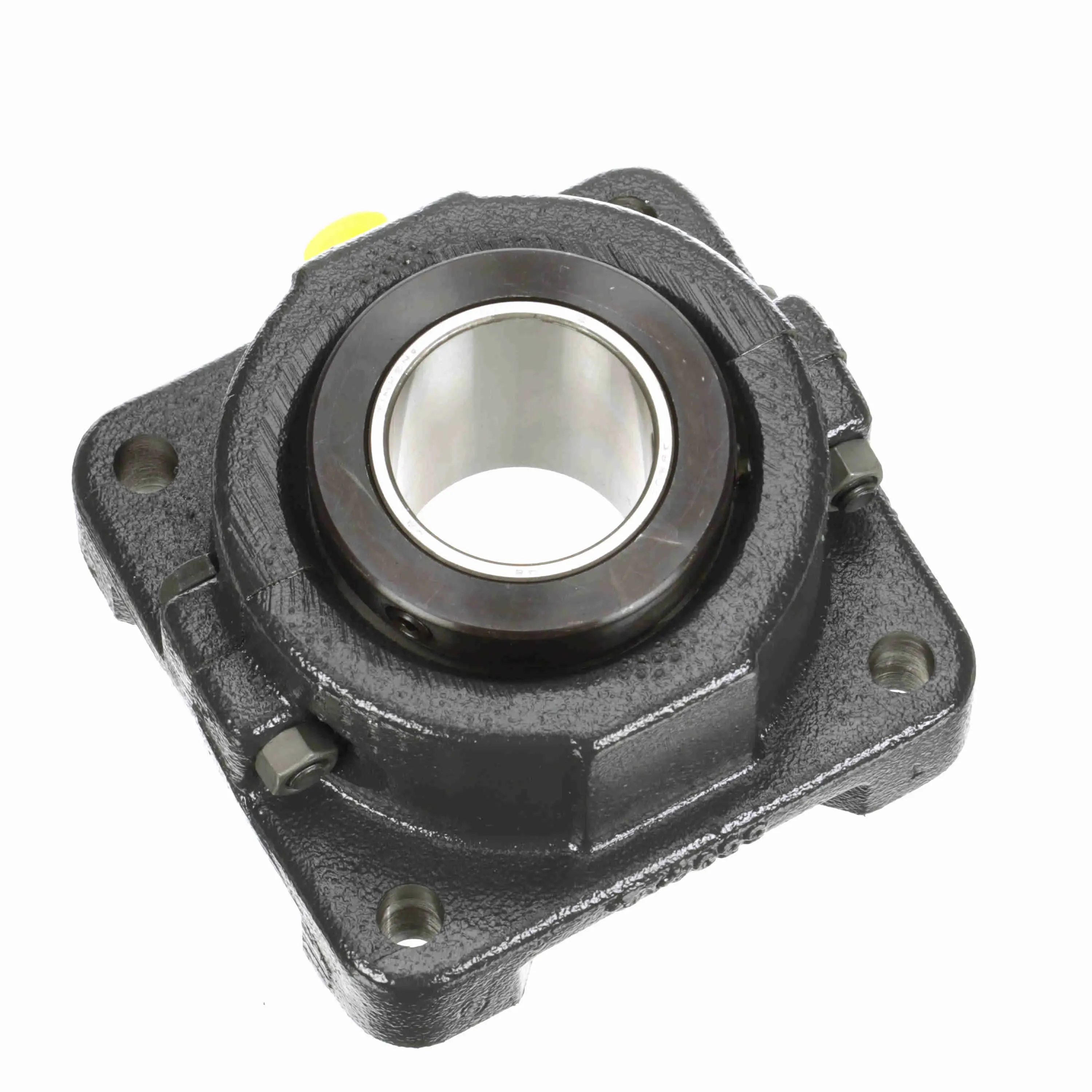

RFBA 200C | 2" | - | No | 2" | 1/2" | Gray | Uncoated | 1.188" | €1,042.26 | |
|
RFBA 203 | 2 3/16" | - | Yes | 2 3/16" | 5/8" | Gray | Uncoated | 1 3/8" | €1,939.58 | |
 |

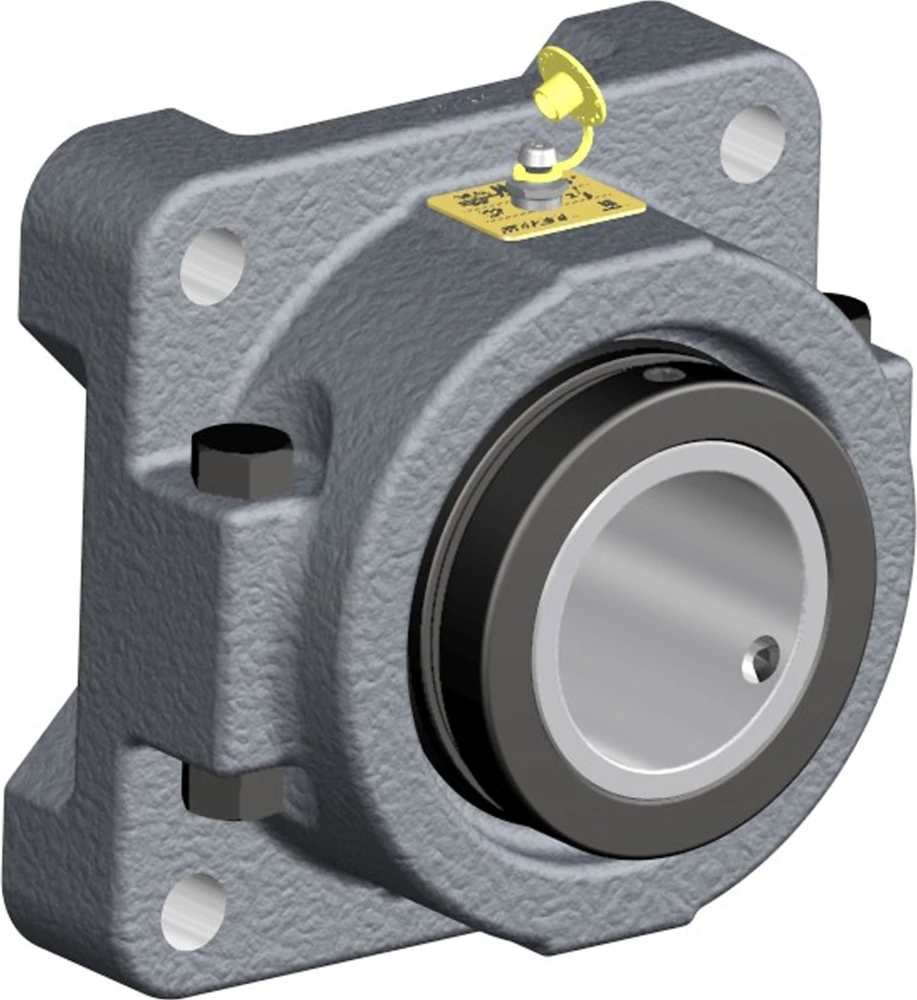

RFBA 212 | 2 3/4" | - | Yes | 2 3/4" | 3/4" | Gray | Black Oxide | 1 5/8" | €3,538.76 | |
 |
RFBA 107 | - | Felt | Yes | 1 7/16" | - | - | - | - | €2,414.59 | |
 |
RFBA 203C | - | Contact | No | 2 3/16" | - | - | - | - | €776.17 | |
 |
RFBA 208 | - | Felt | Yes | 2 1/2" | - | - | - | - | €2,178.86 | |
 |
RFBA 204 | - | Felt | Yes | 2 1/4" | - | - | - | - | €871.93 |
