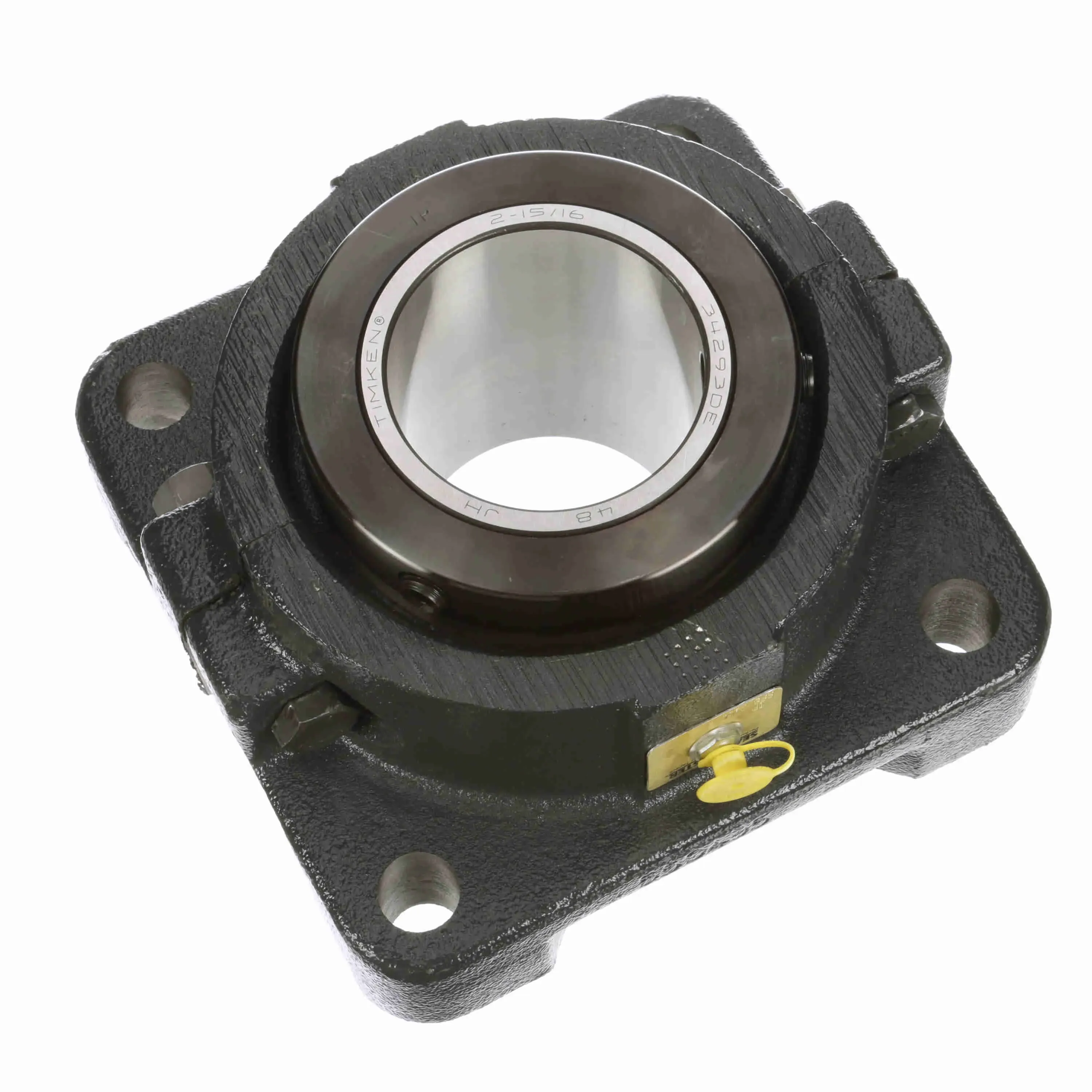

SEALMASTER RFB 215C 559891 Tapered Roller Bearing, 2-15/16 Inch Bore, 4-Bolt Flange Mount
Get it by Tuesday, Sep 1
€1,622.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bolt Center To Center Length | 6" |
| Bolt Size | 3/4" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/4" |
| Collar Outside Dia. | 4 3/4" |
| Duty Series | Standard , Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 5/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 8.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Width | 7 3/4" |
| Htc | 8483.20.4080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4 1/2" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-215C |
| Inside Dia. | 2 15/16" |
| Internal Clearance | Standard |
| Length | 8.88" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.688" |
| Overall Length | 7 3/4" |
| Pilot Configuration | No Pilot |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | Rfb |
| Shaft Size | 2 15/16" |
| Width | 8.88" |
Shipping Info:
| Ship weight (kg) | 15.03 |
| Ship height (cm) | 22.56 |
| Ship length (cm) | 22.56 |
| Ship width (cm) | 21.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Locking Device | Shaft Size | Seal Flinger | Bolt Size | Overall Height | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RFB 108C CR | 1 1/2" | - | Double Set Screw | 1 1/2" | No | 1/2" | 3 1/2" | Silver, Gray | €1,138.93 | |
 |
RFB 400 | 4" | - | Double Set Screw | 4" | Yes | 7/8" | 6 1/2" | Gray | €3,785.27 | |
|
RFB 308 | 3 1/2" | - | Double Set Screw | 3 1/2" | Yes | 3/4" | 5 1/4" | Gray | €2,656.96 | |
|
RFB 211 | 2 11/16" | - | Double Set Screw | 2 11/16" | Yes | 3/4" | 4.688" | Gray | €3,130.15 | |
 |
RFB 104C | 1 1/4" | - | Double Set Screw | 1 1/4" | No | 3/8" | 2.813" | Gray | €1,929.99 | |
 |
RFB 108 | 1 1/2" | - | Double Set Screw | 1 1/2" | Yes | 1/2" | 5 3/8" | Gray | €1,449.94 | |
 |
RFB 307 | 3 7/16" | - | Double Set Screw | 3 7/16" | Yes | 3/4" | 9 1/4" | Gray | €4,541.08 |
