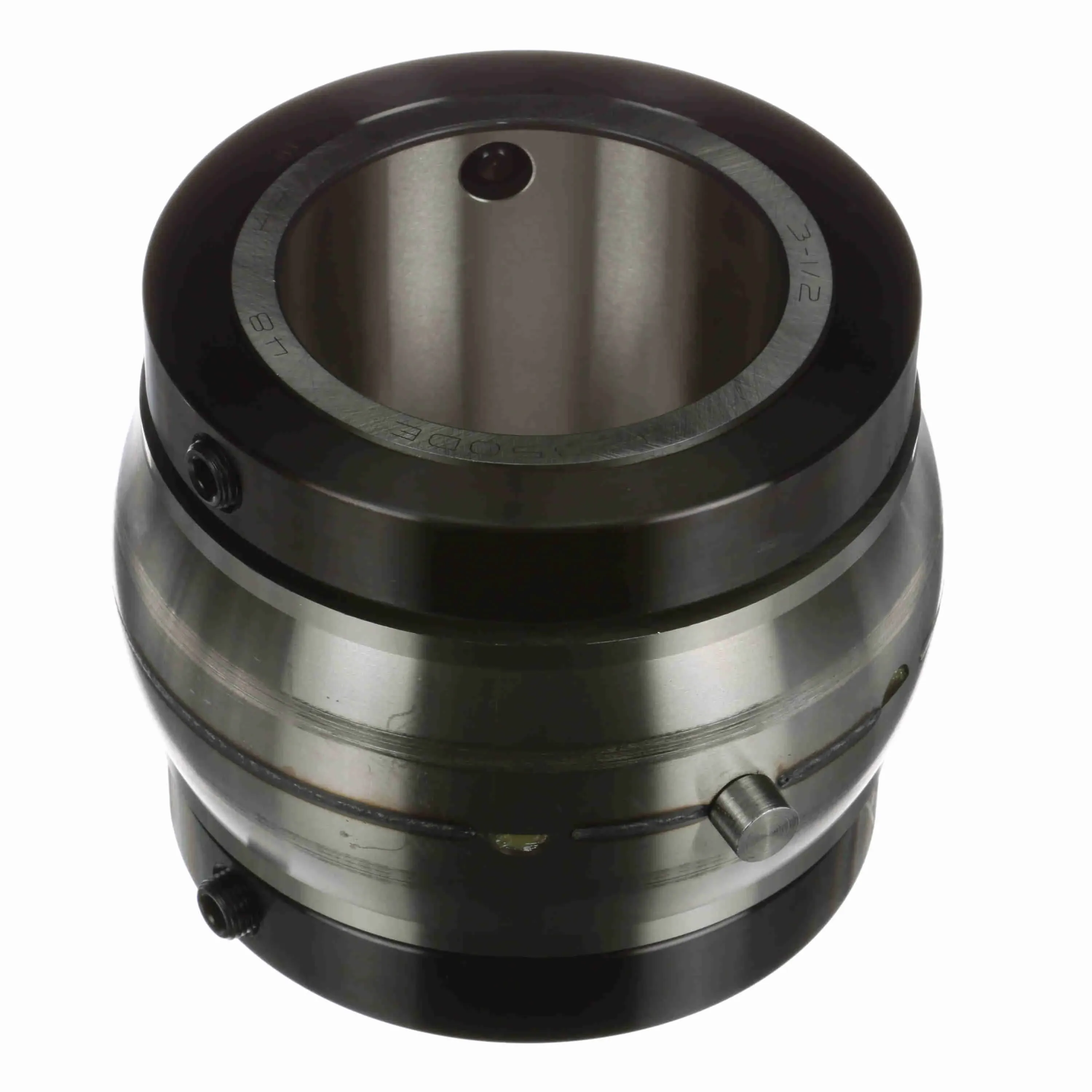

SEALMASTER RCI 308 550117 Tapered Roller Insert Bearing, Taper Roller, 3.5000 Inch Bore Diameter
Get it by Tuesday, Sep 1
€1,987.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bore Dia. | 3 1/2" |
| Bore Shape | Straight |
| Collar Outside Dia. | 5.438" |
| Duty Series | Standard , Standard Series |
| End Cap | No |
| Grade | Grade 52100 |
| Grease Type | Lithium, Ep, Nlgi#2 |
| Height | 7.13" |
| Housing Type | Insert Only |
| Htc | 8482.20.0061 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Inside Dia. | 3 1/2" |
| Internal Clearance | Standard |
| Length | 8 1/4" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1500 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Spherical |
| Outer Race Width | 3" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 6.1" |
| Overall Width | 5" |
| Platform | RPB Series |
| Product Line | Replacement Cartridge Insert |
| Retainer Material | Steel |
| Retainer Type | Metallic |
| Rolling Element | Tapered Roller |
| Seal Flinger | Yes |
| Seal Type | Felt Seal |
| Shaft Size | 3 1/2" |
| Type Of Seal | Felt Labyrinth Seal |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 7.79 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Shaft Size | Seal Flinger | Htc | Outside Race Outside Dia. | Outer Race Width | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RCI 104C | Contact Seal | 1 1/4" | 1 1/4" | No | 8482.20.0040 | 2 1/2" | 1 1/2" | 2.78" | €619.08 | |
 |
RCI 200 | Felt Seal | 2" | 2" | Yes | 8482.20.0040 | 3.687" | 2.1" | 3 1/2" | €790.86 | |
 |
RCI 110C | Contact Seal | - | 1 5/8" | No | - | - | - | - | €567.98 | |
 |
RCI 108 | Felt Seal | 1 1/2" | 1 1/2" | Yes | 8482.20.0040 | 3.437" | 2" | 3.38" | €812.00 | |
 |
RCI 300C | Contact Seal | 3" | 3" | No | 8482.20.0061 | 5" | 2 1/2" | 4 1/2" | €1,571.84 | |
 |
RCI 307 | Felt Seal | 3 7/16" | 3 7/16" | Yes | 8482.20.0061 | 6.1" | 3" | 5" | €1,929.55 | |
 |
RCI 107C | Contact Seal | 1 7/16" | 1 7/16" | No | 8482.20.0040 | 2 7/8" | 1.7" | 3" | €770.04 |
