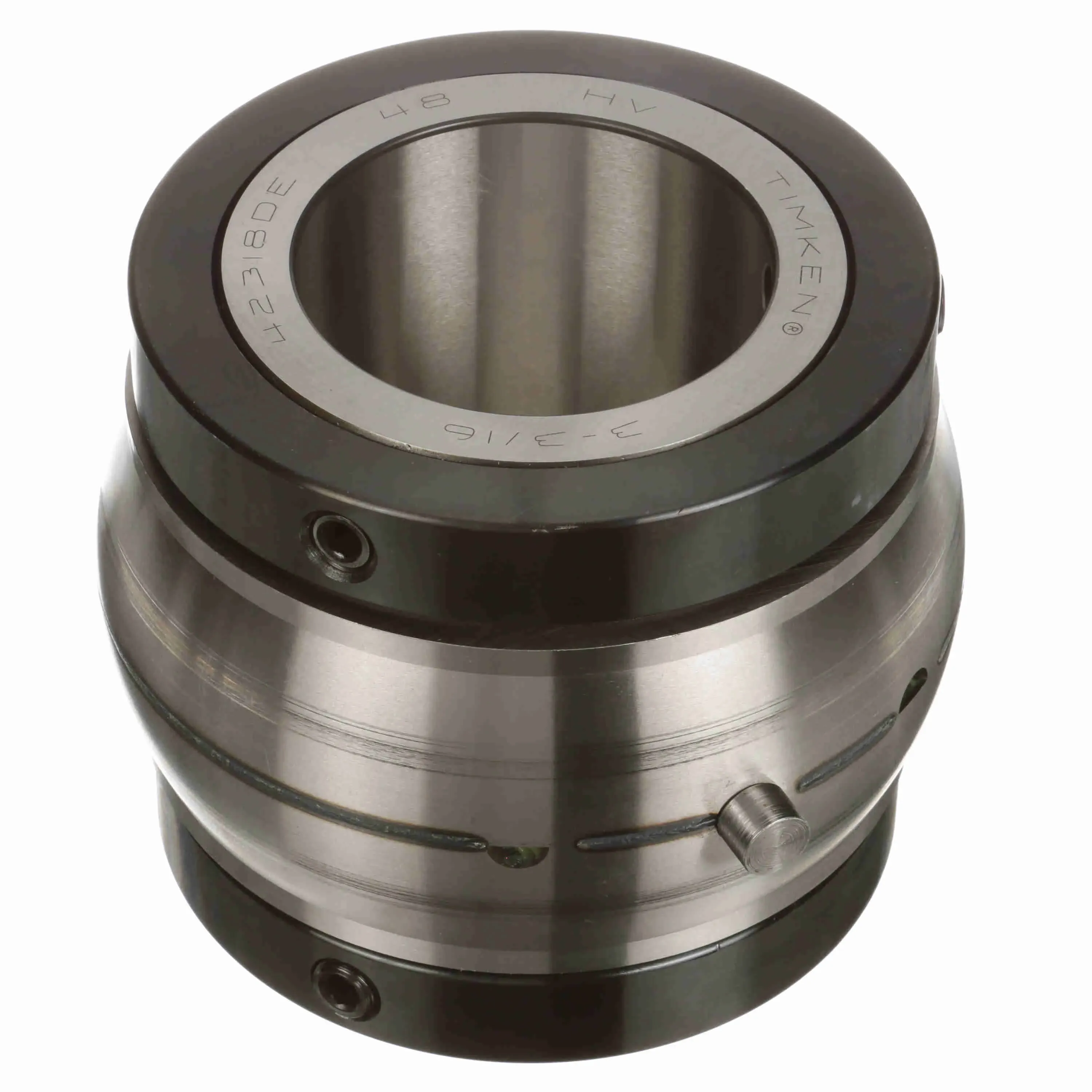

SEALMASTER RCI 303C 550671 Tapered Roller Insert Bearing, Taper Roller, 3.1875 Inch Bore Diameter
Get it by Monday, Dec 22
€2,366.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bore Dia. | 3 3/16" |
| Bore Shape | Straight |
| Collar Outer Dia. | 5.438" |
| Collar Outer Diameter | 5.438" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 15320 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Grade | Grade 52100 |
| Height | 7.13" |
| Housing Type | Insert Only |
| Htc | 8482.20.0061 |
| I.d. | 3 3/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 8 1/4" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1500 RPM |
| Misalignment Type | Static Only |
| Outer Race Od | 6.1" |
| Outer Race Profile | Spherical |
| Outer Race Width | 3" |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 3" |
| Overall Width | 5" |
| Platform | RPB Series |
| Product Line | Replacement Cartridge Insert |
| Retainer Material | Steel |
| Rolling Element | Tapered Roller |
| Seal Type | Contact Seal |
| Shaft Size | 3.188" |
| Type Of Seal | Single Lip Contact Seal |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 8.82 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Seal Type | Max. Speed | Overall Width | Dynamic Radial Load Capacity | Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
RCI 104C | 1 1/4" | - | Contact Seal | 4000 RPM | 2.78" | - | Double Collar Mount | €619.08 | |
 |
RCI 200 | 2" | - | Felt Seal | 2500 RPM | 3 1/2" | - | Double Collar Mount | €790.86 | |
 |
RCI 110C | - | - | Contact Seal | - | - | - | - | €567.98 | |
 |
RCI 108 | 1 1/2" | - | Felt Seal | 3000 RPM | 3.38" | - | Double Collar Mount | €812.00 | |
 |
RCI 300C | 3" | 2 1/2" | Contact Seal | 1750 RPM | 4 1/2" | 9630 lbs. | Double Collar Mount | €1,571.84 | |
 |
RCI 307 | 3 7/16" | - | Felt Seal | 1500 RPM | 5" | - | Double Collar Mount | €1,929.55 | |
 |
RCI 107C | 1 7/16" | - | Contact Seal | 3500 RPM | 3" | - | Double Collar Mount | €770.04 |
