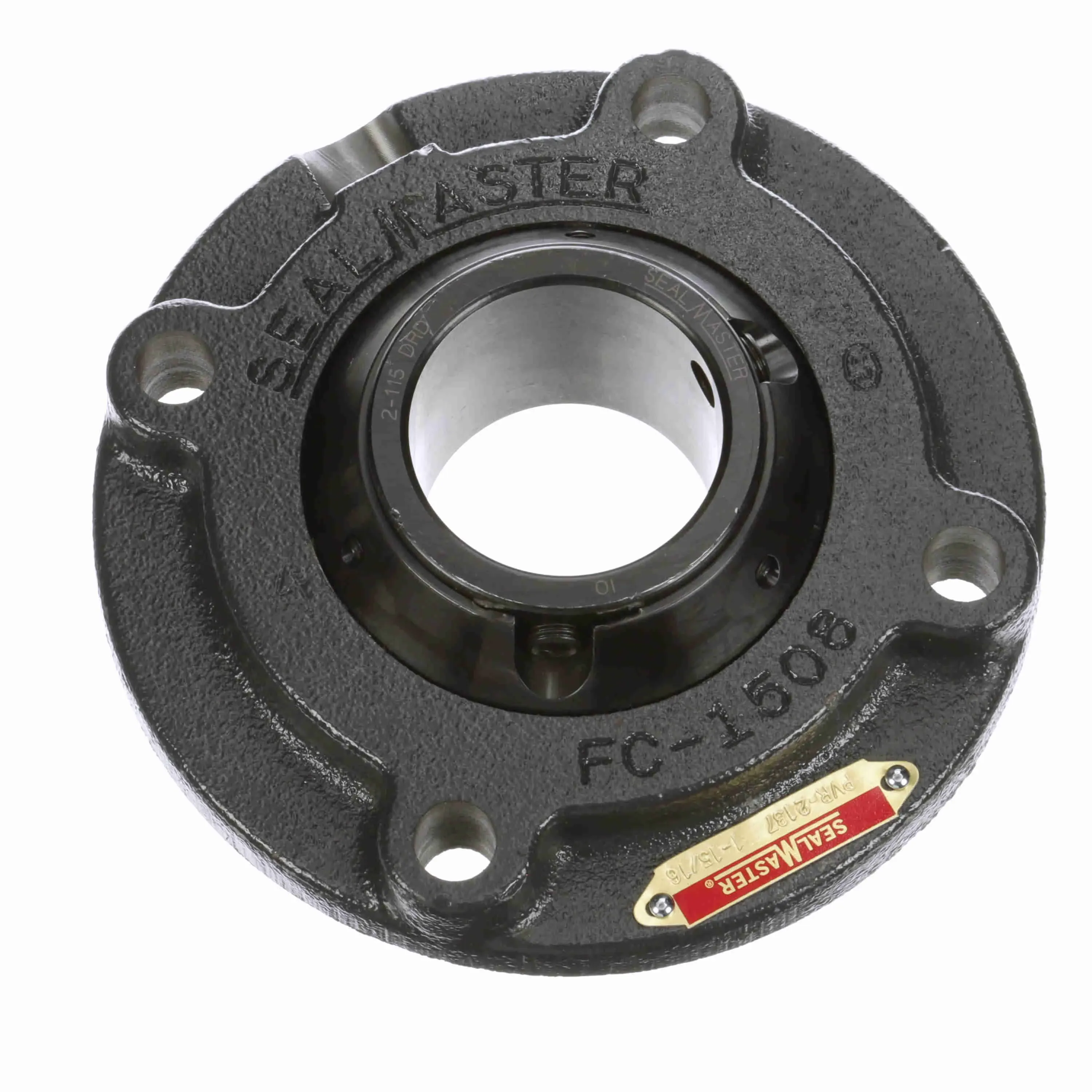

SEALMASTER PVR-2137 710456 Flange Cartridge Ball Bearing, Black Oxided, Setscrew Lock, 1.938 Inch
Get it by Tuesday, Sep 1
€1,246.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Cartridge Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Circle | 5 1/8" |
| Bolt Size | 7/16" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 6.13" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-115 |
| Inside Ring Outside Dia. | 2.469" |
| Length Through Bore | 2.029" |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max. Operating Temp. | 220°F |
| Max. Speed | 325 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.03" |
| Overall Length | 6.13" |
| Overall Width | 6.13" |
| Pilot Configuration | Piloted |
| Pilot Depth | 11/25" |
| Pilot Dia. | 4 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Shipping Info:
| Ship weight (kg) | 3.2 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Length Through Bore | Overall Height | Htc | Overall Width | Dynamic Load Capacity | Size Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PVR-2533 | 2 3/16" | Felt Labyrinth Seal | 2.33" | - | 8483.20.4040 | 5 3/4" | 9752 lbs. | 2-23 | €1,204.02 | |
 |
PVR-1608 | - | - | - | - | 8483.20.4040 | - | - | - | €654.91 | |
|
PVR-1507 | 2" | - | 2 5/16" | - | - | - | - | - | €673.74 | |
 |
PVR-2431 | 2 3/16" | Single Lip Contact Seal | 2.19" | 5 11/25" | 8483.20.4040 | 2.19" | 9752 lbs. | 2-23 | €1,081.08 | |
 |
PVR-3243 | 2 7/16" | - | - | 6 13/16" | 8483.20.4040 | - | - | - | €4,869.33 | |
 |
PVR-1501 | 1 3/4" | Single Lip Contact Seal | 1.934" | 2.047" | 8483.20.4040 | 5.38" | 7901 lbs. | 2-111 | €491.48 | |
|
PVR-1113 | 2 3/16" | - | 2 9/16" | - | - | - | - | - | €1,230.28 |
