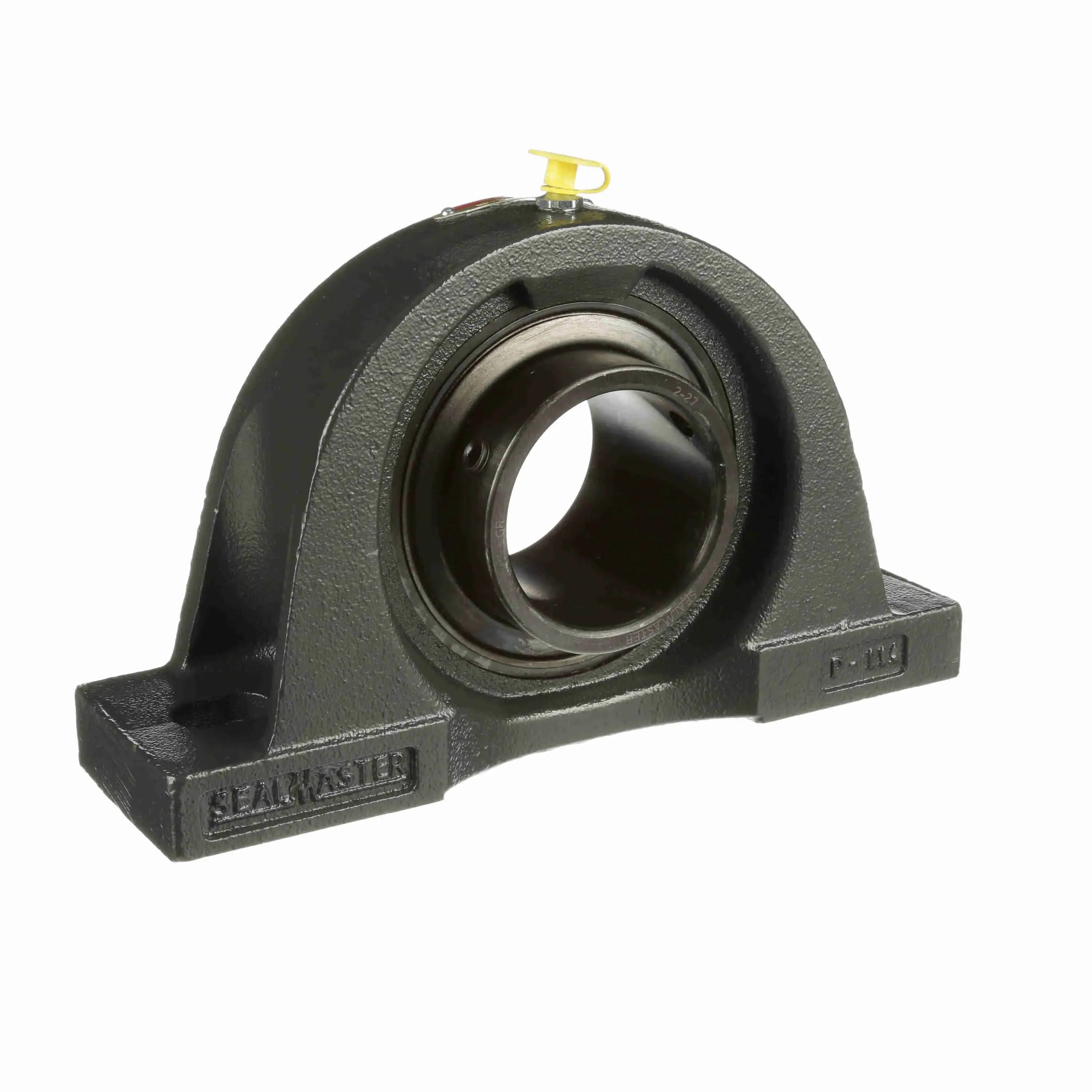

SEALMASTER NP-39 700204 Pillow Block Bearing, 2 7/16 Inch Bore, Cast Iron, Set Screws, 2 3/4 Inch Shaft Ht
Get it by Thursday, Jul 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€718.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 0.88" |
| Base Length | 9 1/2" |
| Base To Center Height | 2 3/4" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.563" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 11789 lbs. |
| Dynamic Radial Load Capacity | 11789 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-27 |
| Inside Ring Outside Dia. | 2.984" |
| Length Through Bore | 2.563" |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 7.63" |
| Max. Misalignment Angle | 2° |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3000 RPM |
| Max. Temp. | 220°F |
| Min. Bolt Spacing | 6 22/25" |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Length | 7 5/8" |
| Mounting Bolt Size | 5/8" |
| Mounting Surface To Shaft Center Height | 2 3/4" |
| Mounting Type | Bolt Through |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 14/25" |
| Overall Length | 9 1/2" |
| Overall Width | 2 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Static Radial Load Capacity | 8150 lbf. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 6.24 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 26.37 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Variants
| Product | Model | Overall Height | Bearing Insert Material | Bore Dia. | Overall Length | Overall Width | Bearing Insert Type | Shaft Locking Type | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | 7" | Alloy, Steel | 2 7/8" | 13" | 3 1/2" | Radial Ball | Set Screw | Pillow Block, Two Bolt | €1,785.96 | |
 |
NP-20 | 3 3/4" | Steel | 1 1/4" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €451.83 | |
 |
NP-31 CXU | 4 14/25" | Steel | 1 15/16" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €245.70 | |
 |
NP-23 CXU | 3 3/4" | Steel | 1 7/16" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €176.72 | |
 |
NP-32RC | 5" | Steel | 2" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €394.97 | |
|
NP-32 CXU | - | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | 5" | Steel | 2 3/16" | 8.63" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €289.44 |
