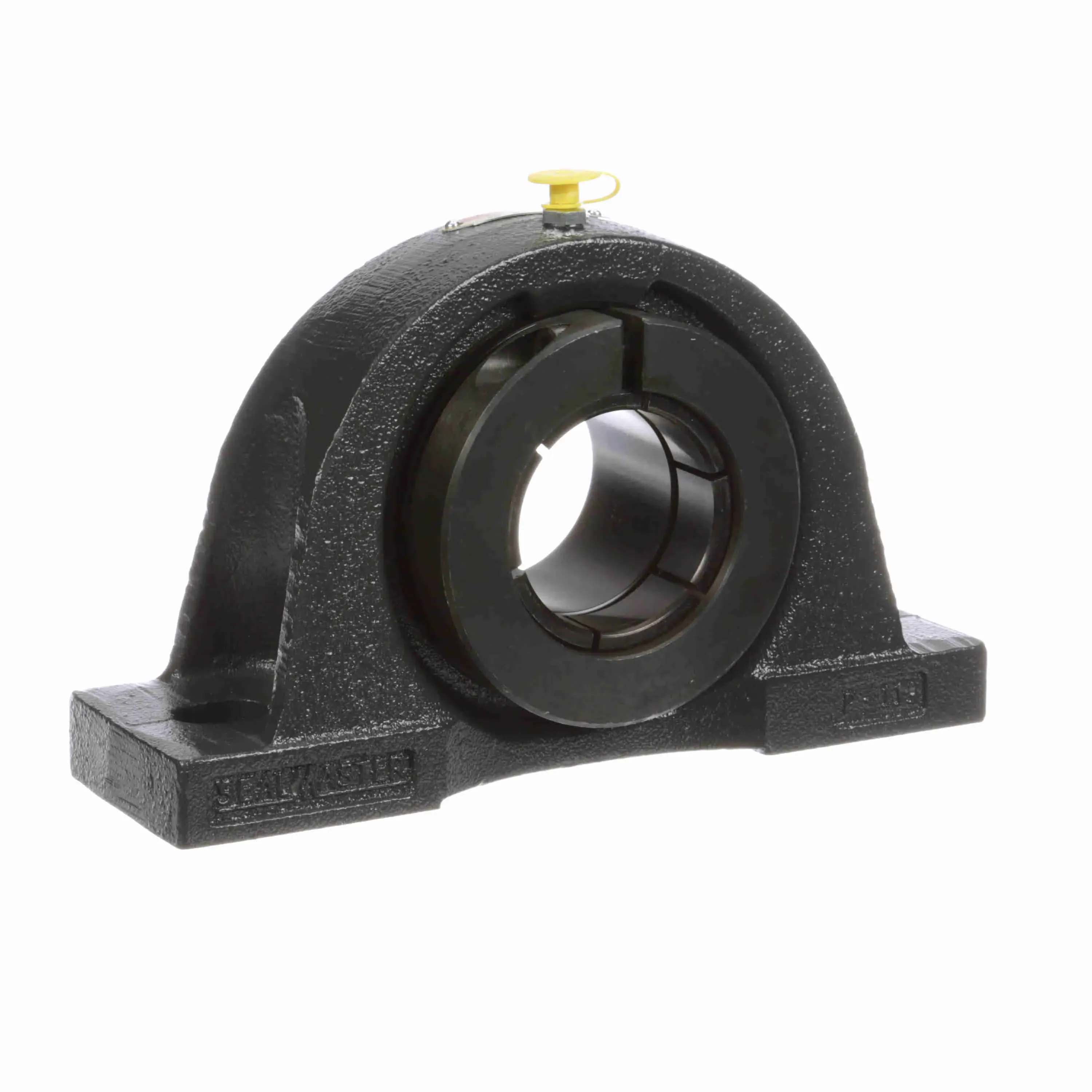

SEALMASTER NP-36T 705388 Pillow Block Bearing, 2 Bolt, 2.25 Inch Bore, Concentric Collar Mount
Get it by Monday, Aug 31
€770.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 9 1/2" |
| Base To Center Height | 2 3/4" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bore Dia. | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.63" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-24T |
| Inside Ring Outside Dia. | 2.984" |
| Length Through Bore | 2.63" |
| Locking Collar Outside Dia. | 4.22" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 7.63" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4100 RPM |
| Min. Bolt Spacing | 6 22/25" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 14/25" |
| Overall Length | 9 1/2" |
| Overall Width | 2 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 495 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 6.71 |
| Ship height (cm) | 26.37 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Housing Material | Overall Width | Base Width | Bore Dia. | Overall Height | Bolt Size | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | Contact | Cast Iron | 3 1/2" | 3.5" | 2 7/8" | 7" | 7/8" | Alloy, Steel | €1,785.96 | |
 |
NP-20 | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 1 1/4" | 3 3/4" | 1/2" | Steel | €451.83 | |
 |
NP-31 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 1 15/16" | 4 14/25" | 5/8" | Steel | €245.70 | |
 |
NP-23 CXU | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 1 7/16" | 3 3/4" | 1/2" | Steel | €176.72 | |
 |
NP-32RC | Single Lip Contact Seal | Cast Iron | 2.38" | 2.38" | 2" | 5" | 5/8" | Steel | €394.97 | |
|
NP-32 CXU | Standard Felt Seal | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 2 3/16" | 5" | 5/8" | Steel | €289.44 |
