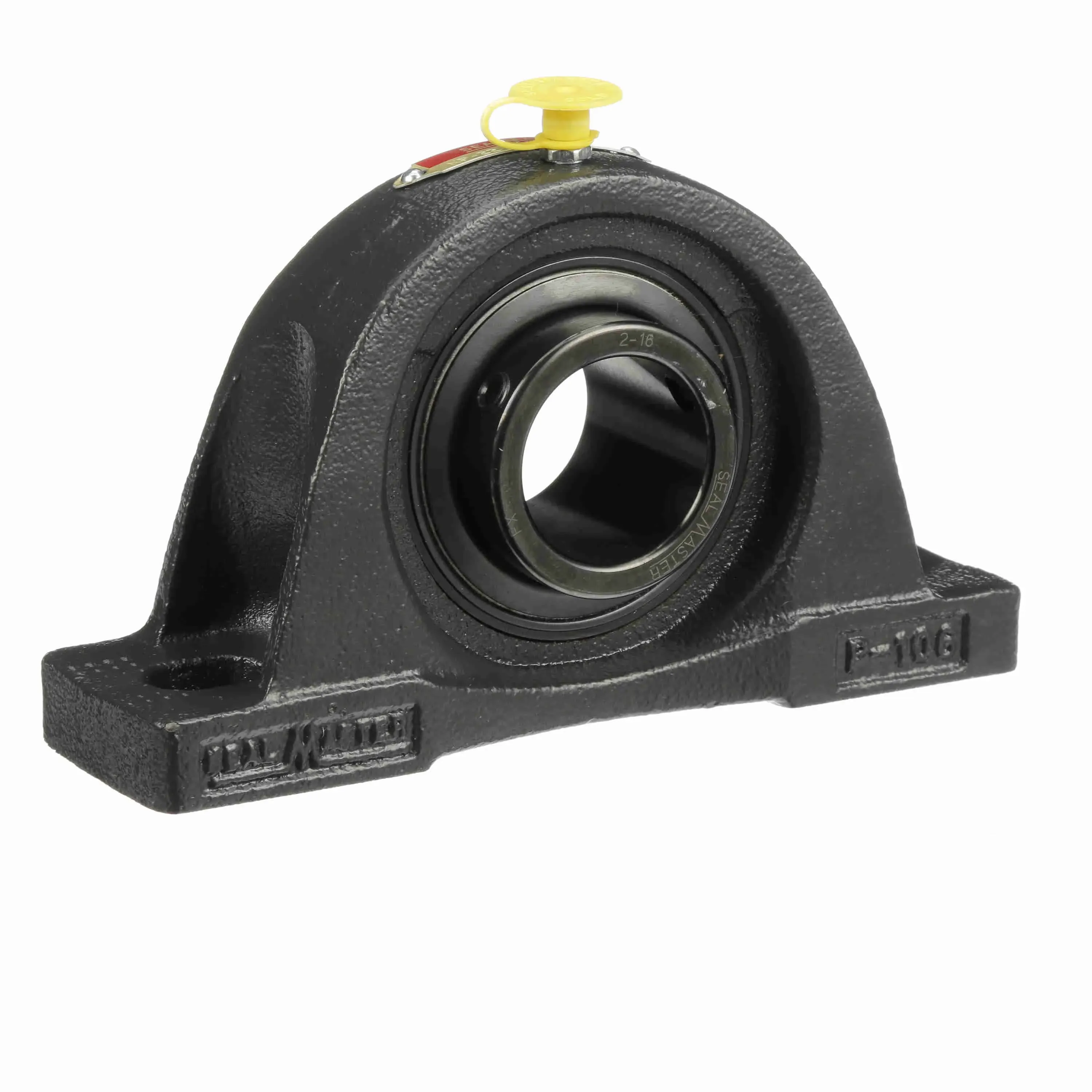

SEALMASTER NP-22 700187 Pillow Block Bearing, 1 3/8 Inch Bore, Cast Iron, Set Screws, 1 7/8 Inch Shaft Height
Item: CU2KXPModel: NP-22Cross Ref: 44A396 / 700187
7 In Stock
Ships within 2 days via
5.00% off
€474.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Height | 0.63" |
| Base Length | 6 14/25" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5" |
| Bore Dia. | 1 3/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1" |
| Closure Type | Double Sealed |
| Dynamic Radial Load Capacity | 5782 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-16 |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Inside Ring Outside Dia. | 1.851" |
| Length Through Bore | 1.685" |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Angular Misalignment | 2° |
| Max. Bolt Spacing | 5.31" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4650 RPM |
| Max. Temp. | 220°F |
| Min. Bolt Spacing | 4.69" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Length | 5.297" |
| Mounting Bolt Size | 1/2" |
| Mounting Surface To Shaft Center Height | 1 7/8" |
| Mounting Type | Bolt Through |
| No. Of Mounting Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 3/4" |
| Overall Length | 6.562" |
| Overall Width | 1 7/8" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Static Radial Load Capacity | 3493 lbf. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.95 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Housing Material | Overall Width | Base Width | Overall Height | Bore Dia. | Bolt Size | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | Contact | Cast Iron | 3 1/2" | 3.5" | 7" | 2 7/8" | 7/8" | Alloy, Steel | €1,785.96 | |
 |
NP-20 | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 3 3/4" | 1 1/4" | 1/2" | Steel | €451.83 | |
 |
NP-31 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 4 14/25" | 1 15/16" | 5/8" | Steel | €245.70 | |
 |
NP-23 CXU | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 3 3/4" | 1 7/16" | 1/2" | Steel | €176.72 | |
 |
NP-32RC | Single Lip Contact Seal | Cast Iron | 2.38" | 2.38" | 5" | 2" | 5/8" | Steel | €394.97 | |
|
NP-32 CXU | Standard Felt Seal | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 5" | 2 3/16" | 5/8" | Steel | €289.44 |
