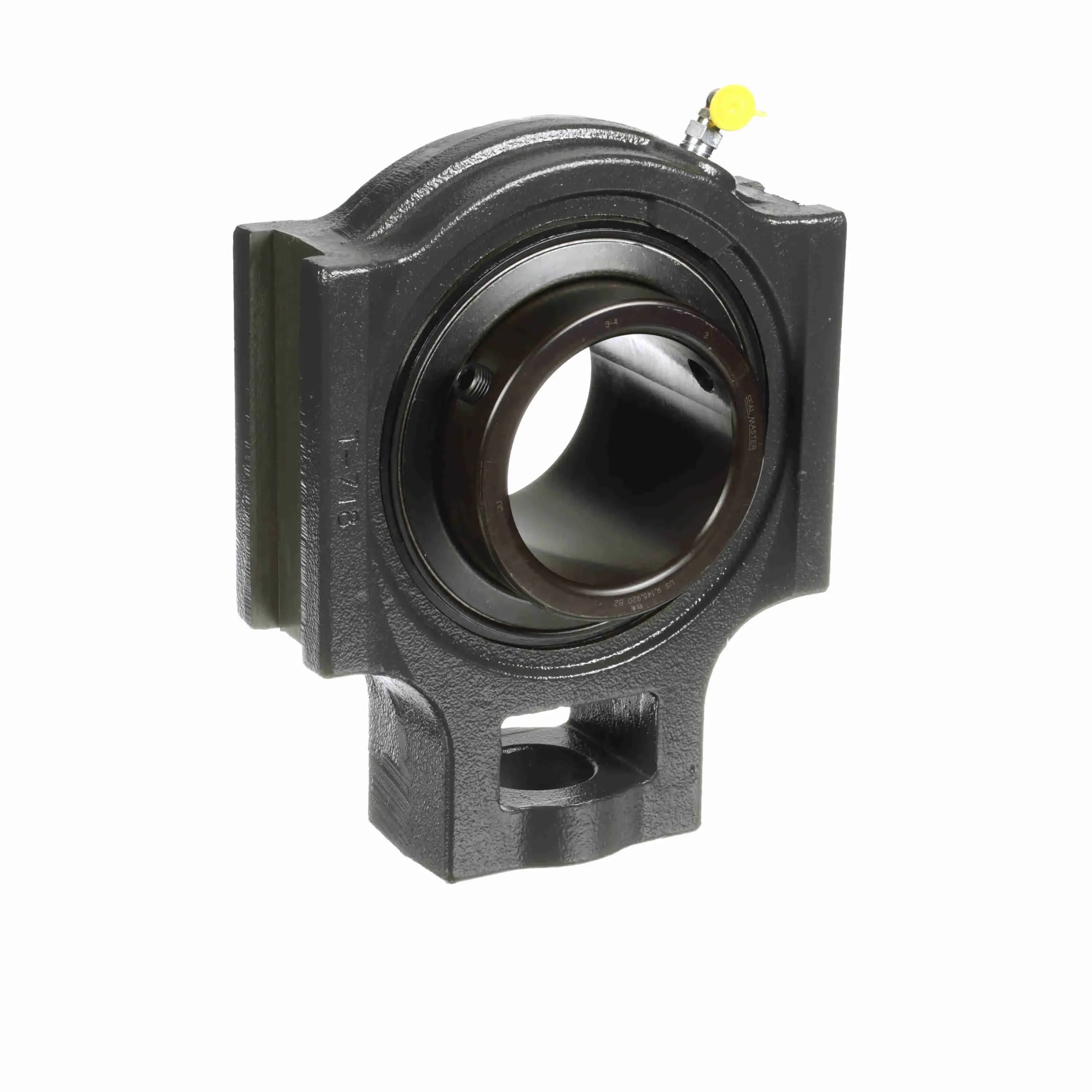

SEALMASTER MST-64 700171 Take-Up Bearing, Radial Ball, Steel Insert, 4 Inch Size Bore, Cast Iron Housing
Get it by Thursday, Dec 18
10.00% off
€5,835.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Take-Up Bearing |
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 1 22/25" |
| Adjusting Screw Square Nut Seat Height | 2 22/25" |
| Base To Center Height | 7.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bore Dia. | 4" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 1 1/2" |
| Centerline To Outermost Bearing Face | 2.683" |
| Compatible Frame | STH 52 THRU 55-12 DZU |
| Dynamic Load Capacity | 29905 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4.88" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 5.17" |
| Inner Ring Outside Diameter | 5.17" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-4 |
| Length | 17 1/4" |
| Length Through Bore | 4.623" |
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1700 RPM |
| Max. Temp. | 220°F |
| Mfr. Series | MST Series |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 9.38" |
| Overall Length | 11.88" |
| Overall Width | 4.63" |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Series | Mst Series |
| Shaft Locking Type | Set Screws |
| Shaft Size | 4" |
| Size Code | 2-43 |
| Slot Length | 6 1/2" |
| Slot Spacing | 8 3/8" |
| Slot Width | 1.813" |
| Static Load Rating | 23553 lbs. |
| Width | 9.88" |
Shipping Info:
| Ship weight (kg) | 21.42 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Overall Width | Overall Length | Bore Dia. | Overall Height | Compatible Frame | Seal Type | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MST-24T | Medium Duty | 2.19" | 5.69" | 1 1/2" | 4.63" | - | Felt Labyrinth Seal | Concentric | €351.49 | |
 |
MST-308 | - | - | - | - | - | - | - | - | €437.56 | |
 |
MST-36 | Radial Ball | 2 3/8" | 7.625" | - | 5 3/4" | Sth 36 Thru 39-12 Dzu | Standard Felt Seal | Set Screws | €1,375.35 | |
|
MST-15 | Radial Ball | 1 3/4" | 8.437" | - | 4" | Sth 17 Thru 19-6 Dzu | Standard Felt Seal | Set Screws | €476.03 | |
 |
MST-310 | Medium Duty | 2 1/4" | 6.81" | 50 mm | 5.81" | - | Felt Labyrinth Seal | Set Screw | €590.36 | |
 |
MST-28 | Medium Duty | 2.19" | 5 22/25" | 1 3/4" | 4.63" | - | Felt Labyrinth Seal | Set Screw | €741.03 | |
 |
MST-315C | - | - | - | - | - | - | Contact Seal | - | €1,061.35 |
