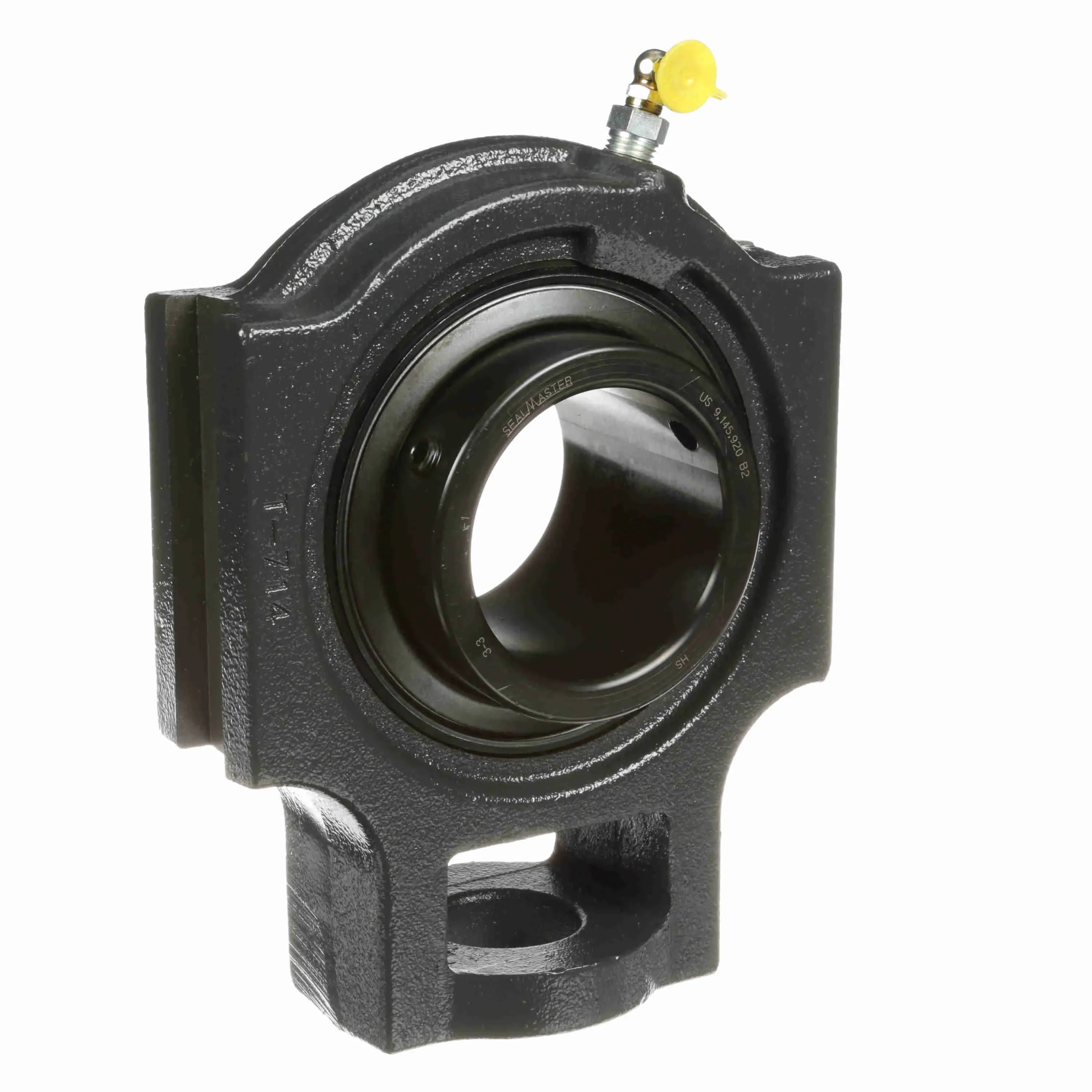

SEALMASTER MST-48 700166 Take-Up Bearing, Radial Ball, Stainless Steel Insert
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,239.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 1.63" |
| Adjusting Screw Square Nut Seat Height | 2 3/4" |
| Base To Center Height | 5 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Type | Medium Duty |
| Bore Dia. | 3" |
| Bore Diameter | 3" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 1 1/4" |
| Centerline To Outermost Bearing Face | 1.938" |
| Compatible Frame | Sth 40 Thru 47-12 Dzu |
| Duty Series | Medium |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | B-Type Seals Or L3 Triple Lip Seals Available For Extra Sealing Needs, Wide Inner Race Bearing With Greater Load Carrying Capacity Than Standard Duty |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 5" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Take Up Block |
| Htc | 8483.20.4040 |
| Included Bearing | Ucx15-48 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.922" |
| Inner Ring Outside Diameter | 3.922" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-3 |
| Length | 10.7" |
| Length Through Bore | 3.248" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2250 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 7 1/4" |
| Overall Length | 9.25" |
| Overall Width | 3 3/8" |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Resistance Properties | Corrosion Resistant |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Series | Mst Series |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3" |
| Size Code | 2-33 |
| Slot Length | 4 3/4" |
| Slot Spacing | 6 1/2" |
| Slot Width | 1.063" |
| Static Load Rating | 13174 lbs. |
| Width | 7.63" |
Shipping Info:
| Ship weight (kg) | 9.74 |
| Ship height (cm) | 19.38 |
| Ship length (cm) | 27.18 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Overall Width | Overall Length | Bore Dia. | Overall Height | Compatible Frame | Seal Type | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MST-23 | Medium Duty | 2 1/8" | 5.687" | 1.438" | - | STH 24 THRU 28-12 DZU | Felt Labyrinth Seal | Set Screws | €683.39 | |
 |
MST-64 | Medium Duty | 4.63" | 11.88" | 4" | 9.38" | STH 52 THRU 55-12 DZU | - | Set Screws | €6,483.37 | |
 |
MST-15 | Radial Ball | 1 3/4" | 8.437" | - | 4" | Sth 17 Thru 19-6 Dzu | Standard Felt Seal | Set Screws | €476.03 | |
 |
MST-16 | Medium Duty | 1 3/4" | 4 11/25" | 1" | 4" | Sth 17 Thru 19-6 Dzu | Felt Labyrinth Seal | Set Screw | €458.54 | |
 |
MST-16C | - | - | - | - | - | - | - | - | €236.77 | |
 |
MST-19 | Medium Duty | 1 3/4" | 5.06" | 1 3/16" | 4" | Sth 20 Thru 23-12 Dzu | Felt Labyrinth Seal | Set Screw | €600.40 | |
|
MST-19C | Medium Duty | 1 3/4" | 5.06" | 1 3/16" | 4" | - | Single Lip Contact Seal | Set Screw | €279.16 |
