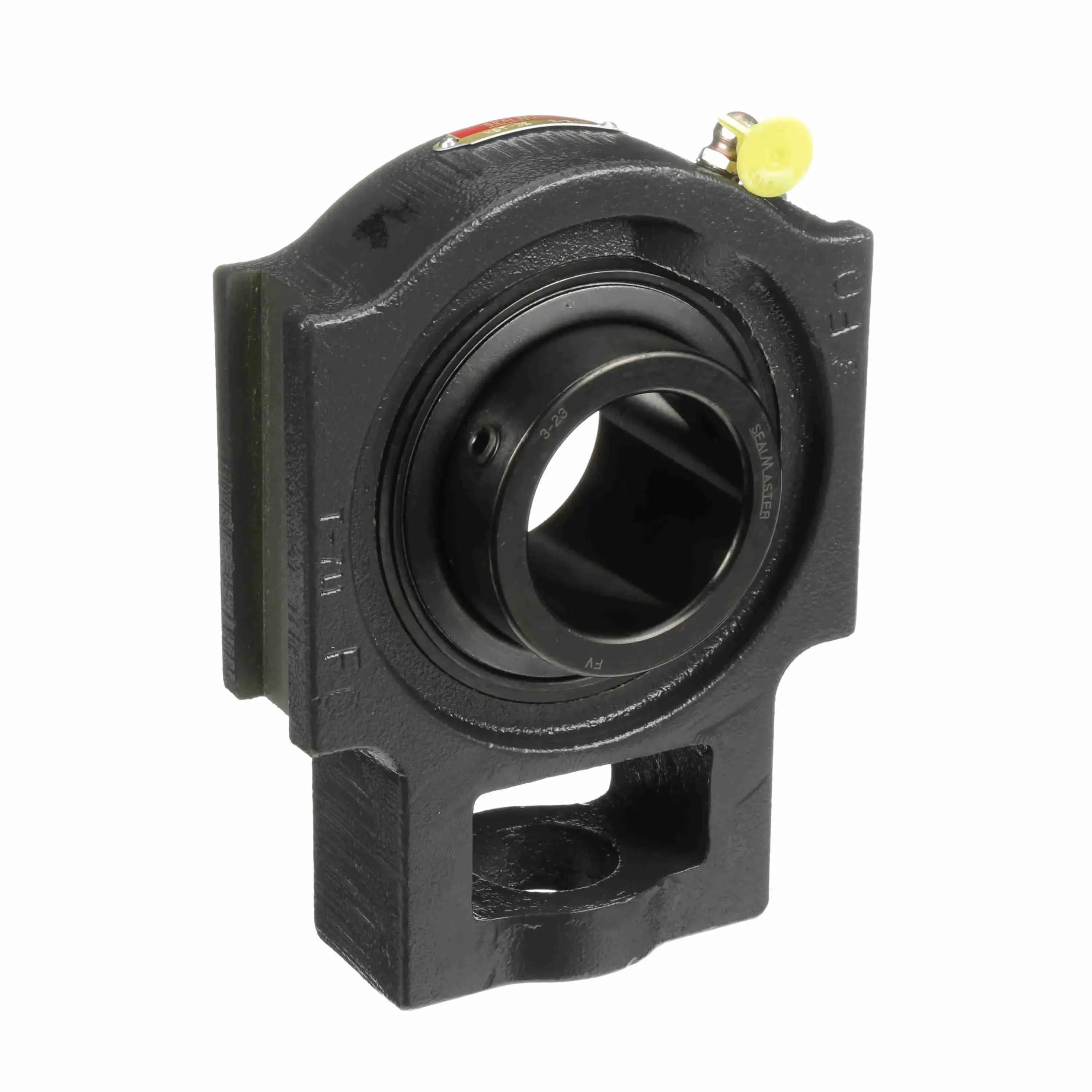

SEALMASTER MST-35 700160 Take-Up Bearing, Radial Ball, Stainless Steel Insert
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€839.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 1.38" |
| Adjusting Screw Square Nut Seat Height | 2 1/2" |
| Base To Center Height | 4.69" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bore Dia. | 2 3/16" |
| Bore Diameter | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 1 1/4" |
| Centerline To Outermost Bearing Face | 1.563" |
| Compatible Frame | Sth 36 Thru 39-12 Dzu |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | B-Type Seals Or L3 Triple Lip Seals Available For Extra Sealing Needs, Wide Inner Race Bearing With Greater Load Carrying Capacity Than Standard Duty |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Block |
| Housing Type | Take Up Block, Wide Slot |
| Htc | 8483.20.4040 |
| Included Bearing | Ucx11-35 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 2.981" |
| Insert | 3-23 |
| Length Through Bore | 2.559" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 3/4" |
| Overall Length | 7.63" |
| Overall Width | 2 14/25" |
| Radial Clearance | Standard |
| Resistance Properties | Corrosion Resistant |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | Mst Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Slot Length | 4" |
| Slot Spacing | 5 1/8" |
| Slot Width | 1.063" |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 5.33 |
| Ship height (cm) | 15.09 |
| Ship length (cm) | 22.56 |
| Ship width (cm) | 6.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Overall Width | Overall Length | Bore Dia. | Overall Height | Compatible Frame | Seal Type | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MST-24T | Medium Duty | 2.19" | 5.69" | 1 1/2" | 4.63" | - | Felt Labyrinth Seal | Concentric | €351.49 | |
 |
MST-308 | - | - | - | - | - | - | - | - | €437.56 | |
 |
MST-36 | Radial Ball | 2 3/8" | 7.625" | - | 5 3/4" | Sth 36 Thru 39-12 Dzu | Standard Felt Seal | Set Screws | €1,375.35 | |
|
MST-15 | Radial Ball | 1 3/4" | 8.437" | - | 4" | Sth 17 Thru 19-6 Dzu | Standard Felt Seal | Set Screws | €476.03 | |
 |
MST-310 | Medium Duty | 2 1/4" | 6.81" | 50 mm | 5.81" | - | Felt Labyrinth Seal | Set Screw | €590.36 | |
 |
MST-28 | Medium Duty | 2.19" | 5 22/25" | 1 3/4" | 4.63" | - | Felt Labyrinth Seal | Set Screw | €741.03 | |
 |
MST-315C | - | - | - | - | - | - | Contact Seal | - | €1,061.35 |
