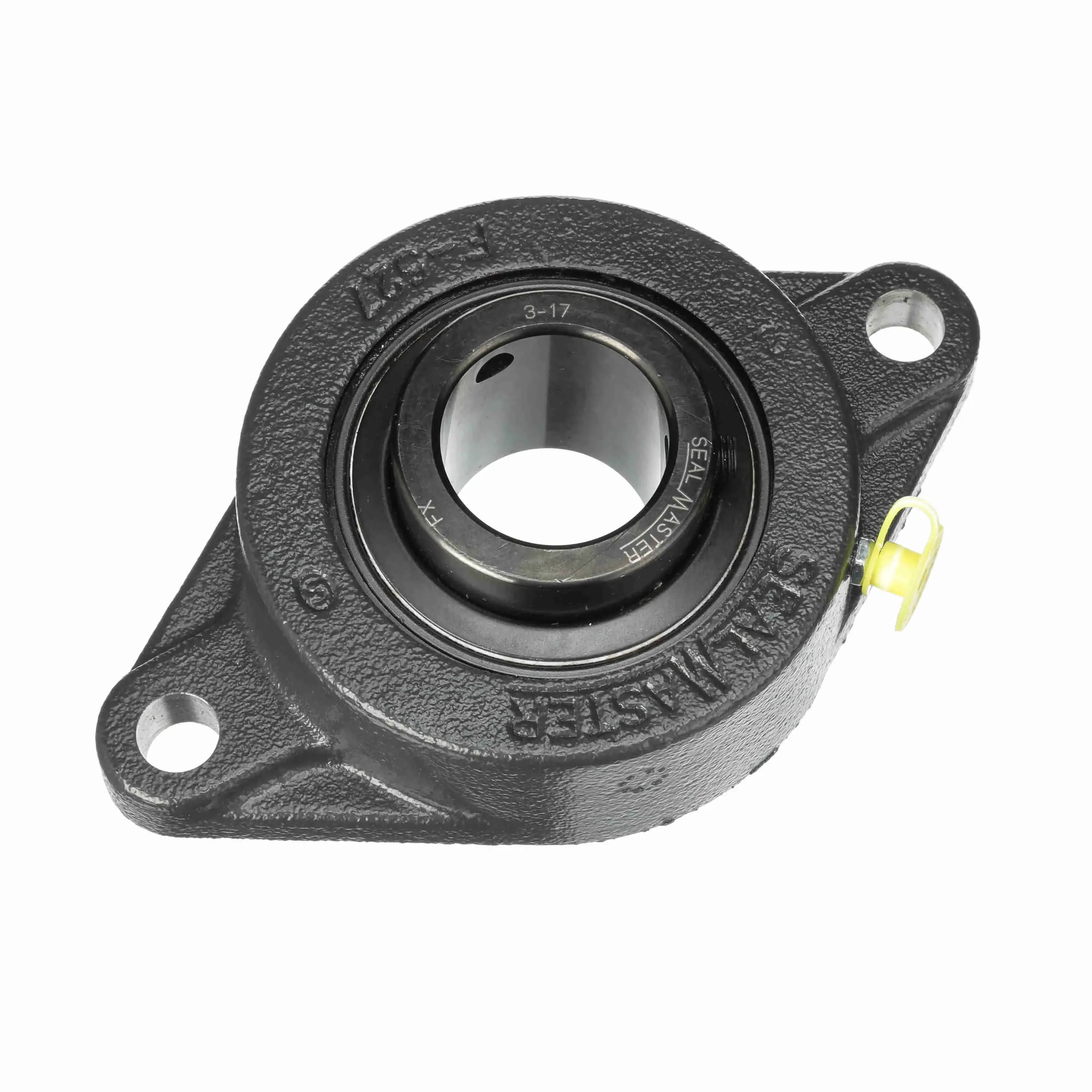

SEALMASTER MSFT-23 700133 Flange Bearing, 2 Bolt, 1-7/16 Inch Bore, Cast Iron, Concentric Collar, 2 Inch Wide
Item: BD8FUVModel: MSFT-23Cross Ref: 44A377 / 700133
7 In Stock
Ships within 2 days via
5.00% off
€516.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.828" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Size | 1/2" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 7340 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 9/16" |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 6.81" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Included Bearing | UCX07-23 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-17 |
| Inside Ring Outside Dia. | 2.063" |
| Length | 4.38" |
| Length Through Bore | 1.938" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4150 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 5 21/32" |
| Mount Hole Center To Center Length | 5 21/32" |
| Mount Hole Size | 33/64" |
| Mounting Bolt Size | 7/16" |
| No. Links/ft. | 0 |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 15/16" |
| Overall Length | 6 7/8" |
| Overall Width | 2" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element Rows | 1 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Concentric Collar |
| Shaft Size | 1 7/16" |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Static Radial Load Capacity | 4467 lbf. |
| Width | 2.06" |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Rolling Element | Bolt Size | Overall Height | Foot Height | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFT-31 | Felt Labyrinth Seal | 1 15/16" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €812.00 | |
 |
MSFT-23C | - | 1 7/16" | - | - | 1/2" | 2.016" | 14/25" | 1.938" | €298.65 | |
 |
MSFT-32 | Felt Labyrinth Seal | 2" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €823.45 | |
 |
MSFT-15 | Felt Labyrinth Seal | 15/16" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | - | RFQ
|
 |
MSFT-20 | - | 1 1/4" | - | - | 1/2" | 3 17/32" | 14/25" | 1.688" | €556.96 | |
 |
MSFT-16C | Single Lip Contact Seal | 1" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | €179.70 | |
 |
MSFT-24 | Felt Labyrinth Seal | 1 1/2" | Flange, Two Bolt | Ball Bearing | 9/16" | 2.047" | 14/25" | 1.938" | €668.52 |
