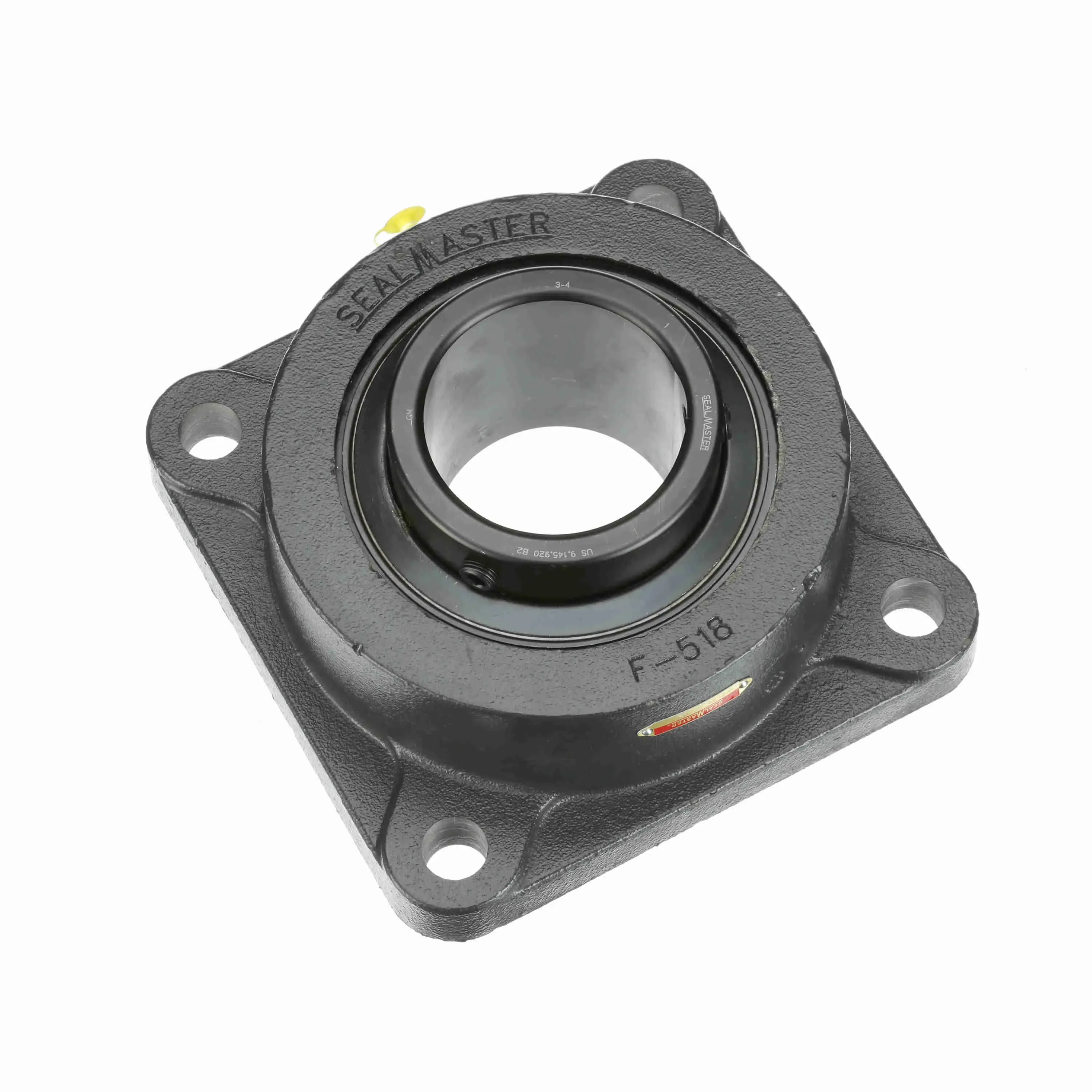

SEALMASTER MSF-64 701969 Flange Bearing, 4 Bolt, 4 Inch Bore, Cast Iron, Set Screws, 10 9/16 Inch Length
Get it by Monday, Aug 24
5.00% off
€4,747.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 2.328" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Size | 1" |
| Bore Dia. | 4" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 29905 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 1 1/4" |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 6.63" |
| Housing Backside Inside Dia. | 7.44" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Included Bearing | Ucx20-64 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-4 |
| Insert Material | Steel |
| Inside Ring Outside Dia. | 5.172" |
| Length | 11" |
| Length Through Bore | 4 5/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 1700 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 8 1/8" |
| Mount Hole Center To Center Length | 8 1/8" |
| Mount Hole Size | 1.21875" |
| Mounting Bolt Size | 1" |
| No. Links/ft. | 0 |
| No. Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 10 9/16" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Shaft Size | 4" |
| Size Code | 2-43 |
| Static Load Rating | 23553 lbs. |
| Static Radial Load Capacity | 23553 lbf. |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 24.9 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Max. Operating Temp. | Length Through Bore | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | Steel | 11789 lbs. | 220°F | 2.984" | Black | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | Steel | 7901 lbs. | 220°F | 1.934" | Black | €638.96 | |
 |
MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | Steel | 9752 lbs. | 220°F | 2.33" | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | - | - | 250°F | - | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | Steel | 17412 lbs. | 250°F | 3 1/4" | Black | €912.29 | |
 |
MSF-39C | 2 7/16" | - | 3" | Steel | 13971 lbs. | - | 2.748" | Black | €687.81 | |
 |
MSF-47C | 2 15/16" | - | 3 1/2" | Steel | 17412 lbs. | - | 3 1/4" | Black | €912.92 |
