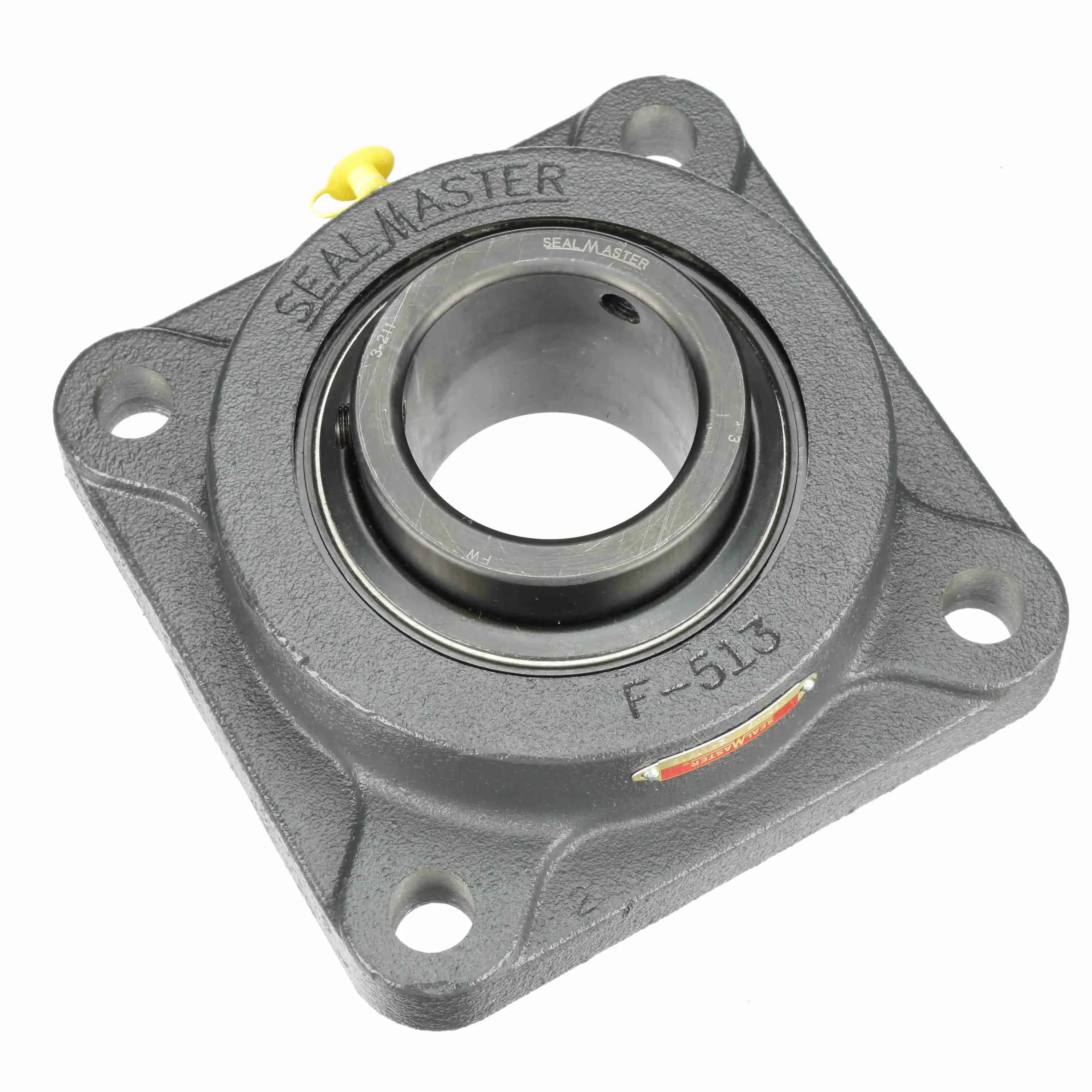

SEALMASTER MSF-43 701961 Flange Bearing, 4 Bolt, 2 11/16 Inch Bore, Cast Iron, Set Screws, 7 3/4 Inch Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,261.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bearing |
| Ability To Relubricate | Yes |
| Back Side To Center Width | 1 5/8" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing | 6" |
| Bore Dia. | 2.688" |
| Bore Diameter | 2 11/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 1" |
| Foot Height | 1" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3 1/2" |
| Housing Backside Inner Diameter | 5.88" |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included Bearing | UCX14-43 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.644" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-211 |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Length | 8.13" |
| Length Through Bore | 3.06" |
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2450 RPM |
| Max. Temp. | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 6" |
| Mount Hole Center-to-center Length | 6" |
| Mount Hole Size | 25/32" |
| Mounting Bolt Size | 11/16" |
| Number Of Mounting Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.188" |
| Overall Length | 7 3/4" |
| Overall Width | 7 3/4" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screws |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Static Radial Load Capacity | 11224 lbf. |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 8.57 |
| Ship height (cm) | 20.17 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Cast Iron | - | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Cast Iron | - | €638.96 | |
 |
MSF-31T | 1 15/16" | Cast Iron | - | €367.98 | |
 |
MSF-39 CPJ | - | Cast Iron | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Cast Iron | - | €912.29 | |
 |
MSF-48 W | - | - | - | €1,837.00 | |
 |
MSF-39C | 2 7/16" | Cast Iron | - | €687.81 |
