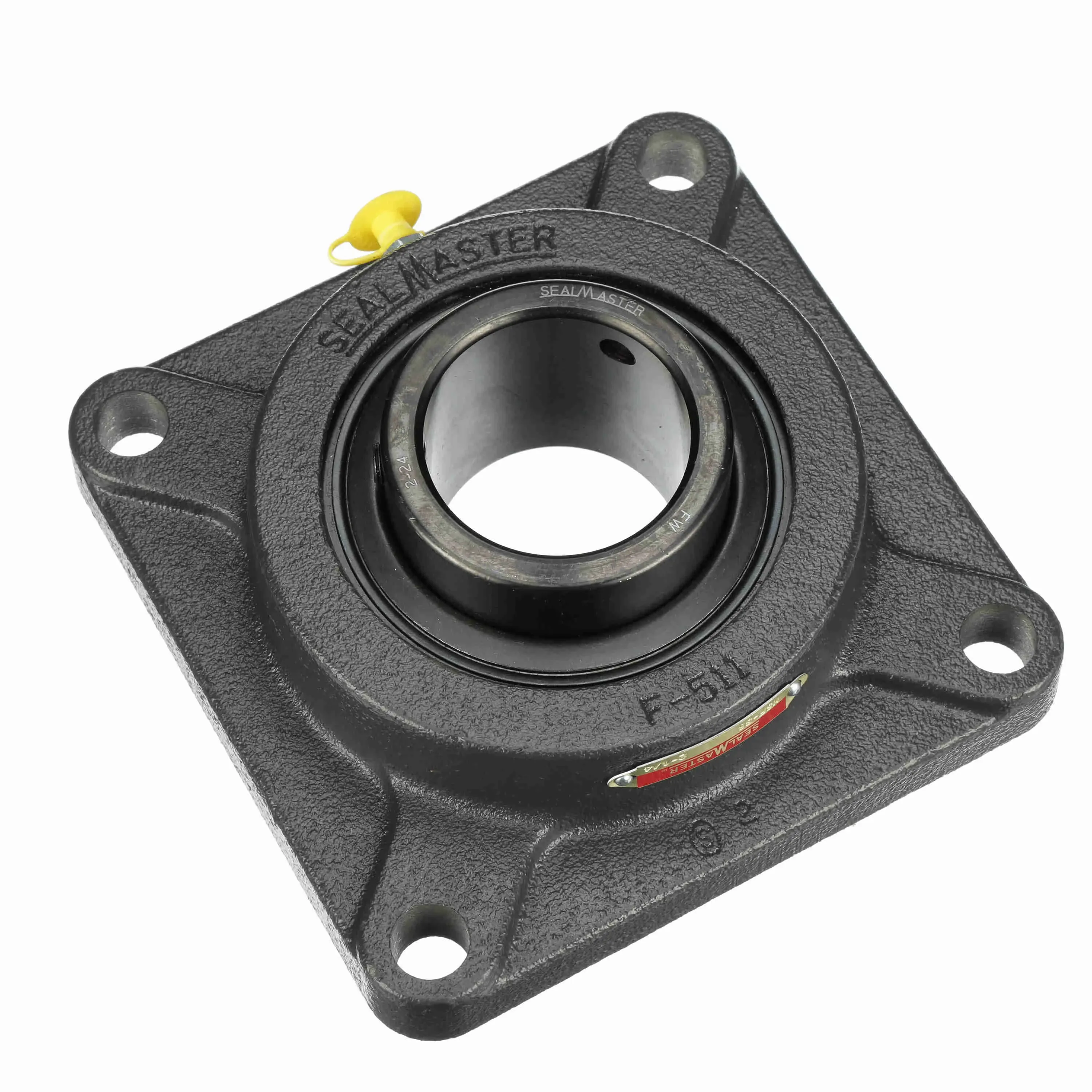

SEALMASTER MSF-36 701955 Flange Bearing, 4 Bolt, 2 1/4 Inch Bore, Cast Iron, Set Screws, 6 7/8 Inch Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,085.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 1.14" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bolt Spacing | 5 5/8" |
| Bore Dia. | 2 1/4" |
| Bore Diameter | 2 1/4" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 13/16" |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 5" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Included Bearing | UC212-36 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 2.981" |
| Insert | 2-24 |
| Length Through Bore | 2.559" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 5 5/8" |
| Mount Hole Center-to-center Length | 5 5/8" |
| Mount Hole Size | 43/64" |
| Mounting Bolt Size | 5/8" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.688" |
| Overall Length | 6 22/25" |
| Overall Width | 6 22/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Static Radial Load Capacity | 8150 lbf. |
Shipping Info:
| Ship weight (kg) | 5.28 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 8.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Cast Iron | - | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Cast Iron | - | €638.96 | |
 |
MSF-31T | 1 15/16" | Cast Iron | - | €367.98 | |
 |
MSF-39 CPJ | - | Cast Iron | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Cast Iron | - | €912.29 | |
 |
MSF-48 W | - | - | - | €1,837.00 | |
 |
MSF-39C | 2 7/16" | Cast Iron | - | €687.81 |
