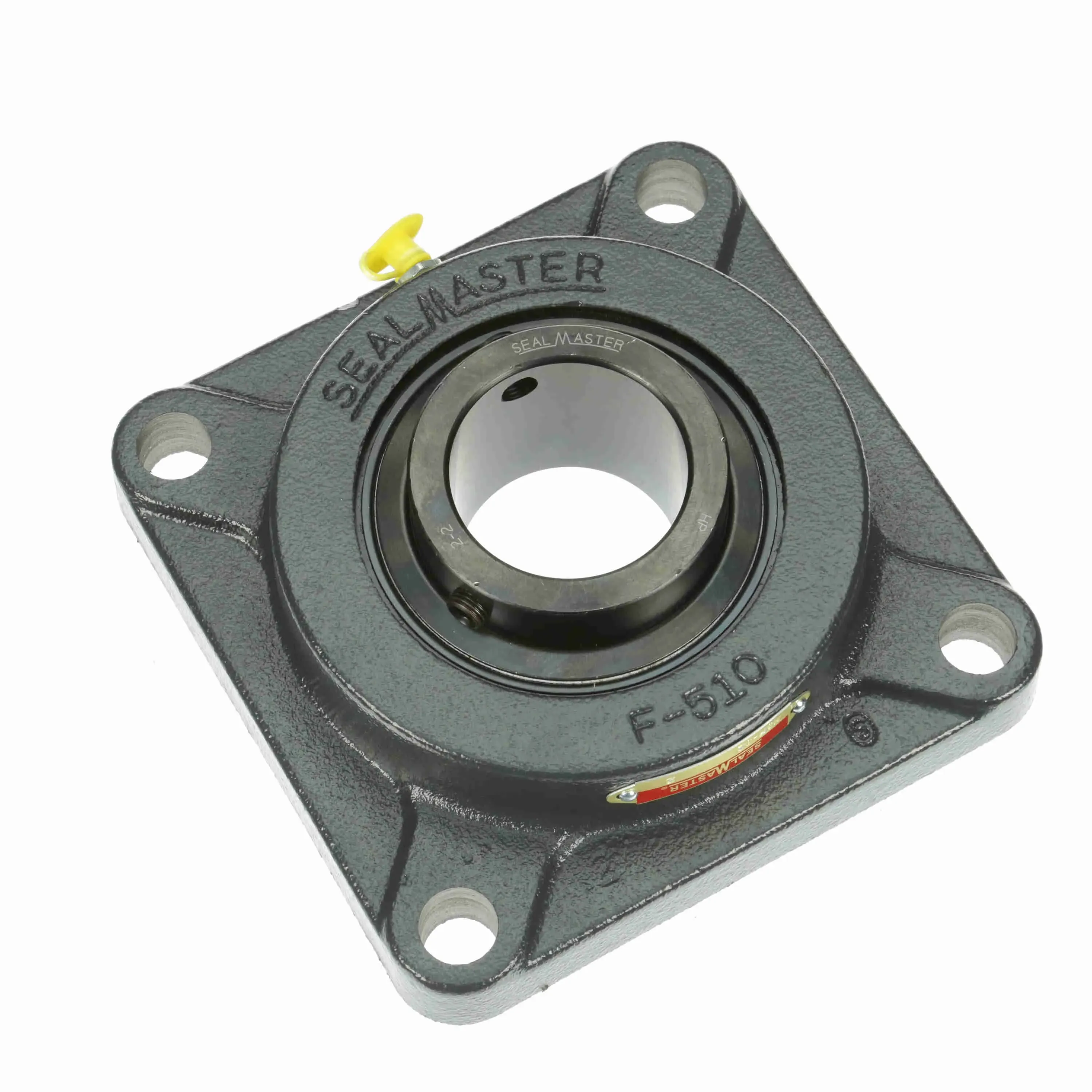

SEALMASTER MSF-32 701953 Flange Bearing, 4 Bolt, 2 Inch Bore, Cast Iron, Set Screws, 6 1/2 Inch Length, Square
Item: BF6RTXModel: MSF-32Cross Ref: 44A356 / 701953
7 In Stock
Ships within 2 days via
5.00% off
€794.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.984" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bolt Spacing | 5 1/8" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 13/16" |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inside Dia. | 4 1/4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Included Bearing | UC211-32 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-2 |
| Inside Ring Outside Dia. | 2.723" |
| Length Through Bore | 2.19" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 5 1/8" |
| Mount Hole Center To Center Length | 5 1/8" |
| Mount Hole Size | 43/64" |
| Mounting Bolt Size | 5/8" |
| No. Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.313" |
| Overall Length | 6.38" |
| Overall Width | 6.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Static Radial Load Capacity | 6601 lbf. |
Shipping Info:
| Ship weight (kg) | 4.66 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Max. Operating Temp. | Length Through Bore | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | Steel | 11789 lbs. | 220°F | 2.984" | Black | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | Steel | 7901 lbs. | 220°F | 1.934" | Black | €638.96 | |
 |
MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | Steel | 9752 lbs. | 220°F | 2.33" | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | - | - | 250°F | - | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | Steel | 17412 lbs. | 250°F | 3 1/4" | Black | €912.29 | |
 |
MSF-39C | 2 7/16" | - | 3" | Steel | 13971 lbs. | - | 2.748" | Black | €687.81 | |
 |
MSF-47C | 2 15/16" | - | 3 1/2" | Steel | 17412 lbs. | - | 3 1/4" | Black | €912.92 |
