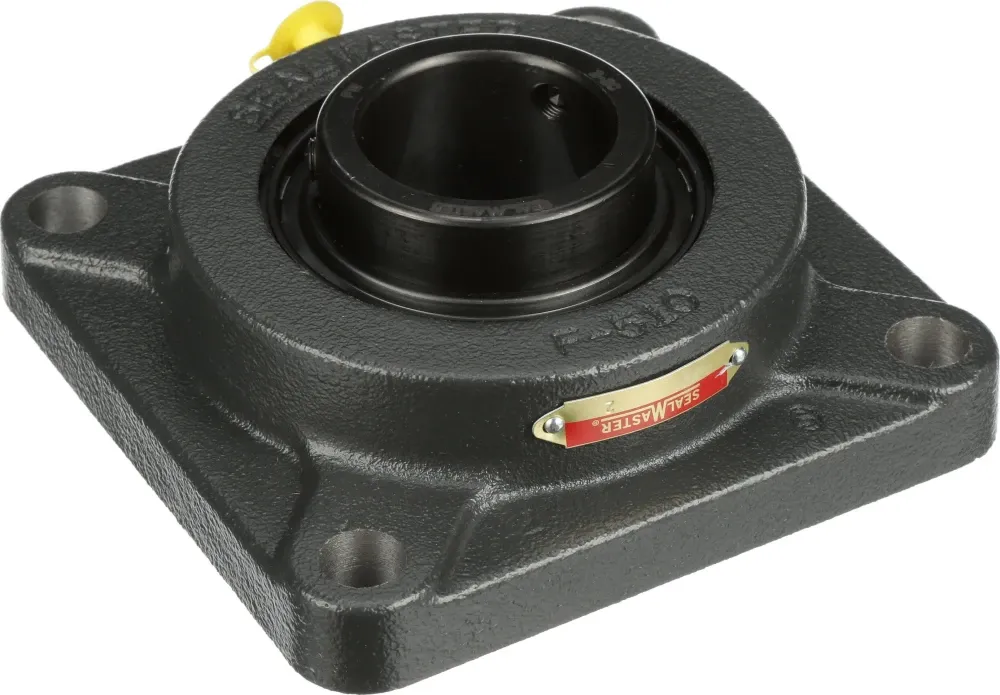

SEALMASTER MSF-314C Flange Bearing, 4 Bolt, 70mm Dia, Setscrew Locking, Cast Iron Housing, Contact Seal
Get it by Tuesday, Aug 25
€893.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Duty Series | Medium |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four Bolt Flange |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | Steel |
| Locking Device | Setscrew |
| Max. Operating Temp. | 250°F |
| No. Links/ft. | 0 |
| Product Line | Sealmaster Gold Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Type | Contact Seal |
| Shaft Size | 70 mm |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 20.17 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Max. Operating Temp. | Length Through Bore | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | Steel | 11789 lbs. | 220°F | 2.984" | Black | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | Steel | 7901 lbs. | 220°F | 1.934" | Black | €638.96 | |
 |
MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | Steel | 9752 lbs. | 220°F | 2.33" | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | - | - | 250°F | - | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | Steel | 17412 lbs. | 250°F | 3 1/4" | Black | €912.29 | |
 |
MSF-39C | 2 7/16" | - | 3" | Steel | 13971 lbs. | - | 2.748" | Black | €687.81 | |
 |
MSF-47C | 2 15/16" | - | 3 1/2" | Steel | 17412 lbs. | - | 3 1/4" | Black | €912.92 |
