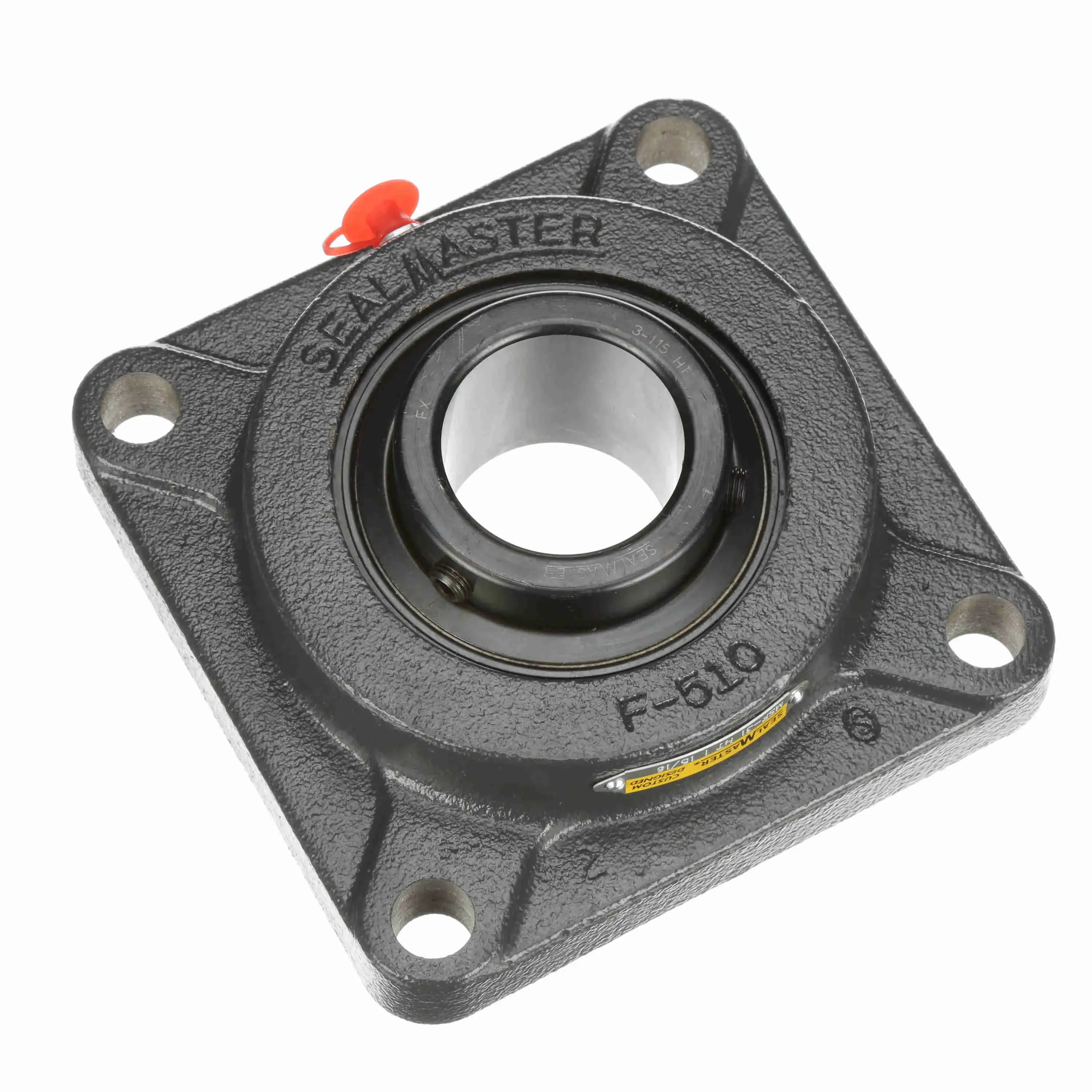

SEALMASTER MSF-31 HT 724071 Flange Ball Bearing, 4 Bolt, Black Oxided, Setscrew Lock, High Temperature, 1.938 Inch
Get it by Tuesday, Dec 23
€493.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 5 1/8" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 4 1/4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.723" |
| Insert | 3-115 HT |
| Length Through Bore | 2.19" |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1400 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.313" |
| Overall Length | 6.38" |
| Overall Width | 6.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 4.71 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Cast Iron | - | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Cast Iron | - | €638.96 | |
 |
MSF-31T | 1 15/16" | Cast Iron | - | €367.98 | |
 |
MSF-39 CPJ | - | Cast Iron | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Cast Iron | - | €912.29 | |
 |
MSF-48 W | - | - | - | €1,837.00 | |
 |
MSF-39C | 2 7/16" | Cast Iron | - | €687.81 |
