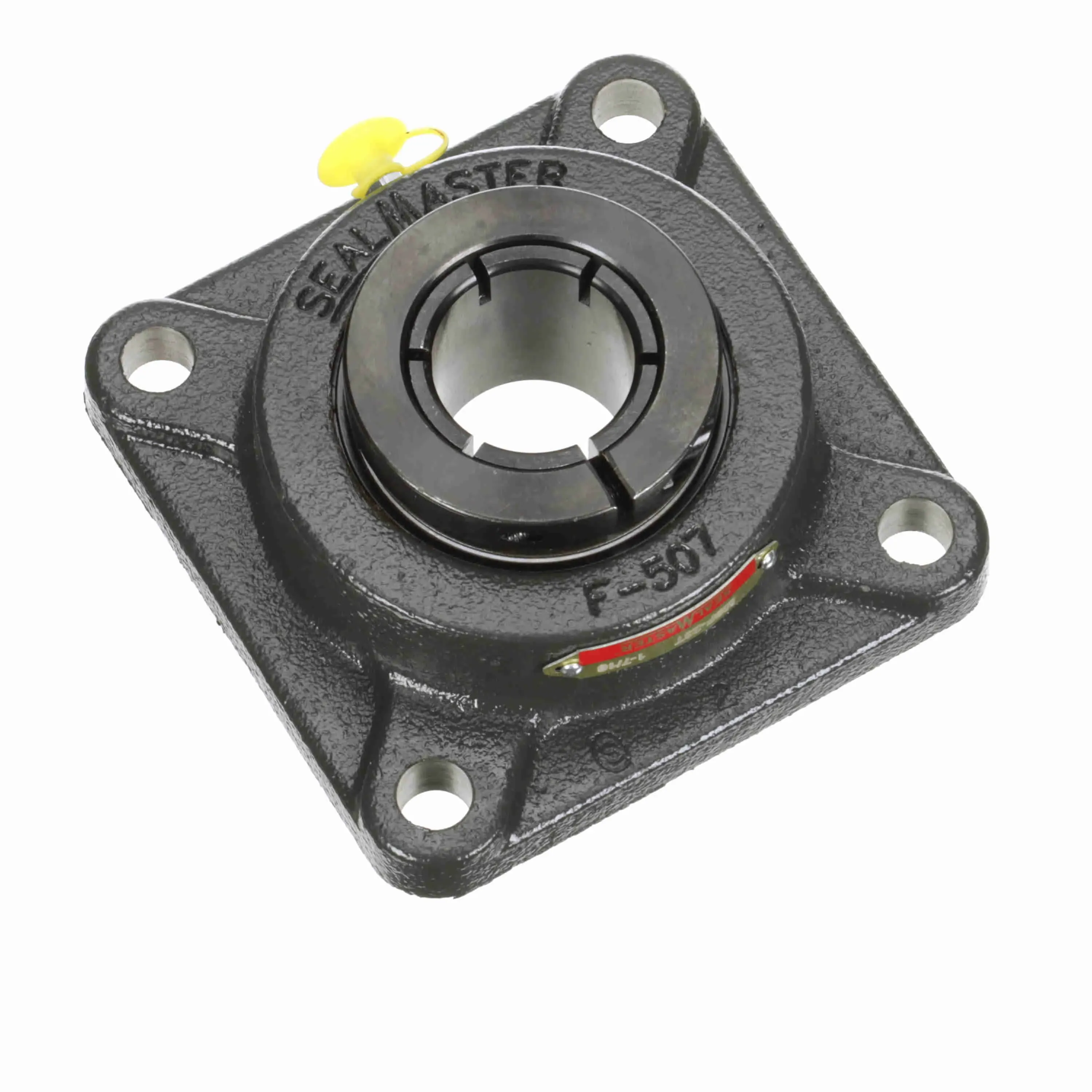

SEALMASTER MSF-23T 705681 Flange Block Bearing, 4 Bolt Square Flange Block, 1.43 Inch Bore, 5.7 Inch Bolt Dia
Get it by Tuesday, Sep 1
€234.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inside Dia. | 3 1/2" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-17T |
| Inside Ring Outside Dia. | 2.07" |
| Length Through Bore | 2" |
| Locking Collar Outside Dia. | 2 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5850 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 5/64" |
| Overall Length | 5.13" |
| Overall Width | 5.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
Shipping Info:
| Ship weight (kg) | 2.41 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Max. Operating Temp. | Length Through Bore | Bearing Insert Material | Dynamic Load Capacity | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | 220°F | 2.984" | Steel | 11789 lbs. | Black | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | 220°F | 1.934" | Steel | 7901 lbs. | Black | €638.96 | |
 |
MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | 220°F | 2.33" | Steel | 9752 lbs. | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | 250°F | - | - | - | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | 250°F | 3 1/4" | Steel | 17412 lbs. | Black | €912.29 | |
 |
MSF-39C | 2 7/16" | - | 3" | - | 2.748" | Steel | 13971 lbs. | Black | €687.81 | |
 |
MSF-47C | 2 15/16" | - | 3 1/2" | - | 3 1/4" | Steel | 17412 lbs. | Black | €912.92 |
