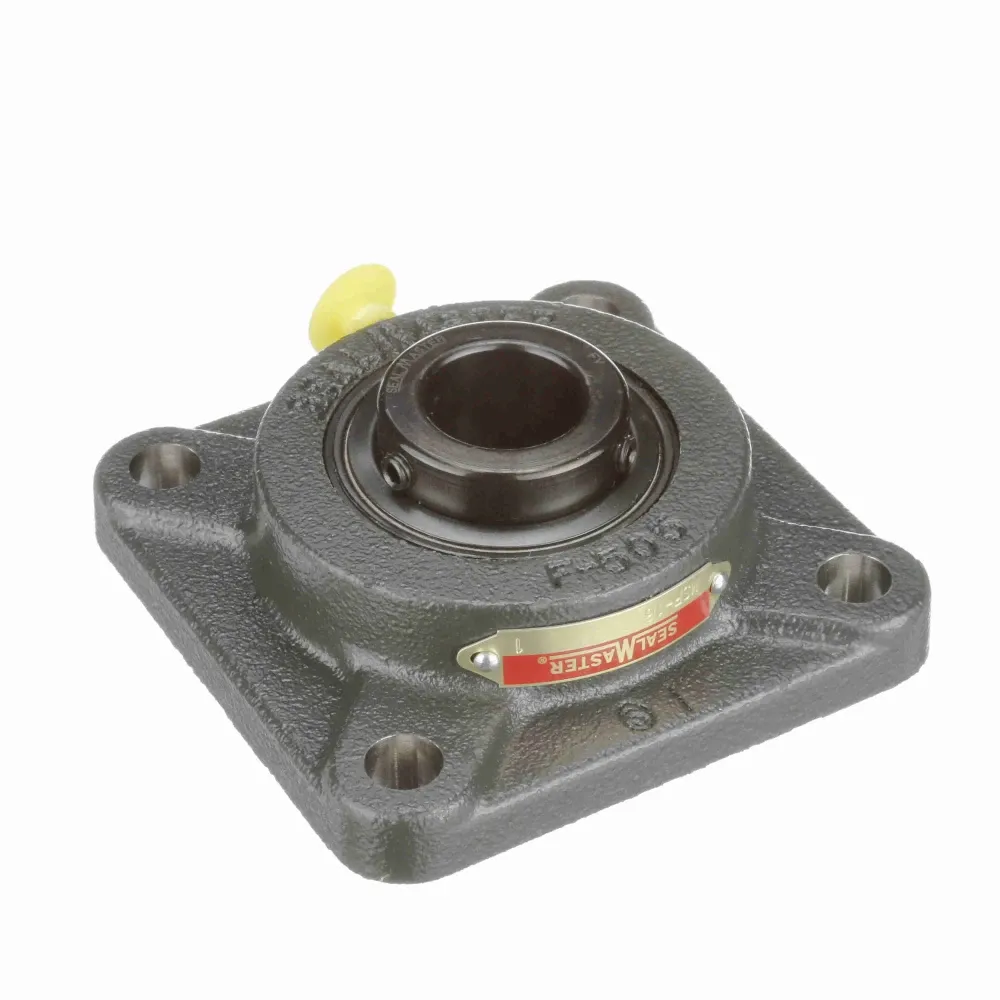

SEALMASTER MSF-22 Flange-Mount Ball Bearing Unit, 1-3/8 Inch Bore
Get it by Tuesday, Sep 1
€241.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bearing Type | Four Bolt Flange |
| Bore Dia. | 1 3/8" |
| Duty Type | Medium Duty |
| Family Series | Sealmaster Bearings, MSF Series |
| Housing Material | Cast Iron |
| Inner Ring Width | 1 15/16" |
| Insert Material | 52100 Steel, Black Oxide |
| Locking Device | Set Screw |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4150 RPM |
| Operating Temp. Range | -20°F to +220°F |
| Overall Height | 2.0156" |
| Replacement Bearing | 3-16 |
| Seal Type | Felt Labyrinth Seal |
| Series | MSF Series |
| Shaft Dia. | 1 3/8" |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 5.12 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Max. Operating Temp. | Length Through Bore | Bearing Insert Material | Dynamic Load Capacity | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | 220°F | 2.984" | Steel | 11789 lbs. | Black | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | 220°F | 1.934" | Steel | 7901 lbs. | Black | €638.96 | |
 |
MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | 220°F | 2.33" | Steel | 9752 lbs. | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | 250°F | - | - | - | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | 250°F | 3 1/4" | Steel | 17412 lbs. | Black | €912.29 | |
 |
MSF-39C | 2 7/16" | - | 3" | - | 2.748" | Steel | 13971 lbs. | Black | €687.81 | |
 |
MSF-47C | 2 15/16" | - | 3 1/2" | - | 3 1/4" | Steel | 17412 lbs. | Black | €912.92 |
