SEALMASTER MSF-20C Flange Block Bearing, 4 Bolt Square Flange Block, 1-1/4 Inch Bore, 5.1 Inch Bolt Dia
Get it by Tuesday, Aug 25
€220.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Angle Of Misalignment | -2° to +2° |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Type | Ball Bearing |
| Bolt Size | 1/2" |
| Bore Shape | Straight |
| Centerline To Front Face | 1" |
| Duty Series | Medium |
| End Type | Open End |
| Expansion | No |
| Family Series | Sealmaster Bearings, MSF Series |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.563" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Length | 4 5/8" |
| Housing Material | Cast Iron |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.688" |
| Insert Material | Bearing Steel, Black Oxided |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Insert No. | 2-14C |
| Inside Ring Outside Dia. | 1.859" |
| Locking Device | Setscrew Locking Collar |
| Locking Type | Set Screws |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4650 RPM |
| Misalignment Type | Static Only |
| Mounted Unit Duty | Medium Duty |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | No Pilot |
| Retainer Type | Land Riding |
| Seal Type | Single Lip Contact |
| Series | MSF Series |
| T Core | 3.313 |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Max. Operating Temp. | Length Through Bore | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

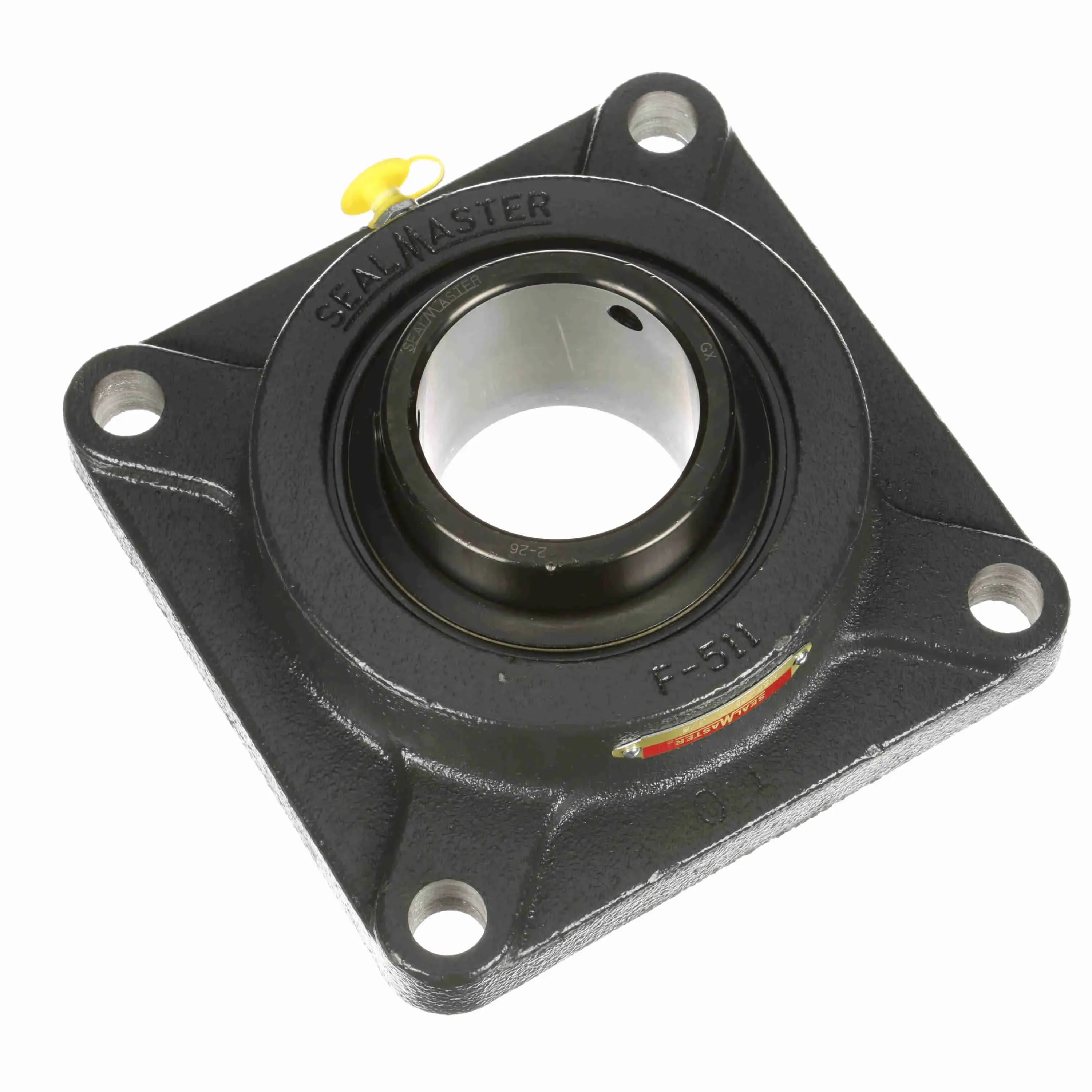

MSF-38 | 2 3/8" | Felt Labyrinth Seal | 2.688" | Steel | 11789 lbs. | 220°F | 2.984" | Black | €1,270.35 | |
 |

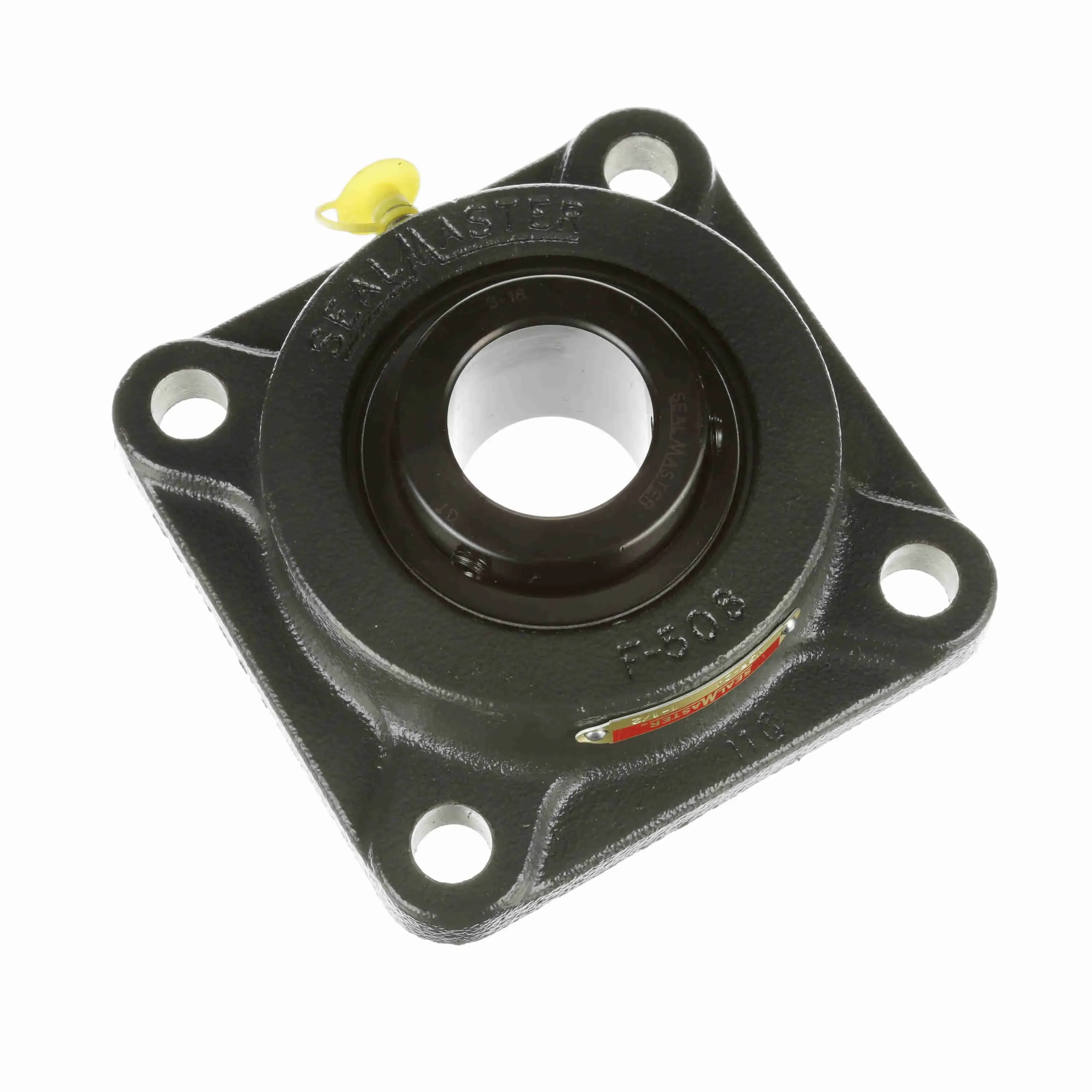

MSF-24 | 1 1/2" | Felt Labyrinth Seal | 2.047" | Steel | 7901 lbs. | 220°F | 1.934" | Black | €638.96 | |
 |

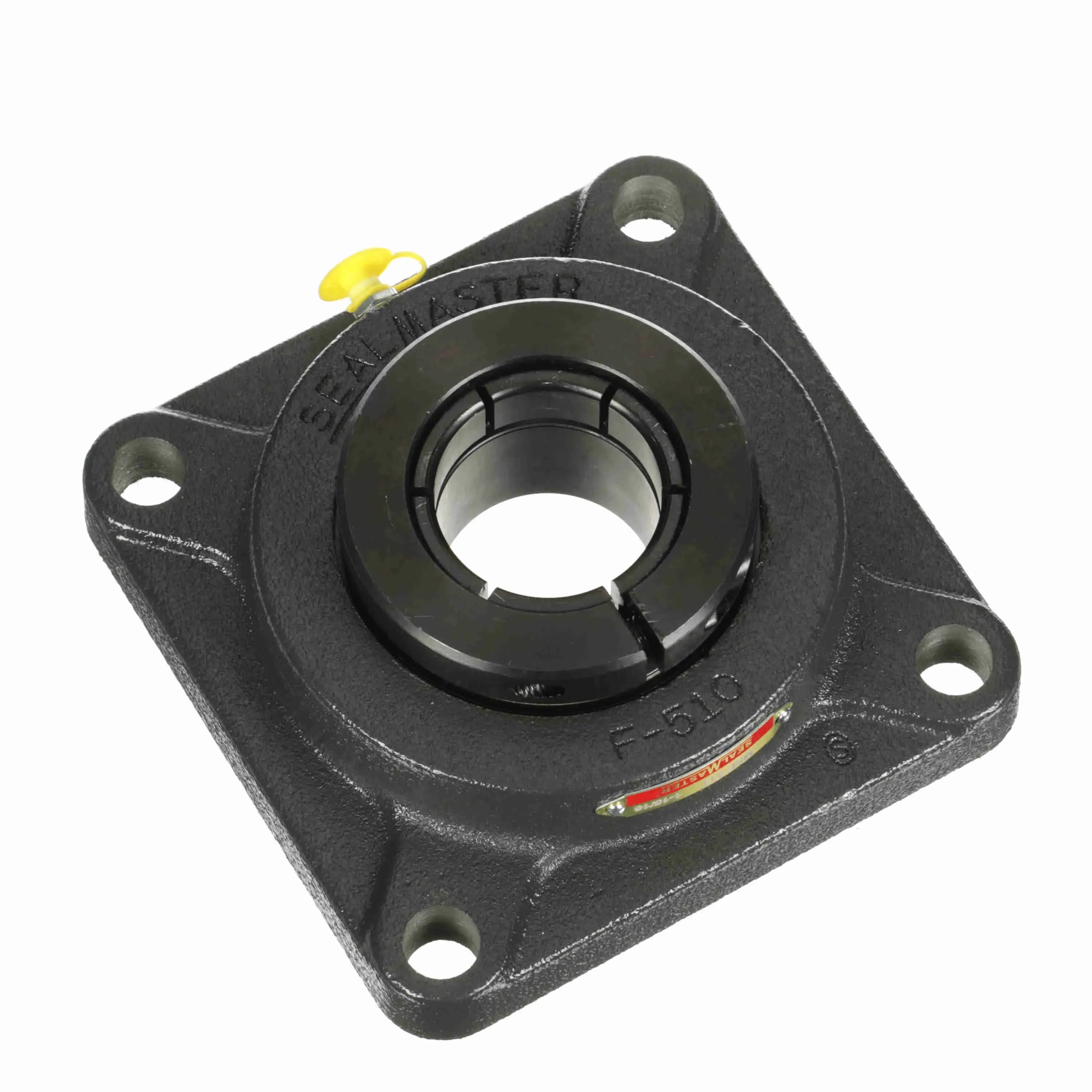

MSF-31T | 1 15/16" | Felt Labyrinth Seal | 2 3/8" | Steel | 9752 lbs. | 220°F | 2.33" | Black | €367.98 | |
 |
MSF-39 CPJ | - | Standard Felt Seal | - | - | - | 250°F | - | - | €673.19 | |
 |

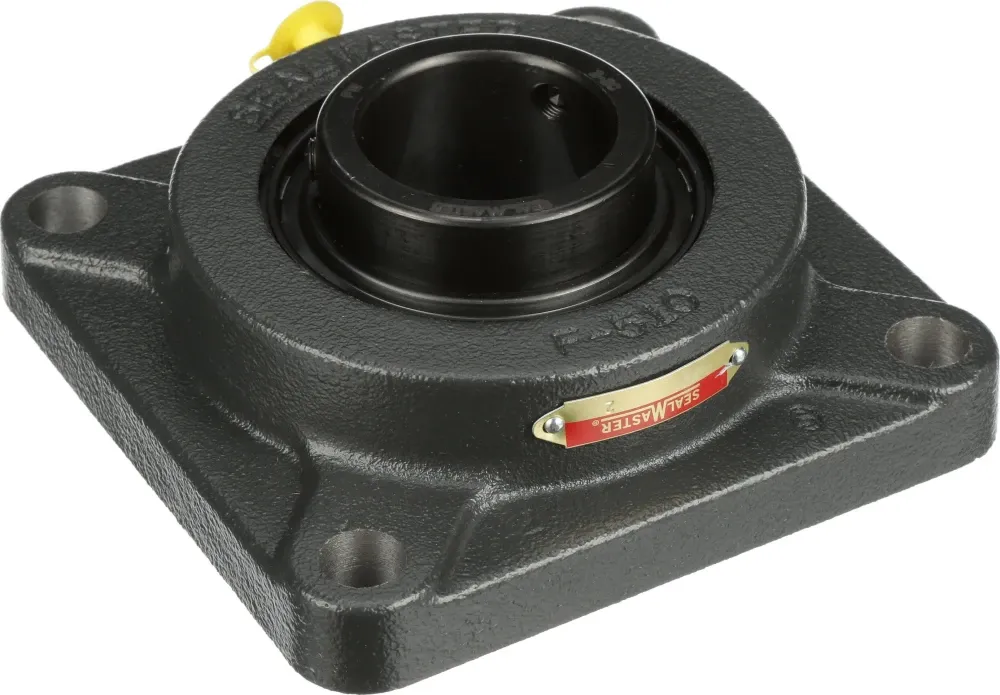

MSF-47 CXU | 2 15/16" | Standard Felt Seal | 3 1/2" | Steel | 17412 lbs. | 250°F | 3 1/4" | Black | €912.29 | |
 |

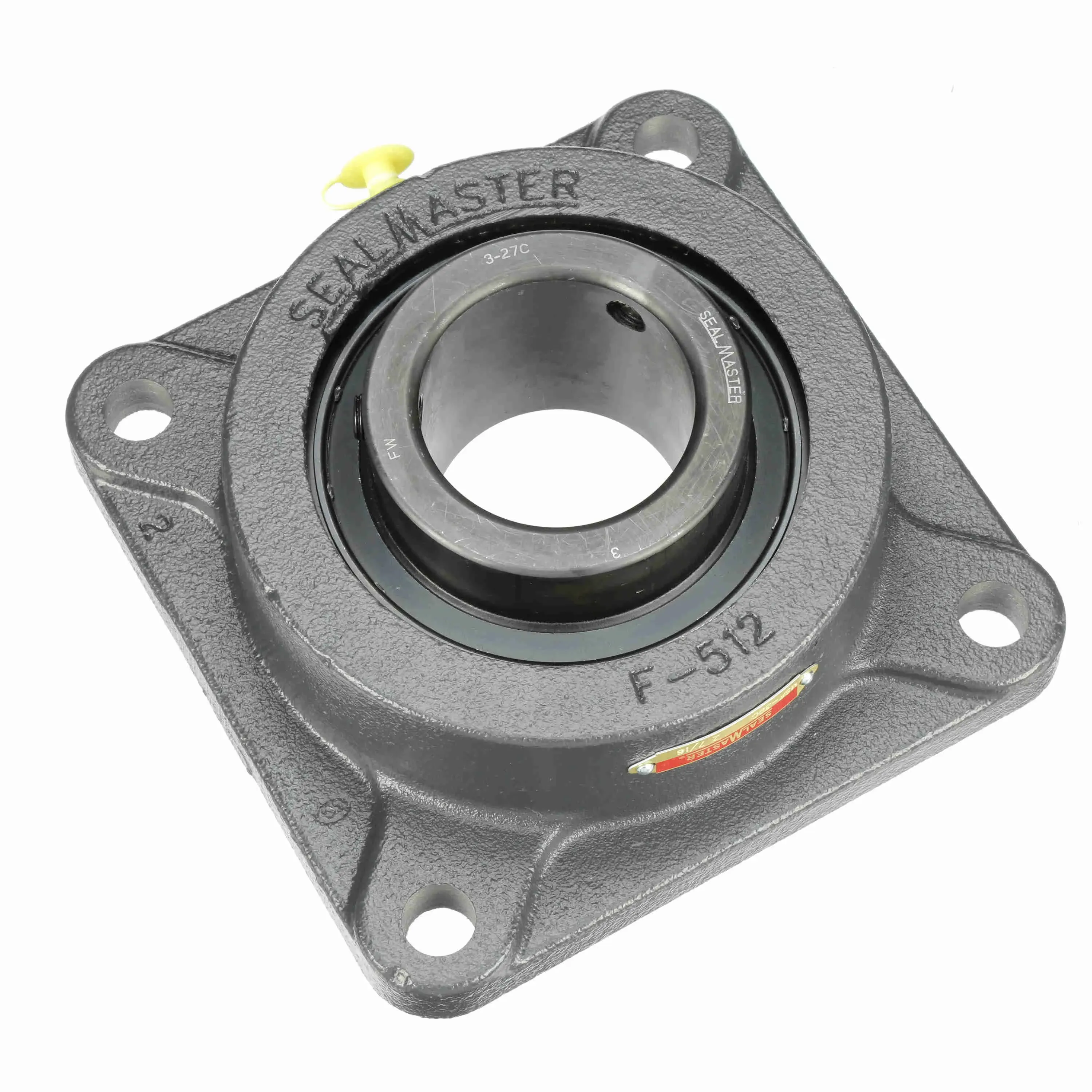

MSF-39C | 2 7/16" | - | 3" | Steel | 13971 lbs. | - | 2.748" | Black | €687.81 | |
 |

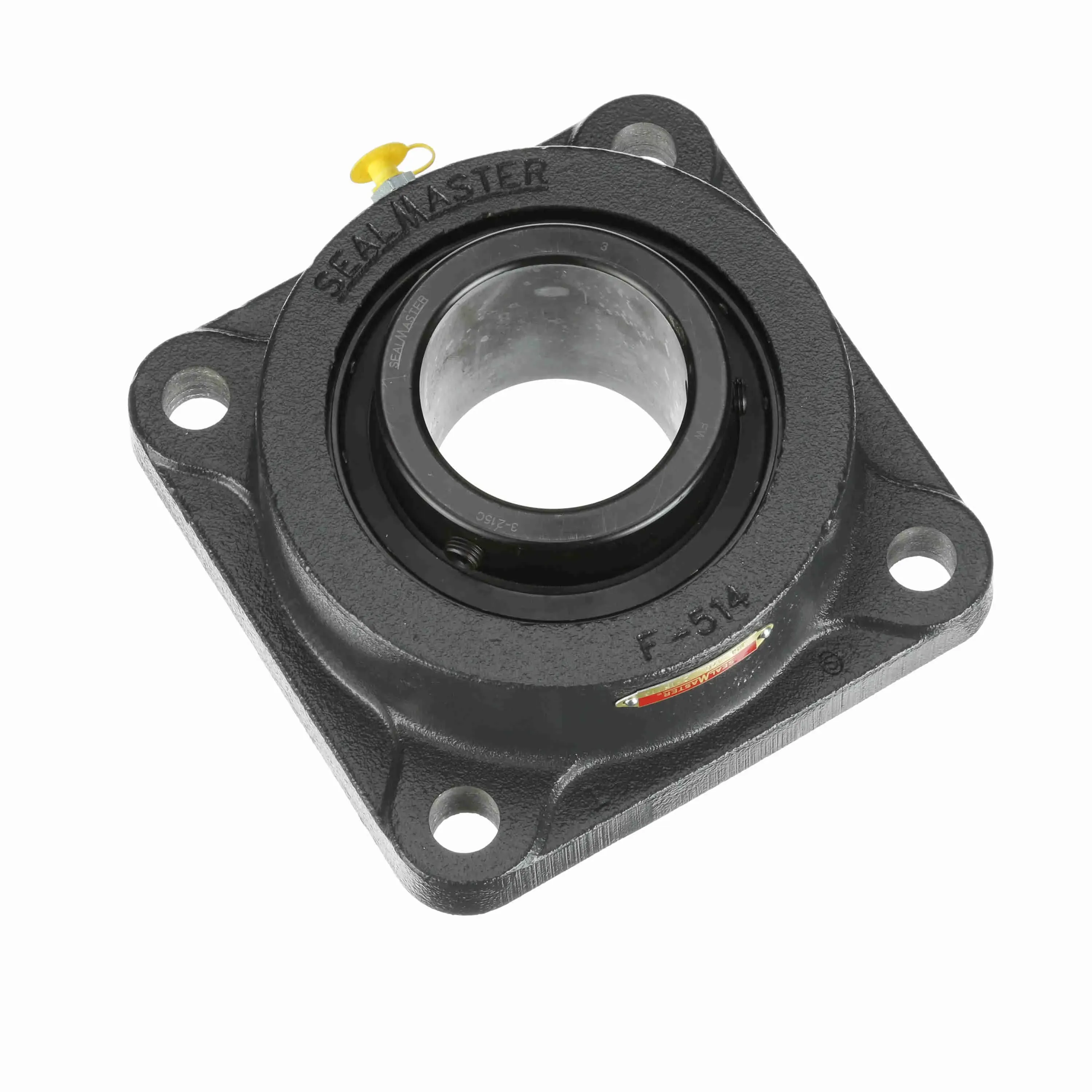

MSF-47C | 2 15/16" | - | 3 1/2" | Steel | 17412 lbs. | - | 3 1/4" | Black | €912.92 |
