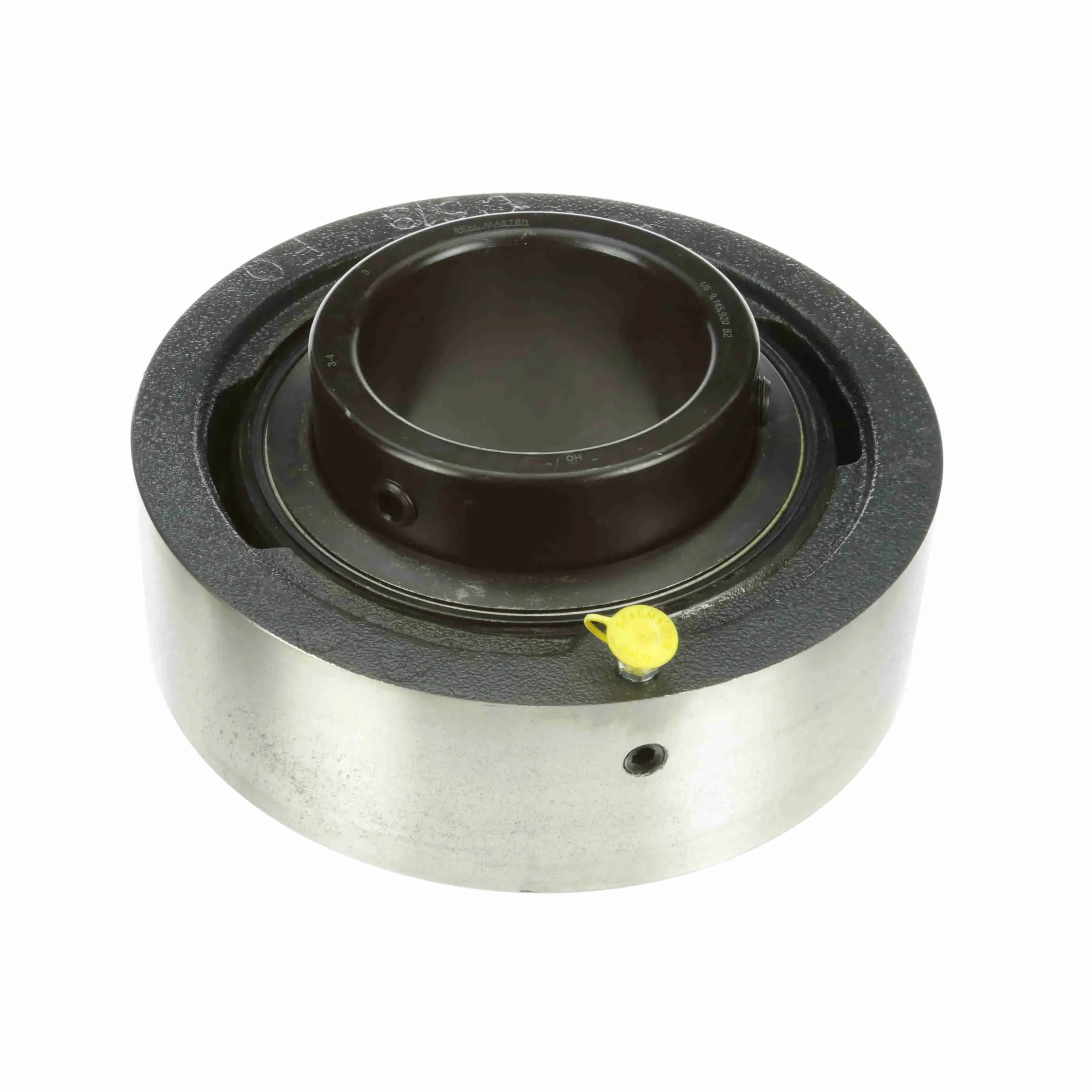

SEALMASTER MSC-64 701940 Cylindrical Cartridge Bearing, 4 Inch Dia, Setscrew Locking, Standard Felt Seal
Get it by Monday, Aug 31
€3,036.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylindrical Cartridge Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bore Dia. | 4" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.69" |
| Duty Series | Medium |
| Dynamic Load Capacity | 29905 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 6.63" |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Width | 3" |
| Htc | 8482.10.5056 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-4 |
| Inside Ring Outside Dia. | 5.172" |
| Length | 11" |
| Length Through Bore | 4 5/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1700 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 9 1/2" |
| Overall Height | 9 1/2" |
| Overall Length | 9 1/2" |
| Overall Width | 4.63" |
| Radial Clearance | Standard |
| Series | Msc Series |
| Shaft Locking Type | Set Screw |
| Shaft Size | 4" |
| Size Code | 2-43 |
| Static Load Rating | 23553 lbs. |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 19.03 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Cage Material | Bore Dia. | Max. Operating Temp. | Seal Type | Housing Type | Rolling Element | Shaft Size | Htc | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSC-51 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 3 3/16" | - | €7,495.97 | |
 |
MSC-309 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 45 mm | - | €529.18 | |
 |
MSC-56 | Brass | 3 1/2" | - | - | - | - | 3 1/2" | 8482.10.5056 | €2,264.68 | |
 |
MSC-306 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 30 mm | - | €473.96 | |
 |
MSC-24 | Polyphenylene Sulfide | 1 1/2" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | 8482.10.5052 | €334.54 | |
 |
MSC-32T | Polyphenylene Sulfide | 2" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | 8482.10.5052 | €559.90 | |
 |
MSC-28T | Polyphenylene Sulfide | 1 3/4" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | 8482.10.5052 | €369.23 |
