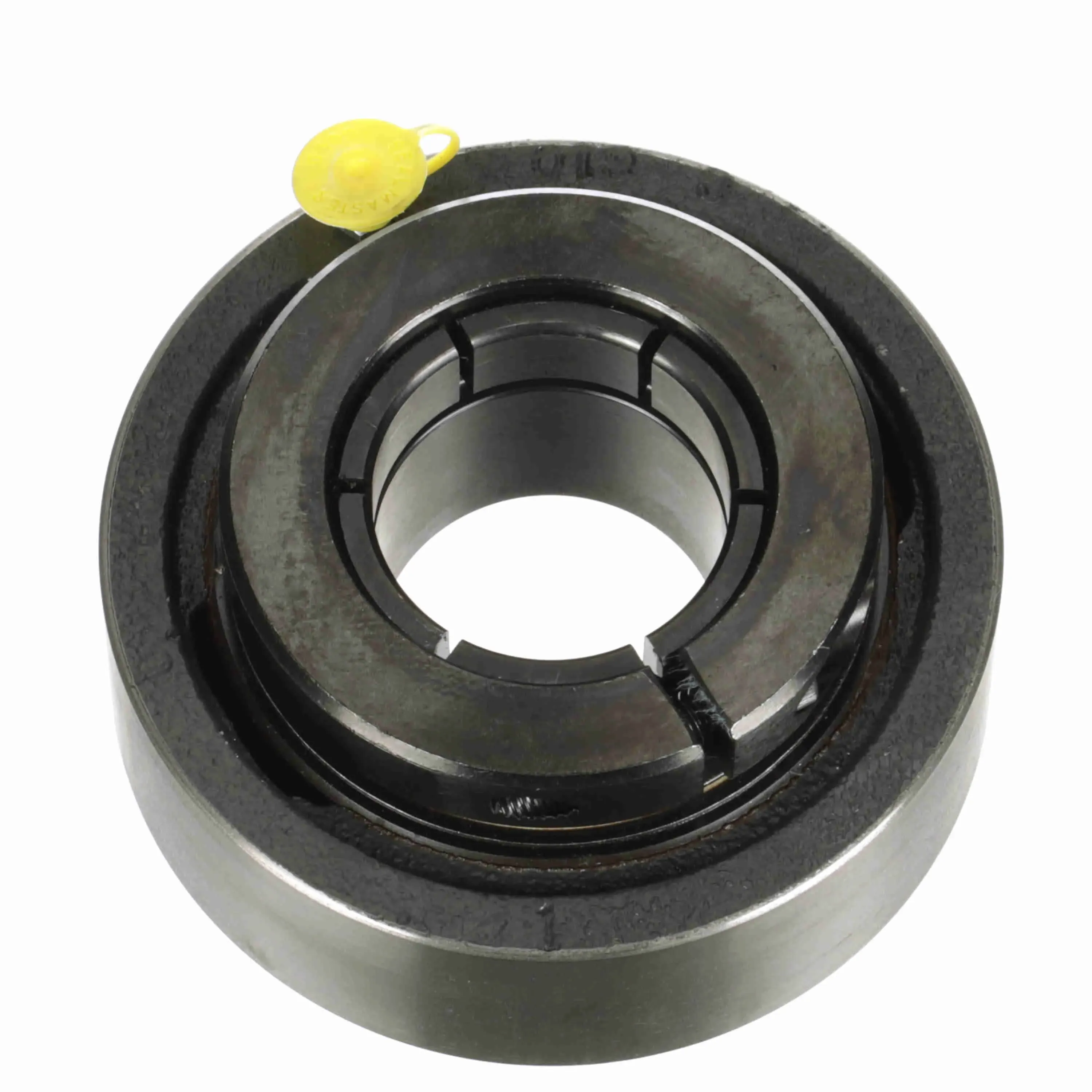

SEALMASTER MSC-31T 705674 Mounted Cast Iron Cylindrical Cartridge Ball Bearing
Get it by Monday, Dec 22
€440.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.45" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.59" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | 3-115T |
| Length Through Bore | 2 1/4" |
| Locking Collar Outside Diameter | 3 3/5" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 4.938" |
| Overall Height | 4.94" |
| Overall Length | 4.94" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | MSC-T Series |
| Shaft Locking Type | Concentric |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 13.67 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Outside Dia. | Cage Material | Seal Type | Shaft Size | Dynamic Load Capacity | Max. Speed | Inner Ring Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSC-23 | - | - | - | - | - | - | - | - | €304.29 | |
 |
MSC-51 | - | - | - | Felt Seal | 3 3/16" | - | - | - | €7,495.97 | |
 |
MSC-309 | - | - | - | Felt Seal | 45 mm | - | - | - | €529.18 | |
 |
MSC-56 | 3 1/2" | 8.188" | Brass | - | 3 1/2" | 21566 lbs. | 1700 RPM | 4.391" | €2,264.68 | |
 |
MSC-24TC | - | - | - | - | - | - | - | - | €334.03 | |
 |
MSC-306 | - | - | - | Felt Seal | 30 mm | - | - | - | €473.96 | |
 |
MSC-24 | 1 1/2" | 4 3/8" | Polyphenylene Sulfide | Felt Labyrinth Seal | - | 7901 lbs. | 3800 RPM | - | €334.54 |
