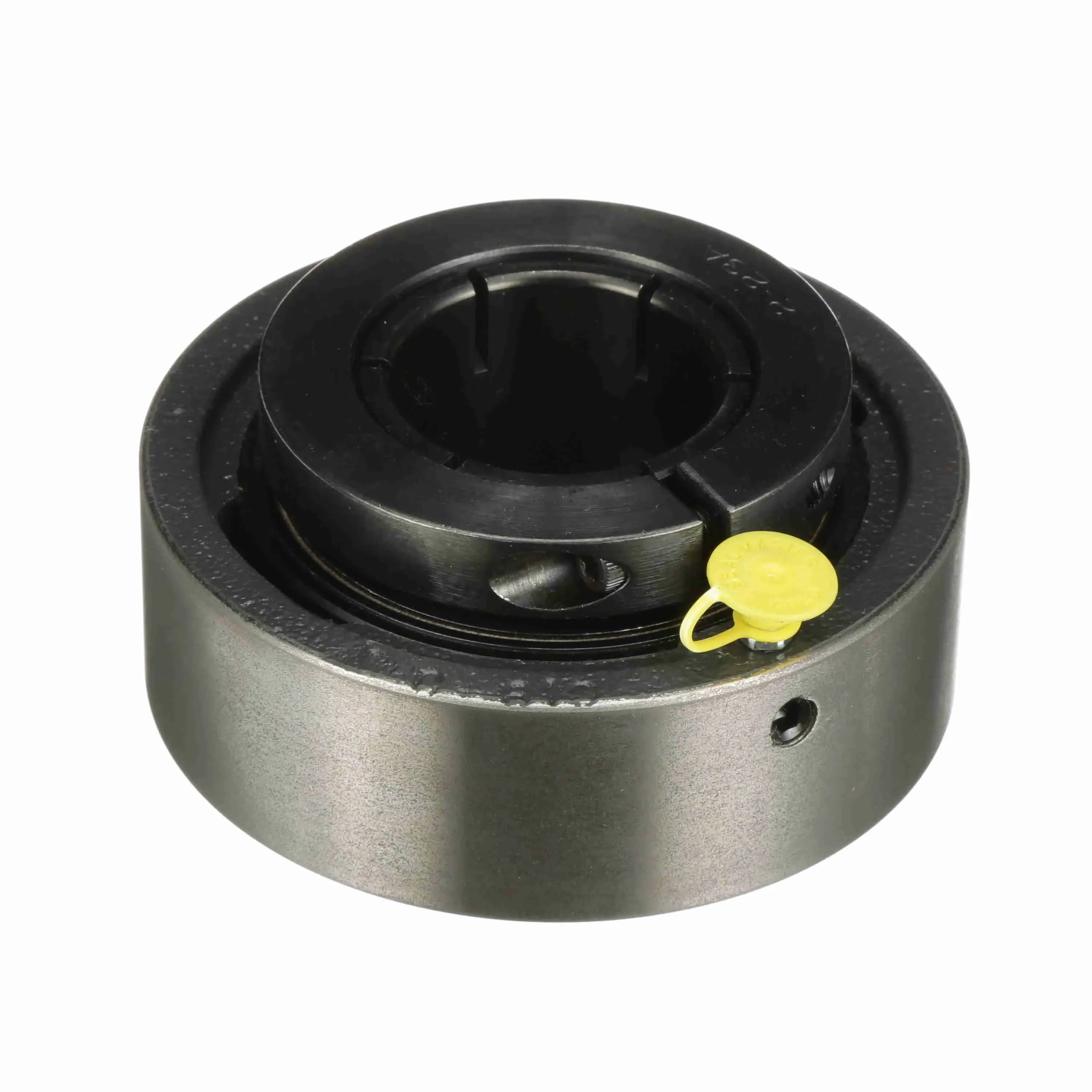

SEALMASTER MSC-16T 713145 Ball Bearing Cartridge, 1.00 Inch Bore, 3.50 Inch Outside Diameter
Get it by Tuesday, Sep 1
€236.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.99" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Cartridge Block |
| Housing Type | Cartridge, Cylindrical |
| Housing Width | 1.09" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-1T |
| Inside Ring Outside Dia. | 1.594" |
| Length Through Bore | 1.563" |
| Locking Collar Outside Dia. | 2.11" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 7600 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 3 1/2" |
| Overall Height | 3 1/2" |
| Overall Length | 3 1/2" |
| Overall Width | 1 14/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | MSC-T Series |
| Shaft Locking Type | Concentric |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | MX |
Product Variants
| Product | Model | Cage Material | Bore Dia. | Max. Operating Temp. | Seal Type | Housing Type | Rolling Element | Shaft Size | Retainer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSC-51 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 3 3/16" | Brass | €7,495.97 | |
 |
MSC-309 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 45 mm | Brass | €529.18 | |
 |
MSC-56 | Brass | 3 1/2" | - | - | - | - | 3 1/2" | Brass | €2,264.68 | |
 |
MSC-306 | - | - | 250°F | Felt Seal | Setscrew | Cylindrical Cartridge | 30 mm | Brass | €473.96 | |
 |
MSC-24 | Polyphenylene Sulfide | 1 1/2" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | - | €334.54 | |
 |
MSC-32T | Polyphenylene Sulfide | 2" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | - | €559.90 | |
 |
MSC-28T | Polyphenylene Sulfide | 1 3/4" | 220°F | Felt Labyrinth Seal | Cartridge, Cylindrical | Ball Bearing | - | - | €369.23 |
