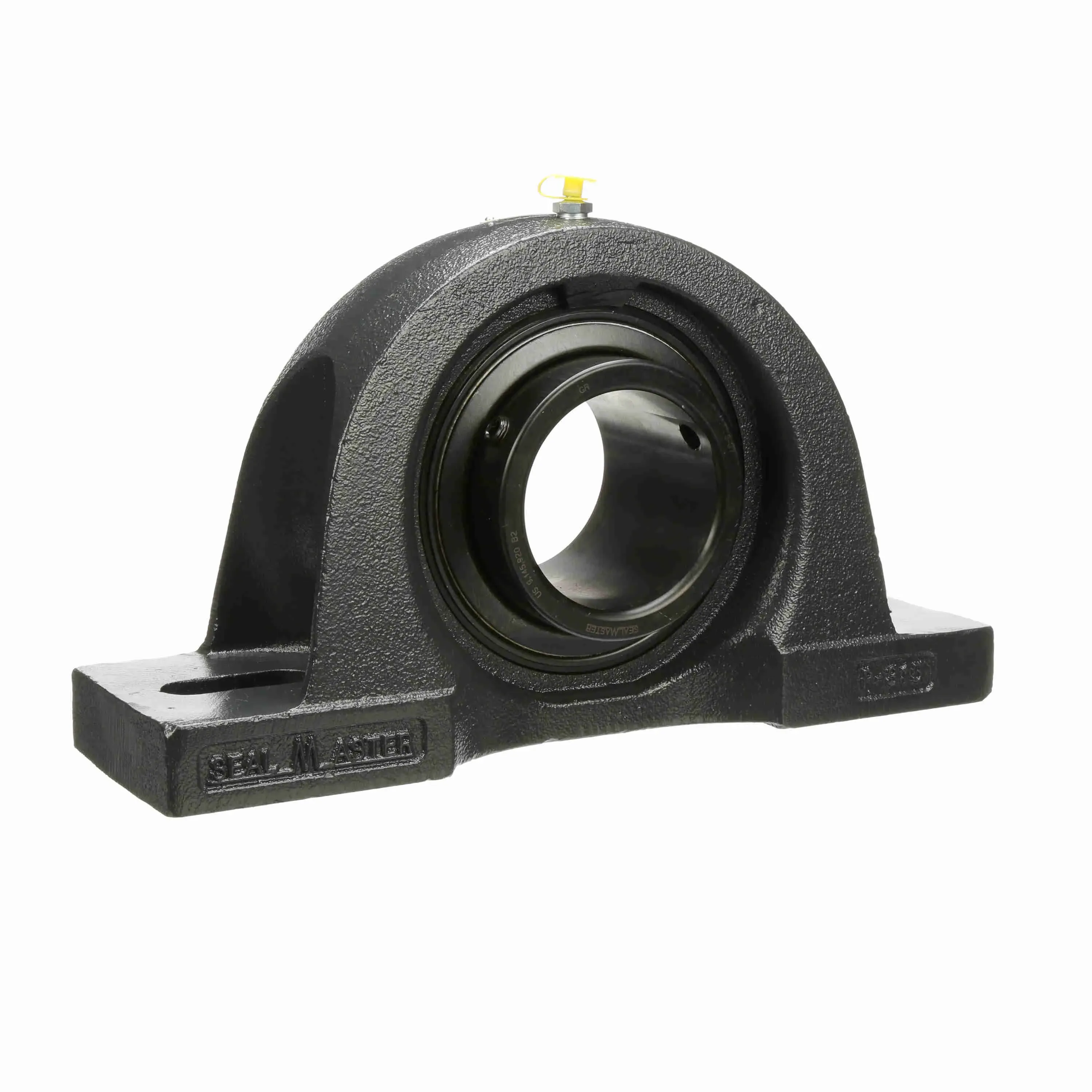

SEALMASTER MP-55 701885 Pillow Block Bearing, 3 7/16 Inch Bore, Cast Iron, Set Screws, 4 Inch Shaft Ht
Get it by Thursday, Feb 19
10.00% off
€2,817.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 1.31" |
| Base Length | 15" |
| Base To Center Height | 4" |
| Base Width | 4.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Size | 7/8" |
| Bolt Spacing Max | 12.63" |
| Bolt Spacing Min | 9.63" |
| Bore Dia. | 3 7/16" |
| Bore Diameter | 3 7/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.219" |
| Closure | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 21566 lbs. |
| Dynamic Radial Load Capacity | 21566 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.31" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Height | 4.88" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 4.391" |
| Inner Ring Outside Diameter | 4.391" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-37 |
| Length | 17 1/4" |
| Length Through Bore | 3.781" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2000 RPM |
| Maximum Misalignment Angle | 2° |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 12 5/8" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 7/8" |
| Mounting Surface To Shaft Center Height | 4" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 8 1/4" |
| Overall Length | 15" |
| Overall Width | 4 3/8" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Seal Material | Felt |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3 7/16" |
| Size Code | 2-38 |
| Static Load Rating | 16301 lbs. |
| Static Radial Load Capacity | 16301 lbf. |
| Width | 9.88" |
Shipping Info:
| Ship weight (kg) | 22.03 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-27 | Steel | 8 3/4" | 2 5/8" | 4 5/8" | Medium Duty | Set Screws | 1.688" | Pillow Block, Two Bolt | €699.23 | |
 |
MP-38 | Steel | 10 3/4" | 3 1/8" | 5.63" | Medium Duty | Set Screws | 2 3/8" | Pillow Block, Two Bolt | €1,664.59 | |
 |
MP-51 | Alloy Steel | 15" | 4" | 8" | Radial Ball | Set Screws | 3.188" | Pillow Block, Two Bolt | €3,006.82 | |
 |
MP-32 | Steel | 9 1/2" | 2 7/8" | 5.093" | Medium Duty | Set Screws | 2" | Pillow Block, Two Bolt | €1,012.42 | |
 |
MP-15 | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 15/16" | Pillow Block, Two Bolt | €260.43 | |
 |
MP-16 | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 1" | Pillow Block, Two Bolt | €455.43 | |
 |
MP-16 CSK | - | - | - | - | - | - | - | - | €232.27 |
