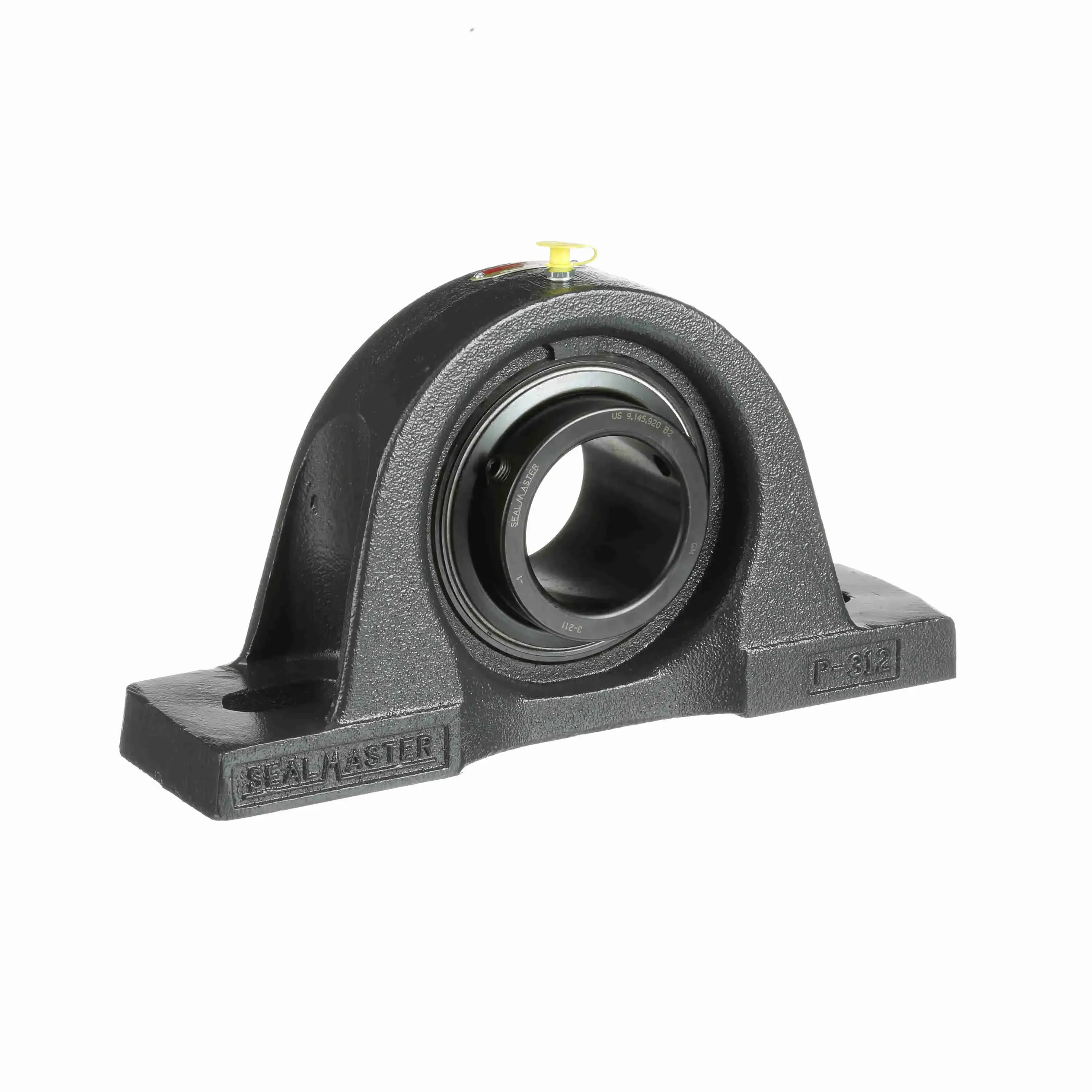

SEALMASTER MP-43 701879 Pillow Block Bearing, 2 11/16 Inch Bore, Cast Iron, Set Screws, 3 1/2 Inch Shaft Ht
Get it by Monday, Dec 22
10.00% off
€1,184.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 1.13" |
| Base Length | 13" |
| Base To Center Height | 3 1/2" |
| Base Width | 3.5" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Centerline Range | 7 7/8" to 10 1/8" |
| Bolt Size | 7/8" |
| Bolt Spacing Max | 10.13" |
| Bolt Spacing Min | 7 22/25" |
| Bore Dia. | 2 11/16" |
| Bore Diameter | 2 11/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Closure | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| Dynamic Radial Load Capacity | 14839 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.13" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8040 |
| I.d. | 13 3/16" |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.641" |
| Inner Ring Outside Diameter | 3.641" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-211 |
| Length | 14 1/4" |
| Length Through Bore | 3.063" |
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2450 RPM |
| Maximum Misalignment Angle | 2° |
| Maximum Temperature | 220°F |
| Measure Units | Imperial |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 10 1/8" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 7/8" |
| Mounting Surface To Shaft Center Height | 3 1/2" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 7" |
| Overall Length | 13" |
| Overall Width | 3 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Centerline Height | 3 1/2" |
| Shaft Locking Type | Set Screws |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Static Radial Load Capacity | 11224 lbf. |
| Width | 8.06" |
Shipping Info:
| Ship weight (kg) | 12.77 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-31 CXU | Steel | 9 1/2" | 2 22/25" | 5.09" | Medium Duty | Set Screw | 1 15/16" | Pillow Block, Two Bolt | €312.19 | |
 |
MP-42C | - | - | - | - | - | - | - | - | €830.06 | |
 |
MP-39 CXU | Steel | 11 1/4" | 3 1/4" | 6 1/4" | Medium Duty | Set Screw | 2 7/16" | Pillow Block, Two Bolt | €624.66 | |
 |
MP-47 CXU | Steel | 13" | 3 1/2" | 7 1/4" | Medium Duty | Set Screw | 2 15/16" | Pillow Block, Two Bolt | €943.46 | |
 |
MP-55 CXU | Steel | 15" | 4.38" | 8 1/4" | Medium Duty | Set Screw | 3 7/16" | Pillow Block, Two Bolt | €1,729.82 | |
 |
MP-35 CXU | Steel | 10 1/4" | 3.13" | 5.63" | Medium Duty | Set Screw | 2 3/16" | Pillow Block, Two Bolt | €380.64 | |
 |
MP-27T | Steel | 8 3/4" | 2.63" | 4.63" | Medium Duty | Concentric | 1 11/16" | Pillow Block, Two Bolt | €360.62 |
