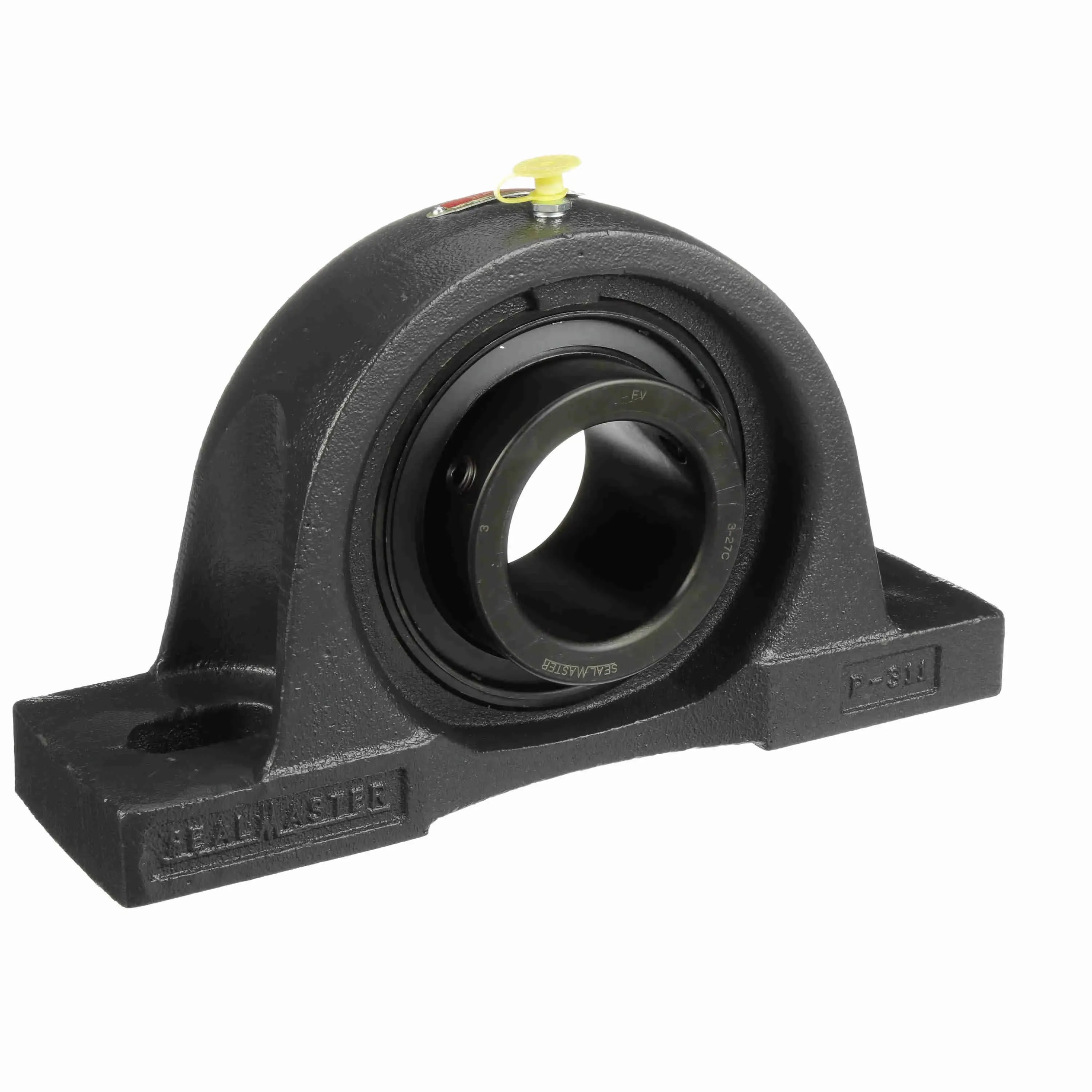

SEALMASTER MP-39C 704215 Pillow Block Bearing, 2 Bolt, 2.43 Inch Bore, Set Screw Mount
Get it by Monday, Aug 24
€729.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 11 1/4" |
| Base To Center Height | 3" |
| Base Width | 3 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.688" |
| Duty Series | Medium |
| Dynamic Load Capacity | 13971 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.06" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 14/25" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-27C |
| Inside Ring Outside Dia. | 3.438" |
| Length | 12.38" |
| Length Through Bore | 2.748" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2225 RPM |
| Min. Bolt Spacing | 7.13" |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 1/4" |
| Overall Length | 11 1/4" |
| Overall Width | 3 1/4" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | No |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 2 7/16" |
| Size Code | 2-211 |
| Static Load Rating | 10063 lbs. |
| Width | 7.13" |
Shipping Info:
| Ship weight (kg) | 9.24 |
| Ship height (cm) | 18.11 |
| Ship length (cm) | 31.45 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Bore Dia. | Overall Height | Overall Width | Bolt Size | Base Width | Seal Type | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-31 CXU | Cast Iron | 1 15/16" | 5.09" | 2 22/25" | 5/8" | 2 22/25" | Felt Labyrinth Seal | Steel | €312.19 | |
 |
MP-39 CXU | Cast Iron | 2 7/16" | 6 1/4" | 3 1/4" | 3/4" | 3 1/4" | - | Steel | €624.66 | |
 |
MP-47 CXU | Cast Iron | 2 15/16" | 7 1/4" | 3 1/2" | 7/8" | 3 1/2" | - | Steel | €943.46 | |
 |
MP-55 CXU | Cast Iron | 3 7/16" | 8 1/4" | 4.38" | 7/8" | 4.38" | - | Steel | €1,729.82 | |
 |
MP-35 CXU | Cast Iron | 2 3/16" | 5.63" | 3.13" | 3/4" | 3.13" | Felt Labyrinth Seal | Steel | €380.64 | |
 |
MP-27T | Cast Iron | 1 11/16" | 4.63" | 2.63" | 5/8" | 2.63" | Felt Labyrinth Seal | Steel | €446.92 | |
 |
MP-28 | Cast Iron | 1 3/4" | 4.63" | 2.63" | 5/8" | 2.63" | Felt Labyrinth Seal | Steel | €829.35 |
