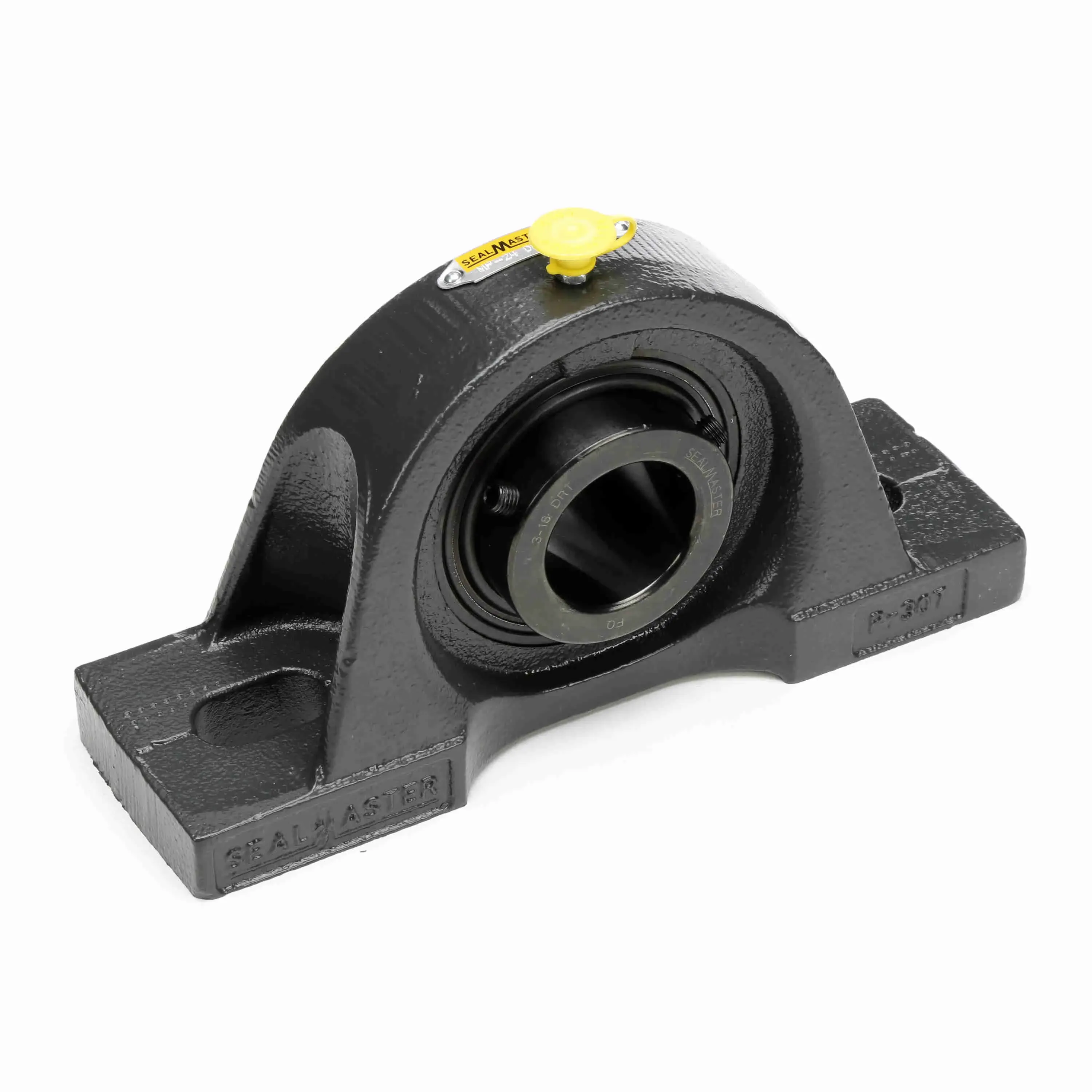

SEALMASTER MP-39 DRT 710906 Pillow Block Bearing, 2 Bolt, 2.4375 Inch Dia, Setscrew Locking, Heavy Duty Multi-Lip Seal
Get it by Monday, Dec 22
€843.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 11 1/4" |
| Base To Center Height | 3" |
| Base Width | 3 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Min | 7.13" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.688" |
| Duty Series | Medium |
| Dynamic Load Capacity | 13971 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.06" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3 14/25" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.438" |
| Inner Ring Outside Diameter | 3.438" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-27 DRT |
| Length | 12.38" |
| Length Through Bore | 2.748" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex Nlgi 2 Grease-100% Fill |
| Lubrication Type | Lithium Complex Nlgi 2 Grease 100% Fill |
| Max. Operating Temperature | 220°F |
| Max. Speed | 550 RPM |
| Misalignment Type | Static Only |
| Options | High Contamination |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 1/4" |
| Overall Length | 11 1/4" |
| Overall Width | 3 1/4" |
| Product Line | Sealmaster Gold Custom Select Suffix |
| Radial Clearance | Standard |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 2 7/16" |
| Size Code | 2-211 |
| Static Load Rating | 10063 lbs. |
| Width | 7.13" |
Shipping Info:
| Ship weight (kg) | 9.68 |
| Ship height (cm) | 18.11 |
| Ship length (cm) | 31.45 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-31 CXU | Steel | 9 1/2" | 2 22/25" | 5.09" | Medium Duty | Set Screw | 1 15/16" | Pillow Block, Two Bolt | €312.19 | |
 |
MP-42C | - | - | - | - | - | - | - | - | €830.06 | |
 |
MP-39 CXU | Steel | 11 1/4" | 3 1/4" | 6 1/4" | Medium Duty | Set Screw | 2 7/16" | Pillow Block, Two Bolt | €624.66 | |
 |
MP-47 CXU | Steel | 13" | 3 1/2" | 7 1/4" | Medium Duty | Set Screw | 2 15/16" | Pillow Block, Two Bolt | €943.46 | |
 |
MP-55 CXU | Steel | 15" | 4.38" | 8 1/4" | Medium Duty | Set Screw | 3 7/16" | Pillow Block, Two Bolt | €1,729.82 | |
 |
MP-35 CXU | Steel | 10 1/4" | 3.13" | 5.63" | Medium Duty | Set Screw | 2 3/16" | Pillow Block, Two Bolt | €380.64 | |
 |
MP-27T | Steel | 8 3/4" | 2.63" | 4.63" | Medium Duty | Concentric | 1 11/16" | Pillow Block, Two Bolt | €360.62 |
