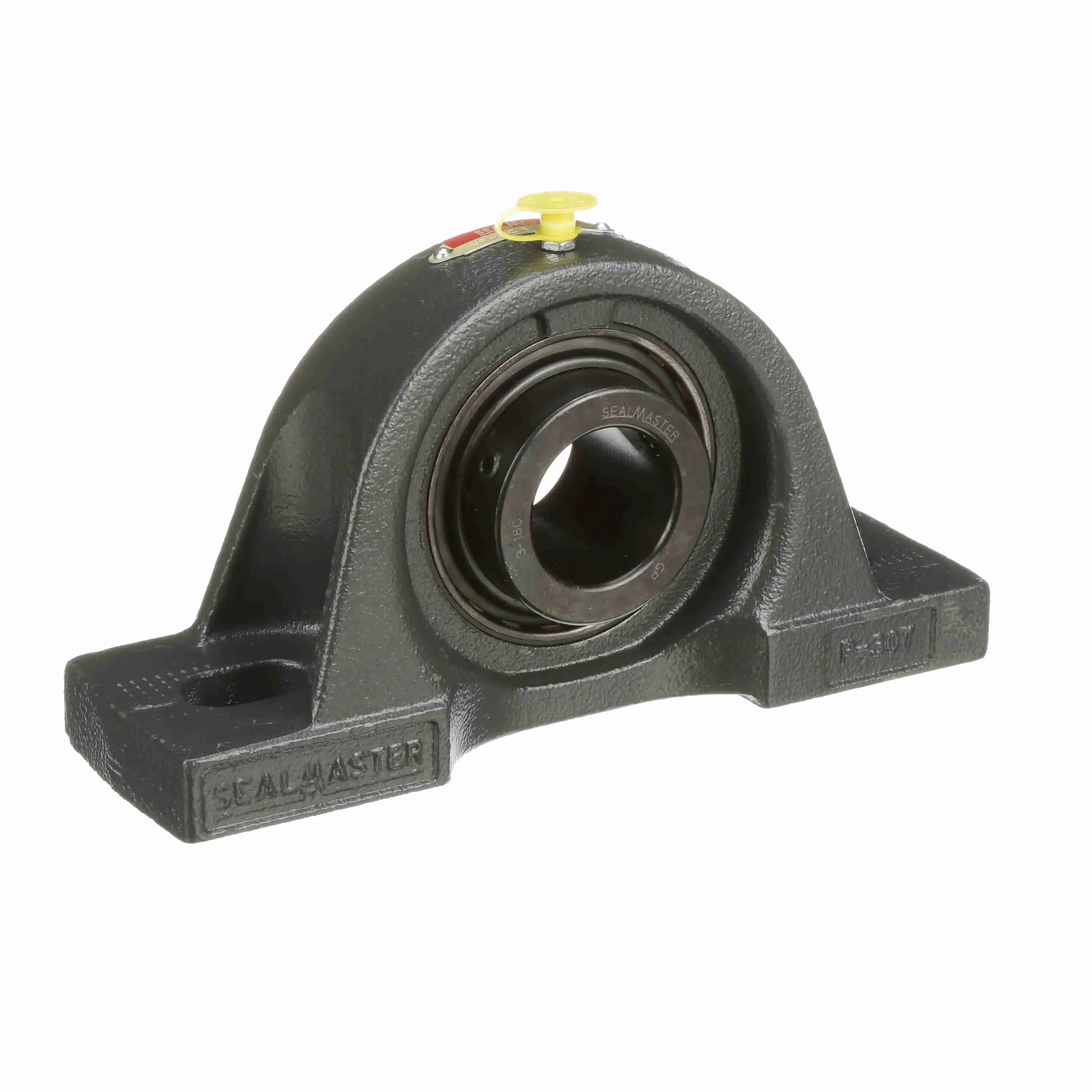

SEALMASTER MP-36C 704213 Pillow Block Bearing, 2 Bolt, 2.25 Inch Bore, Set Screw Mount
Get it by Friday, Dec 19
€555.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 10 1/4" |
| Base To Center Height | 2 3/4" |
| Base Width | 3.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Max | 7.94" |
| Bolt Spacing Min | 6 14/25" |
| Bore Dia. | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.563" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.06" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 2-24C |
| Length Through Bore | 2.563" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.63" |
| Overall Length | 10 1/4" |
| Overall Width | 3.13" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 7.29 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 28.27 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-31 CXU | Steel | 9 1/2" | 2 22/25" | 5.09" | Medium Duty | Set Screw | 1 15/16" | Pillow Block, Two Bolt | €312.19 | |
 |
MP-42C | - | - | - | - | - | - | - | - | €830.06 | |
 |
MP-39 CXU | Steel | 11 1/4" | 3 1/4" | 6 1/4" | Medium Duty | Set Screw | 2 7/16" | Pillow Block, Two Bolt | €624.66 | |
 |
MP-47 CXU | Steel | 13" | 3 1/2" | 7 1/4" | Medium Duty | Set Screw | 2 15/16" | Pillow Block, Two Bolt | €943.46 | |
 |
MP-55 CXU | Steel | 15" | 4.38" | 8 1/4" | Medium Duty | Set Screw | 3 7/16" | Pillow Block, Two Bolt | €1,729.82 | |
 |
MP-35 CXU | Steel | 10 1/4" | 3.13" | 5.63" | Medium Duty | Set Screw | 2 3/16" | Pillow Block, Two Bolt | €380.64 | |
 |
MP-27T | Steel | 8 3/4" | 2.63" | 4.63" | Medium Duty | Concentric | 1 11/16" | Pillow Block, Two Bolt | €360.62 |
