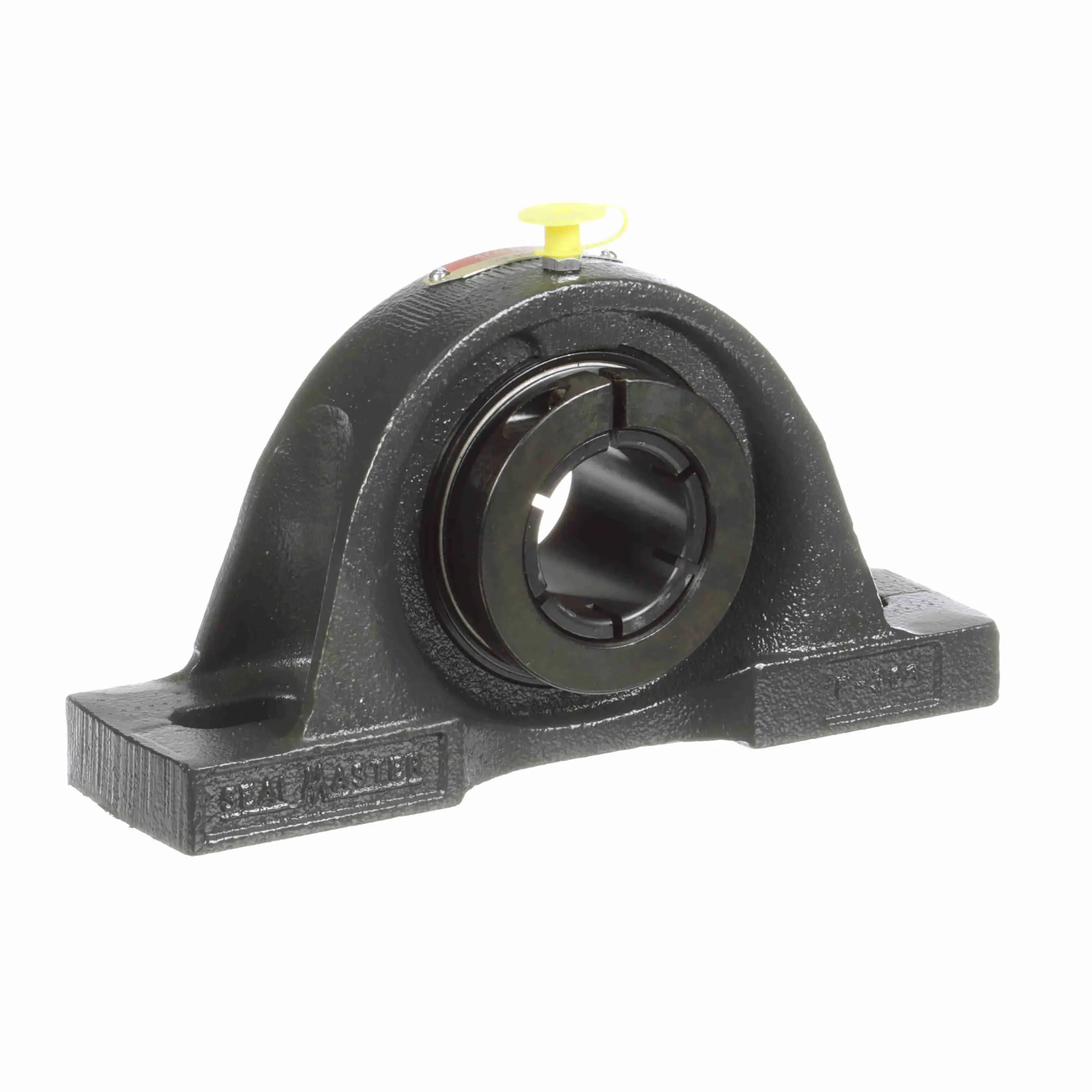

SEALMASTER MP-23T 705651 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Tuesday, Feb 24
€299.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 8" |
| Base To Center Height | 2 1/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5.69" |
| Bolt Spacing Max | 6.38" |
| Bolt Spacing Min | 5" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.31" |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.07" |
| Insert | 3-17T |
| Length Through Bore | 2" |
| Locking Collar Outside Diameter | 2 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5850 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.19" |
| Overall Length | 8" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0909 cPS |
| Vibration Frequency Outer Ring Defect | 0.0591 cPS |
| Vibration Frequency Roller Spin | 0.0376 cPS |
Shipping Info:
| Ship weight (kg) | 3.12 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-27 | Steel | 8 3/4" | 2 5/8" | 4 5/8" | Medium Duty | Set Screws | 1.688" | Pillow Block, Two Bolt | €699.23 | |
 |
MP-38 | Steel | 10 3/4" | 3 1/8" | 5.63" | Medium Duty | Set Screws | 2 3/8" | Pillow Block, Two Bolt | €1,664.59 | |
 |
MP-51 | Alloy Steel | 15" | 4" | 8" | Radial Ball | Set Screws | 3.188" | Pillow Block, Two Bolt | €3,006.82 | |
 |
MP-32 | Steel | 9 1/2" | 2 7/8" | 5.093" | Medium Duty | Set Screws | 2" | Pillow Block, Two Bolt | €1,012.42 | |
 |
MP-15 | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 15/16" | Pillow Block, Two Bolt | €260.43 | |
 |
MP-16 | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 1" | Pillow Block, Two Bolt | €455.43 | |
 |
MP-16 CSK | - | - | - | - | - | - | - | - | €232.27 |
