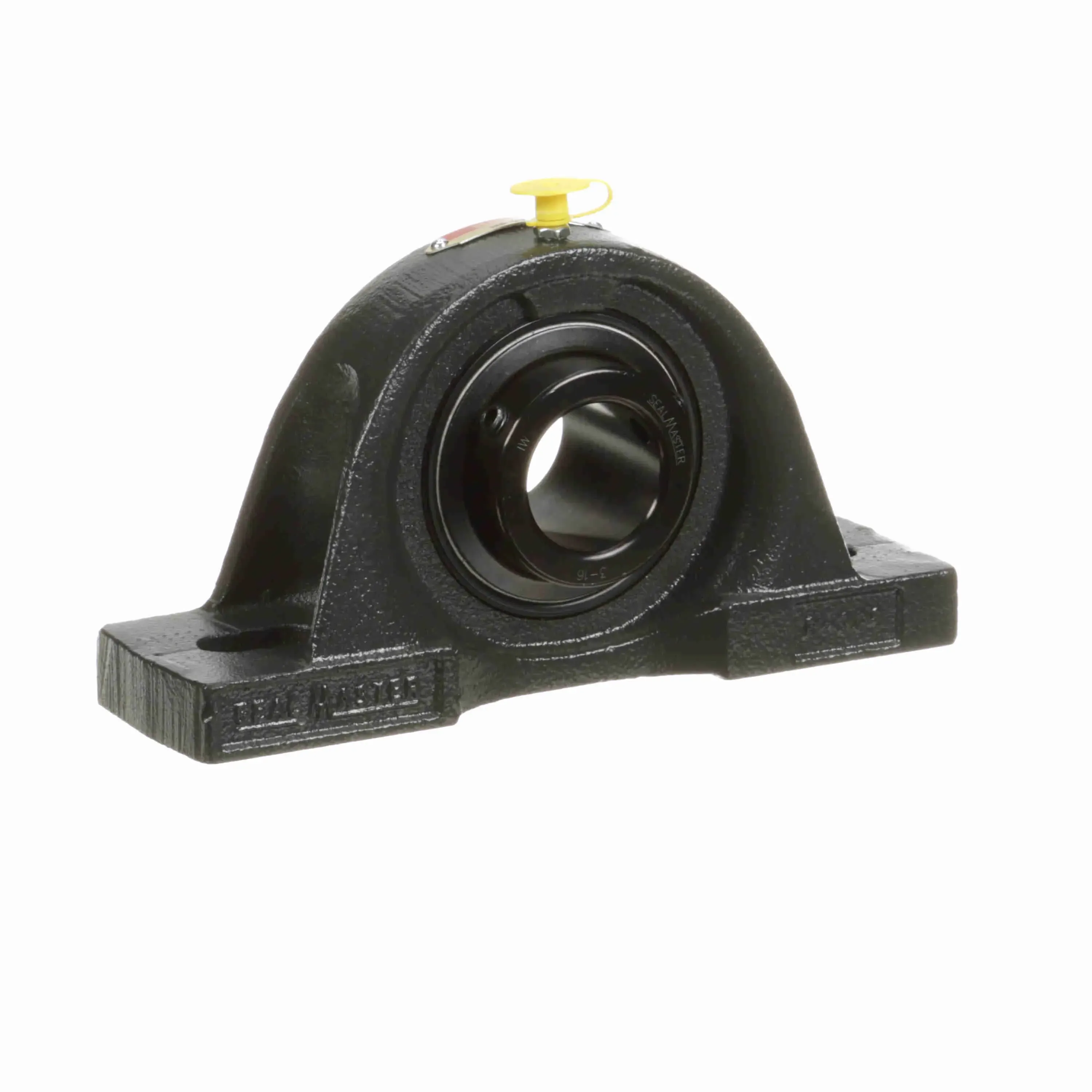

SEALMASTER MP-22 701862 Pillow Block Bearing, 1 3/8 Inch Bore, Cast Iron, Set Screws, 2 1/8 Inch Shaft Ht
Item: BE7KGLModel: MP-22Cross Ref: 44A319 / 701862
7 In Stock
Ships within 2 days via
5.00% off
€1,061.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 0.81" |
| Base Length | 8" |
| Base To Center Height | 2 1/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 1/2" |
| Bolt Spacing | 5.69" |
| Bore Dia. | 1 3/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.185" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 7340 lbs. |
| Dynamic Radial Load Capacity | 7340 lbf. |
| End Cap | No |
| Features | Corrosion Resistant Housing, Set Screw Or Eccentric Locking Collar, Wide Inner Race Bearing With Greater Load Carrying Capacity Than Standard Duty |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-16 |
| Inside Ring Outside Dia. | 2.07" |
| Length Through Bore | 1.935" |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 6.38" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4150 RPM |
| Max. Temp. | 220°F |
| Min. Bolt Spacing | 5" |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Length | 5 33/64" |
| Mount Hole Size | 9/16" |
| Mounting Bolt Size | 1/2" |
| Mounting Surface To Shaft Center Height | 2 1/8" |
| Mounting Type | Bolt Through |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.19" |
| Overall Length | 8" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Resistance Properties | Corrosion Resistant |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Static Radial Load Capacity | 4467 lbf. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0909 cPS |
| Vibration Frequency Outer Ring Defect | 0.0591 cPS |
| Vibration Frequency Roller Spin | 0.0376 cPS |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Bore Dia. | Overall Height | Overall Width | Bolt Size | Base Width | Seal Type | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MP-31 CXU | Cast Iron | 1 15/16" | 5.09" | 2 22/25" | 5/8" | 2 22/25" | Felt Labyrinth Seal | Steel | €312.19 | |
 |
MP-39 CXU | Cast Iron | 2 7/16" | 6 1/4" | 3 1/4" | 3/4" | 3 1/4" | - | Steel | €624.66 | |
 |
MP-47 CXU | Cast Iron | 2 15/16" | 7 1/4" | 3 1/2" | 7/8" | 3 1/2" | - | Steel | €943.46 | |
 |
MP-55 CXU | Cast Iron | 3 7/16" | 8 1/4" | 4.38" | 7/8" | 4.38" | - | Steel | €1,729.82 | |
 |
MP-35 CXU | Cast Iron | 2 3/16" | 5.63" | 3.13" | 3/4" | 3.13" | Felt Labyrinth Seal | Steel | €380.64 | |
 |
MP-27T | Cast Iron | 1 11/16" | 4.63" | 2.63" | 5/8" | 2.63" | Felt Labyrinth Seal | Steel | €446.92 | |
 |
MP-28 | Cast Iron | 1 3/4" | 4.63" | 2.63" | 5/8" | 2.63" | Felt Labyrinth Seal | Steel | €829.35 |
