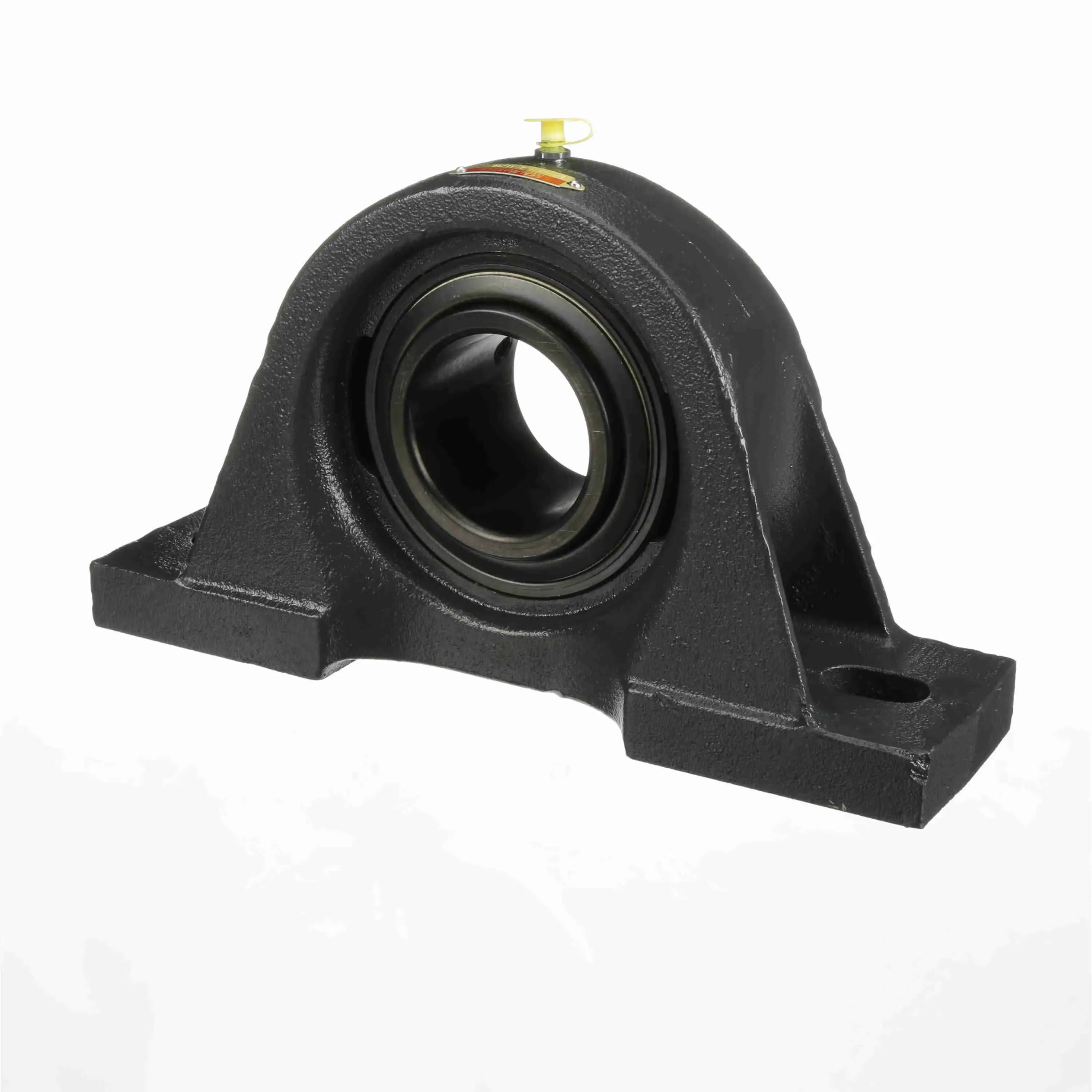

SEALMASTER MHP-43 CXU 700991 Pillow Block Bearing, 2 Bolt, 2.6875 Inch Dia, Setscrew Locking, Standard Felt Seal
Get it by Monday, Dec 22
€1,266.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 13" |
| Base To Center Height | 3 3/4" |
| Base Width | 3.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Max | 10 3/4" |
| Bolt Spacing Min | 9 1/4" |
| Bore Dia. | 2 11/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.641" |
| Inner Ring Outside Diameter | 3.641" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-211 |
| Length | 14 1/4" |
| Length Through Bore | 3.063" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2450 RPM |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 7.19" |
| Overall Length | 13" |
| Overall Width | 3.38" |
| Product Line | Sealmaster Gold Custom Select Suffix |
| Radial Clearance | Standard |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Width | 8.06" |
Shipping Info:
| Ship weight (kg) | 13.14 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
