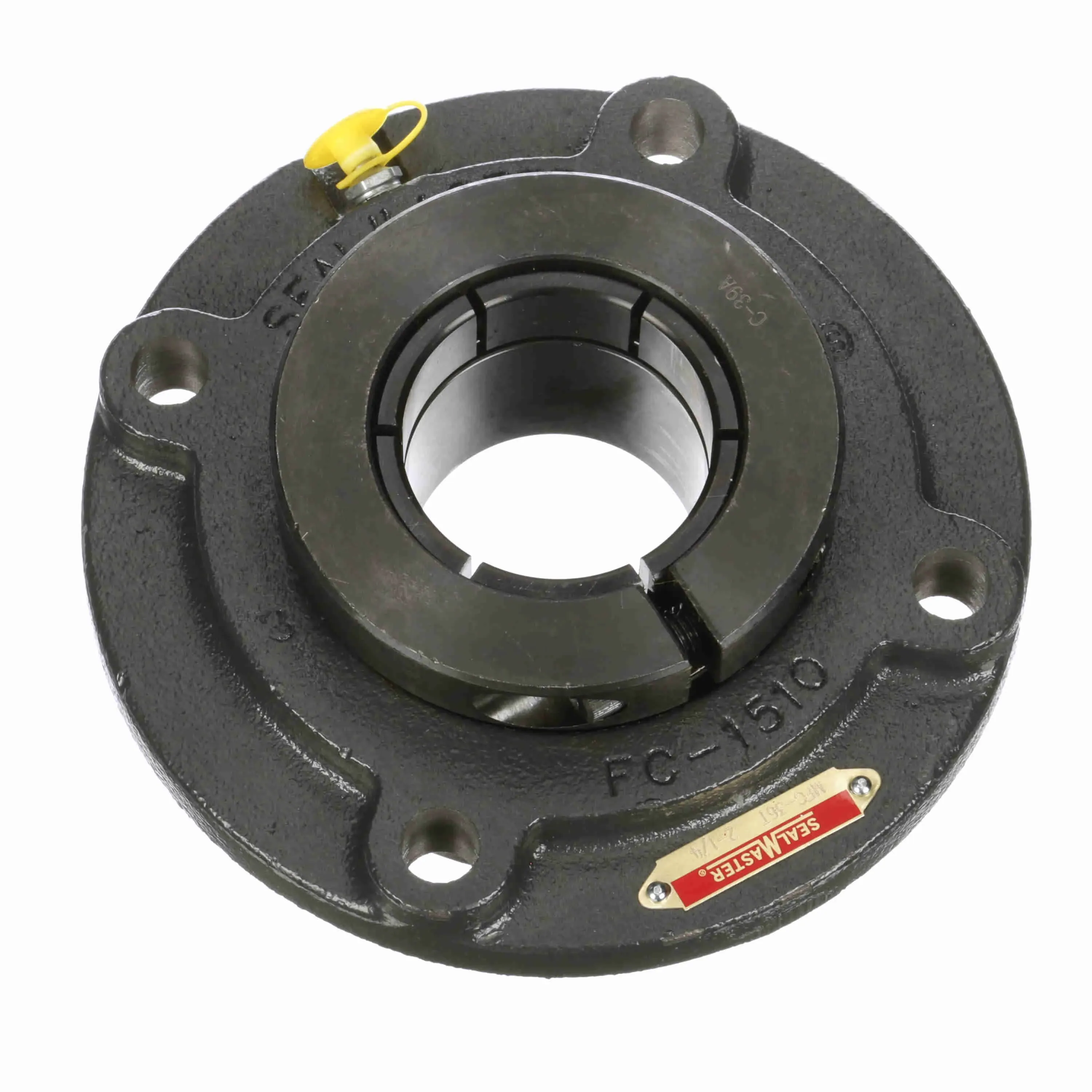

SEALMASTER MFC-36T 705636 Flange Cartridge Bearing, 2.25 Inch Dia, Skwezloc Locking, Standard Felt Seal
Get it by Friday, Dec 19
€614.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Cartridge Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Circle | 6" |
| Bolt Size | 1/2" |
| Bore Dia. | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Diameter | 7 1/8" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 2-24T |
| Length Through Bore | 2 5/8" |
| Locking Collar Outside Diameter | 4.06" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4100 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.63" |
| Overall Length | 7.13" |
| Overall Width | 7.13" |
| Pilot Configuration | Piloted |
| Pilot Depth | 0.844" |
| Pilot Diameter | 5" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
Shipping Info:
| Ship weight (kg) | 4.74 |
| Ship height (cm) | 18.75 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 6.68 |
| Country of Origin | US |
