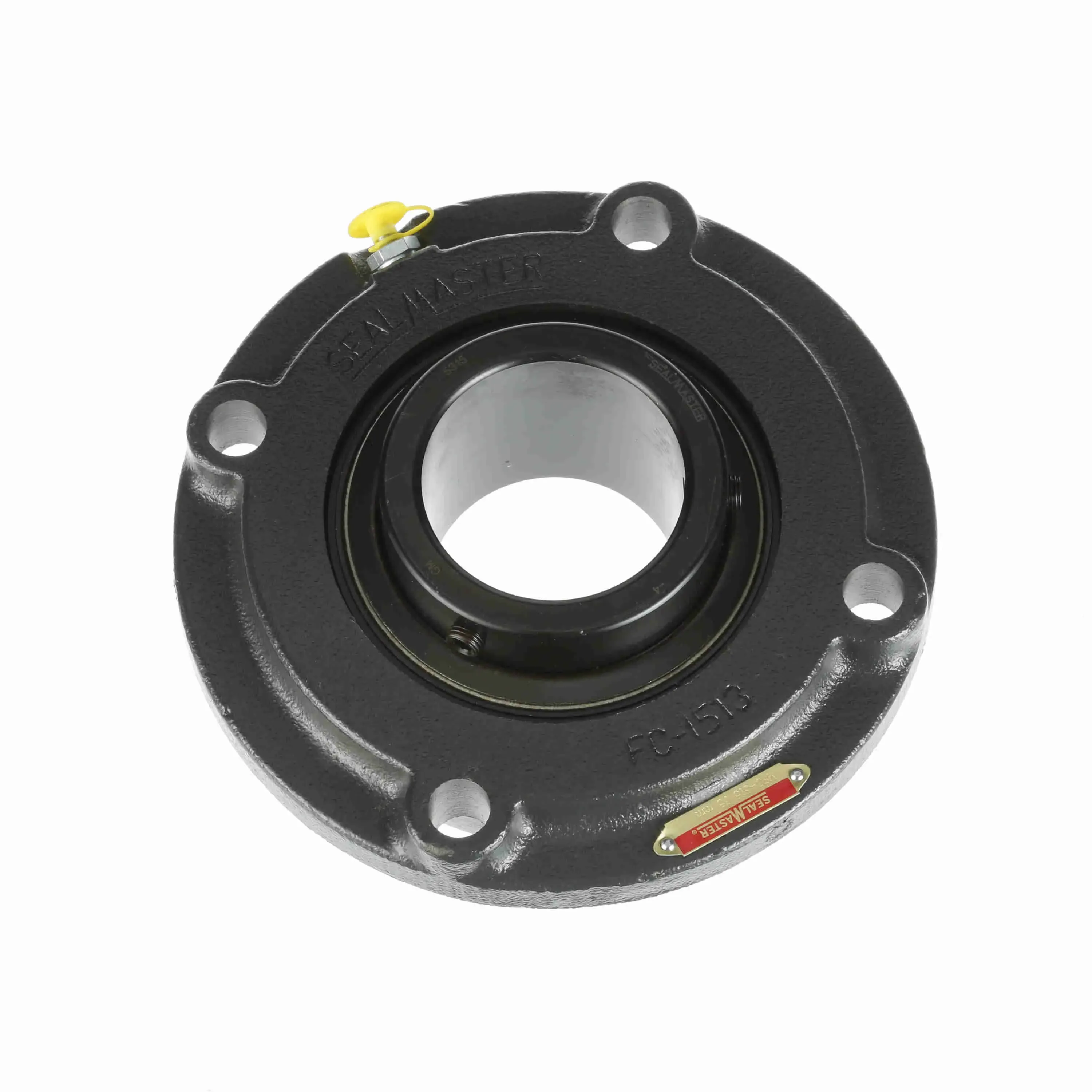

SEALMASTER MFC-315 710194 Flange Cartridge Bearing, 75mm Dia, Setscrew Locking, Standard Felt Seal
Get it by Friday, Dec 19
€1,512.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Cartridge Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Circle | 7 1/2" |
| Bore Dia. | 75 mm |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Duty Series | Medium |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 11/25" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.922" |
| Inner Ring Outside Diameter | 3.922" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5315 |
| Length | 9.06" |
| Length Through Bore | 3.248" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 5450 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 1/4" |
| Overall Length | 8 3/4" |
| Overall Width | 8 3/4" |
| Pilot Configuration | Piloted |
| Pilot Depth | 1.22" |
| Pilot Diameter | 6 3/8" |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Set Screw |
| Shaft Size | 75 mm |
| Size Code | 2-33 |
| Static Load Rating | 13174 lbs. |
| Width | 8.88" |
Shipping Info:
| Ship weight (kg) | 8.66 |
| Ship height (cm) | 22.56 |
| Ship length (cm) | 23.01 |
| Ship width (cm) | 8.74 |
| Country of Origin | US |
