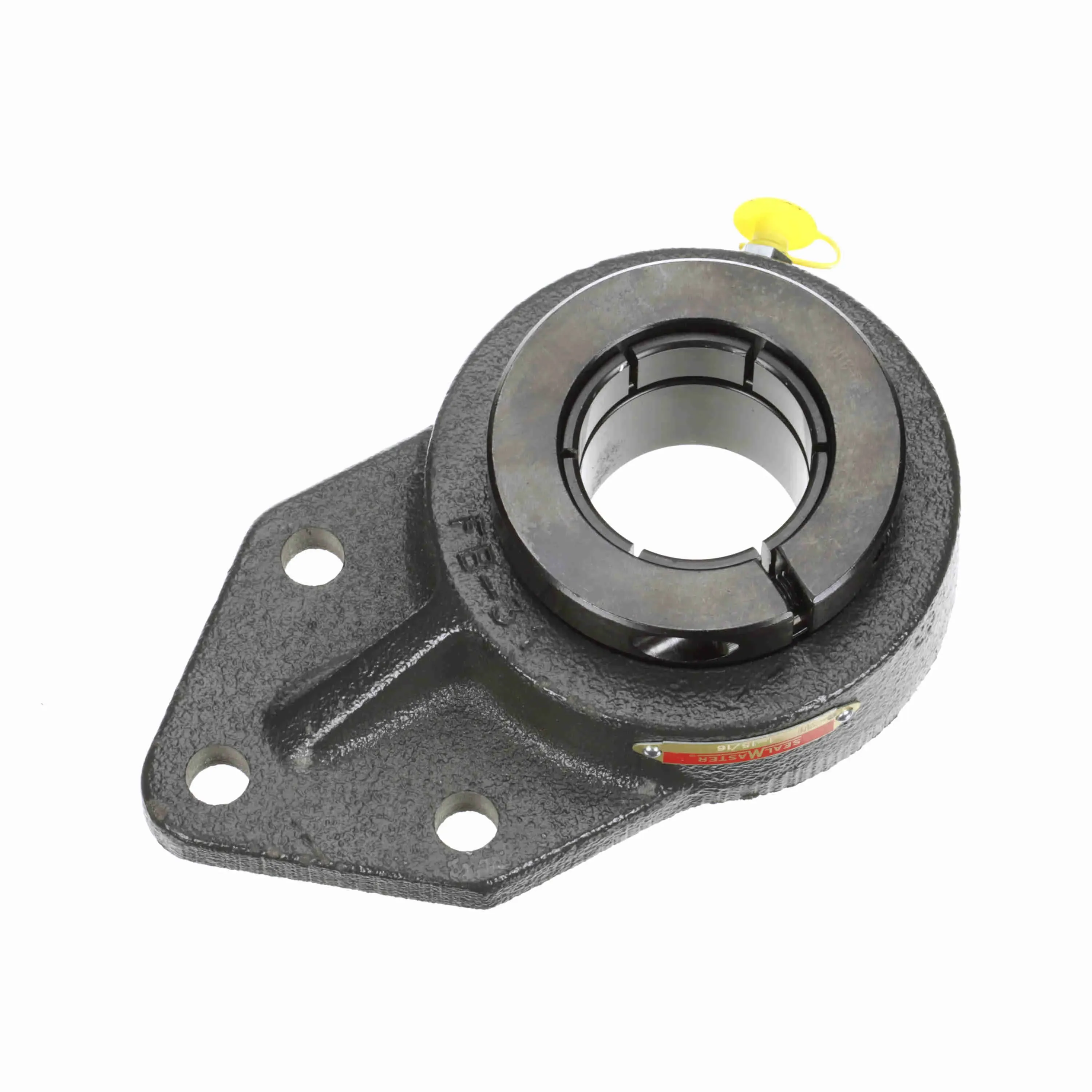

SEALMASTER FB-31T 705624 Flange Block Bearing, 3 Bolt Flange Bracket, 1.93 Inch Bore, 1-5/8 Inch Bolt Spacing
Get it by Friday, Aug 28
€333.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 5.19" |
| Bearing Centerline To Bolt Hole Center | 2 15/16" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 2 3/4" |
| Bolt Spacing Height Direction | 1 5/8" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 4 14/25" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-115T |
| Inside Ring Outside Dia. | 2.469" |
| Length Through Bore | 2.17" |
| Locking Collar Outside Dia. | 3.47" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.31" |
| Overall Length | 7.47" |
| Overall Width | 4 14/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 240 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 19.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Max. Operating Temp. | Rolling Element | Overall Width | Housing Width | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FB-22C CR | - | 1 3/8" | - | - | - | 1 7/8" | 1.4688" | - | €493.18 | |
 |
FB-16T | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €221.76 | |
 |
FB-16C | Single Lip Contact Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €217.54 | |
 |
FB-15T | Felt Labyrinth Seal | 15/16" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €278.53 | |
 |
FB-20 | Felt Labyrinth Seal | 1 1/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 3 3/4" | 3 3/4" | 1/2" | €263.26 | |
 |
FB-16 W | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €226.67 | |
 |
FB-12TC | Single Lip Contact Seal | 3/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2.38" | 2.38" | 3/8" | €157.71 |
