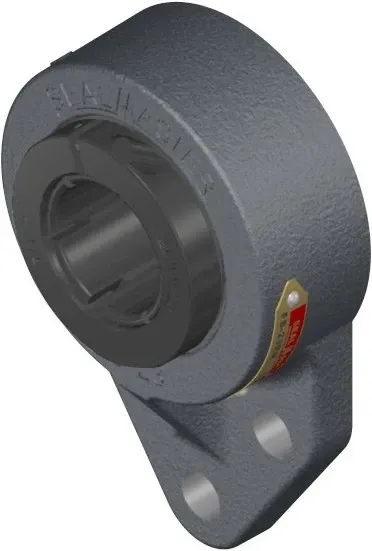

SEALMASTER FB-16T RM Flange Bearing, 3 Bolt, 1 Inch Dia, Skwezloc Locking, Standard Felt Seal
Item: BE7DLKModel: FB-16T RM
7 In Stock
Ships within 2 days via
€306.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Base To Center Height | 3.38" |
| Bearing Centerline To Bolt Hole Center | 1.813" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 1 5/8" |
| Bolt Spacing Height Direction | 1 1/8" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | PPS |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.38" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 5 1/4" |
| Housing Base | Solid |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 2 3/4" |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-1T |
| Inside Ring Outside Dia. | 1 3/8" |
| Length | 3.19" |
| Length Through Bore | 1 12/25" |
| Locking Collar Outside Dia. | 1.98" |
| Locking Device | Skwezloc Concentric |
| Locking Type | Concentric |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 9000 RPM |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1.61" |
| Overall Length | 4 3/4" |
| Overall Width | 2 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Felt Seal |
| Shaft Size | 1" |
| Size Code | 2-015 |
| Static Radial Load Capacity | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.007 Hz |
| Vibration Frequency Inner Ring Defect | 0.099 Hz |
| Vibration Frequency Outer Ring Defect | 0.068 Hz |
| Vibration Frequency Roller Spin | 0.044 Hz |
| Width | 1.69" |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 4.29 |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Max. Operating Temp. | Rolling Element | Overall Width | Housing Width | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FB-22C CR | - | 1 3/8" | - | - | - | 1 7/8" | 1.4688" | - | €493.18 | |
 |
FB-16T | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €221.76 | |
 |
FB-16C | Single Lip Contact Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €217.54 | |
 |
FB-15T | Felt Labyrinth Seal | 15/16" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €278.53 | |
 |
FB-20 | Felt Labyrinth Seal | 1 1/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 3 3/4" | 3 3/4" | 1/2" | €263.26 | |
 |
FB-16 W | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €226.67 | |
 |
FB-12TC | Single Lip Contact Seal | 3/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2.38" | 2.38" | 3/8" | €157.71 |
