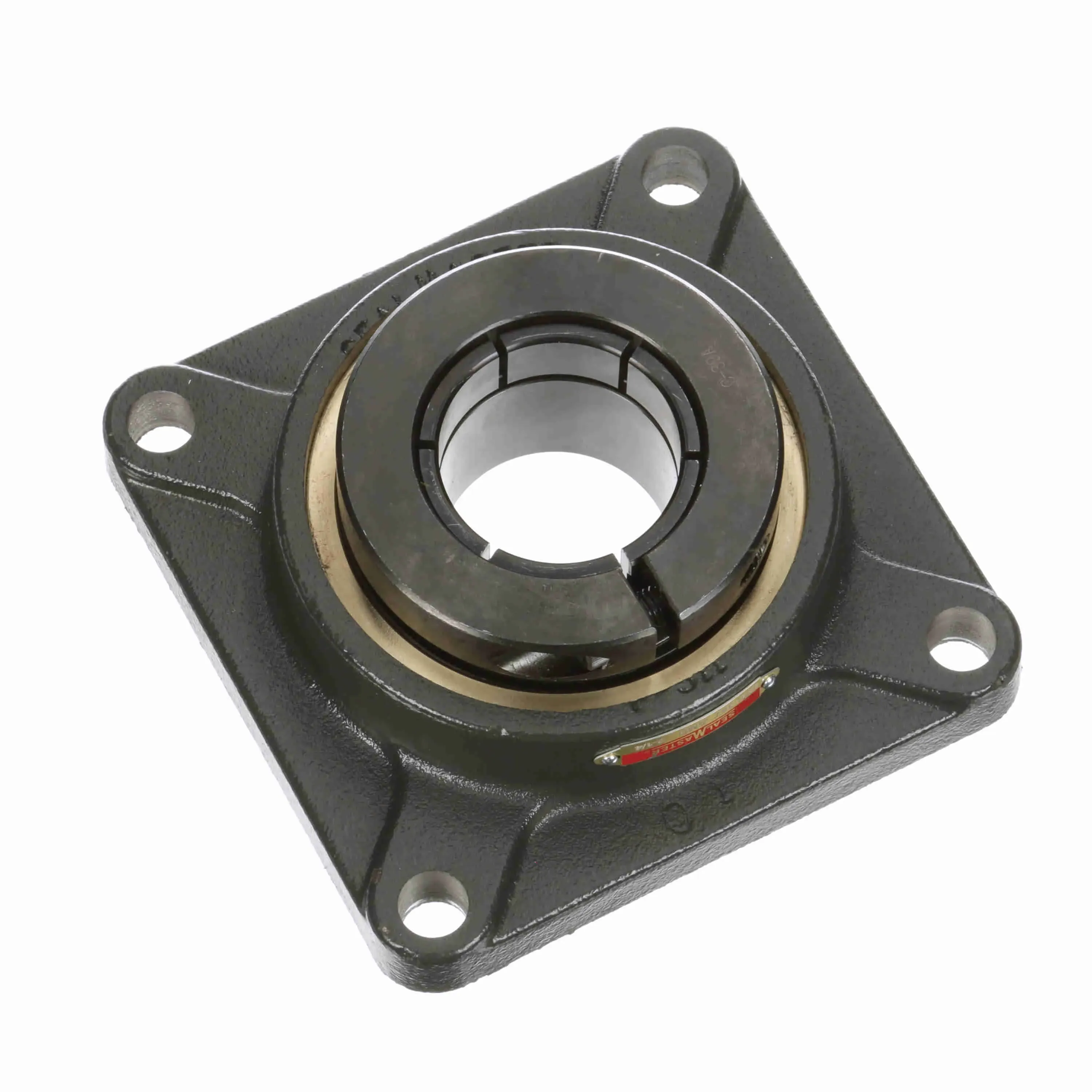

SEALMASTER ESF-36T AMD 711240 Flange Ball Bearing, 4 Bolt, Black Oxided, Concentric Lock, High Temperature, 2.25 Inch
Get it by Tuesday, Sep 1
€888.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 5 5/8" |
| Bore Dia. | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inside Dia. | 5" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR 2-24T BMG |
| Length Through Bore | 2.83" |
| Locking Collar Outside Dia. | 4.22" |
| Lube Fitting Type | Housing Plugged |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4100 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 3/4" |
| Overall Length | 6 22/25" |
| Overall Width | 6 22/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Concentric |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
Shipping Info:
| Ship weight (kg) | 5.31 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 8.41 |
| Country of Origin | US |
