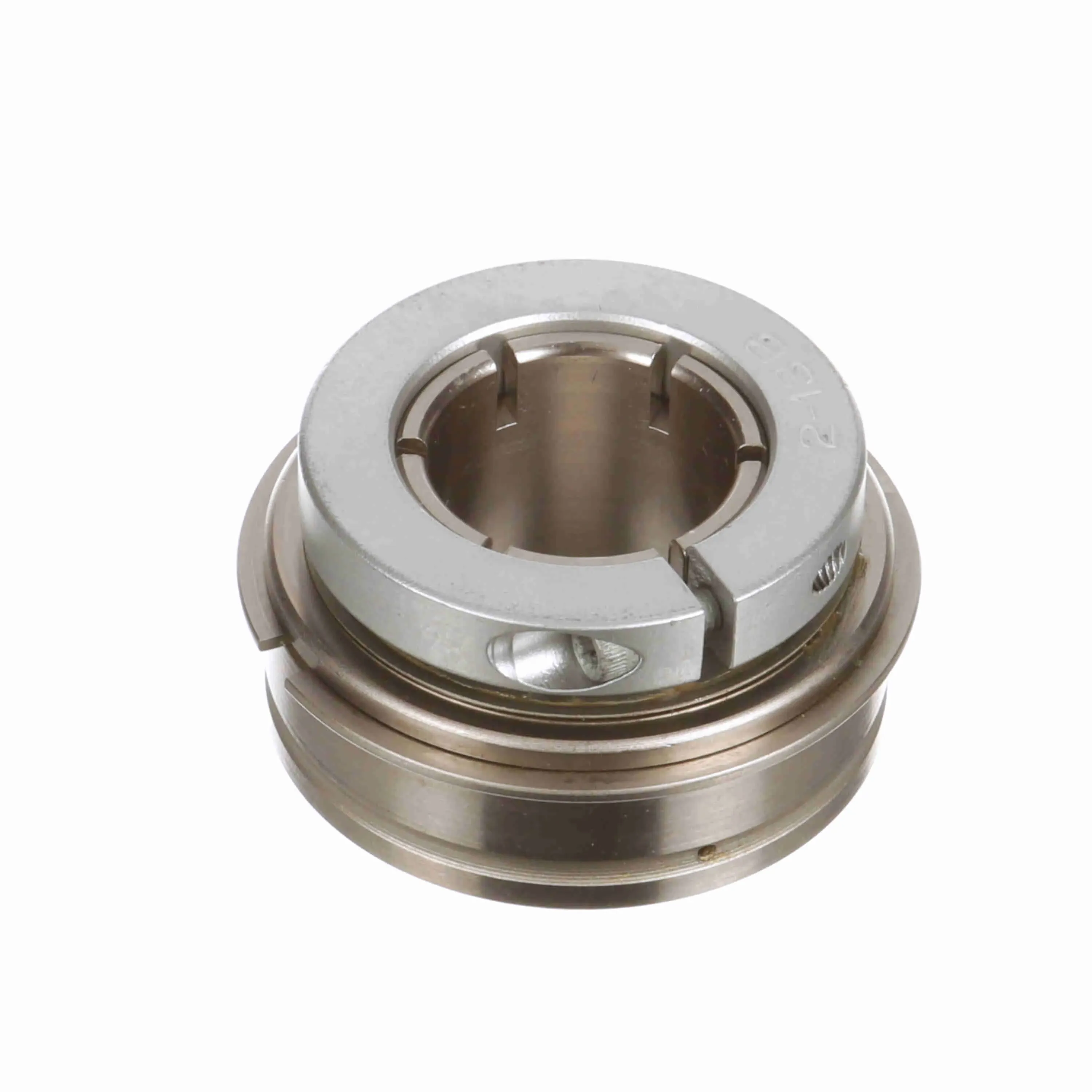

SEALMASTER ERX-PN19T 711479 Ball Insert Bearing, Cylindrical Bore, 1-3/16 Inch Inside Dia.
Get it by Tuesday, Dec 23
€213.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 0.938" |
| Collar Outer Diameter | 2.188" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 4381 lbs. |
| End Cap | No |
| Expansion | No |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.563" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.188" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Concentric |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2300 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Race Od | 2.441" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 7/8" |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 1.563" |
| Platform | PN Gold |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 2567 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | Triple Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Dynamic Radial Load Capacity | Max. Speed | Locking Device | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 9752 lbs. | 1400 RPM | - | - | €270.45 | |
 |
ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 7889 lbs. | 1500 RPM | - | - | €432.75 | |
 |
ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 2611 lbs. | 5800 RPM | - | - | €91.44 | |
 |
ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | €237.30 | |
|
ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | €290.90 | |
 |
ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | Single Set Screw | 2.438" | €336.38 | |
 |
ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 2900 RPM | - | - | €68.45 |
