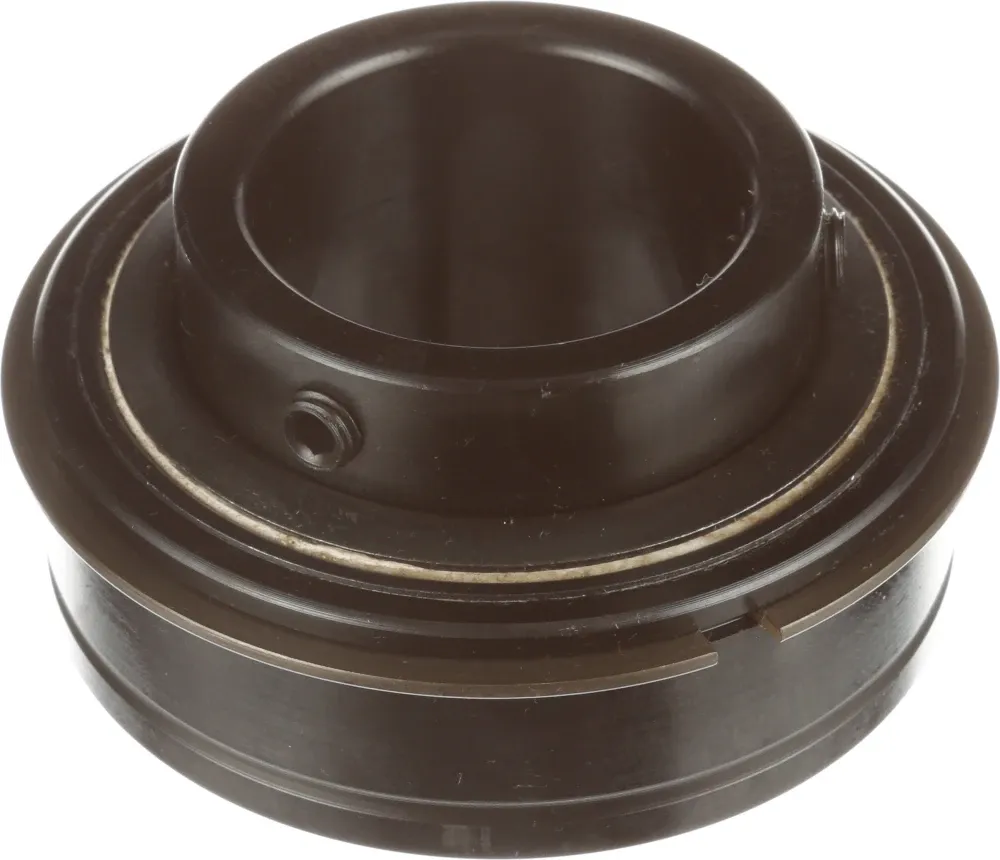

SEALMASTER ERX-48 HI Insert Bearing, 3 Inch Bore, 1.68 Inch Outer Race Width, 5.512 Inch Out Dia
Item: BF8MACModel: ERX-48 HI
7 In Stock
Ships within 2 days via
€978.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 1.938" |
| Duty Series | Standard |
| Dynamic Radial Load Capacity | 17412 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Height | 3.63" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 3 1/4" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Inside Dia. | 3" |
| Inside Ring Outside Dia. | 3.922" |
| Internal Clearance | Increased |
| Length | 5 3/4" |
| Locking Device | Single Set Screw |
| Locking Type | Setscrew |
| Lubricant | Ptfe Thickened Grease |
| Max. Operating Temp. | 400°F |
| Max. Speed | 950 RPM |
| Measure Units | Imperial |
| Misalignment Capability | None |
| Misalignment Type | Static Only |
| Operating Temp. | 400°F |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1.688" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 5.512" |
| Overall Width | 3 1/4" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radius | 3/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball |
| Seal Type | Nomex |
| Shaft Size | 3" |
| Static Radial Load Capacity | 13174 lbs. |
| Width | 5.63" |
Shipping Info:
| Ship weight (kg) | 3.92 |
| Ship height (cm) | 9.22 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 8.26 |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Max. Operating Temp. | Max. Speed | Dynamic Radial Load Capacity | Locking Device | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 400°F | 1400 RPM | 9752 lbs. | - | €270.45 | |
 |
ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 220°F | 1500 RPM | 7889 lbs. | - | €432.75 | |
 |
ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 220°F | 5800 RPM | 2611 lbs. | - | €140.54 | |
 |
ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €237.30 | |
|
ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €290.90 | |
 |
ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | - | Single Set Screw | €336.38 | |
 |
ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 220°F | 2900 RPM | 2611 lbs. | - | €68.45 |
