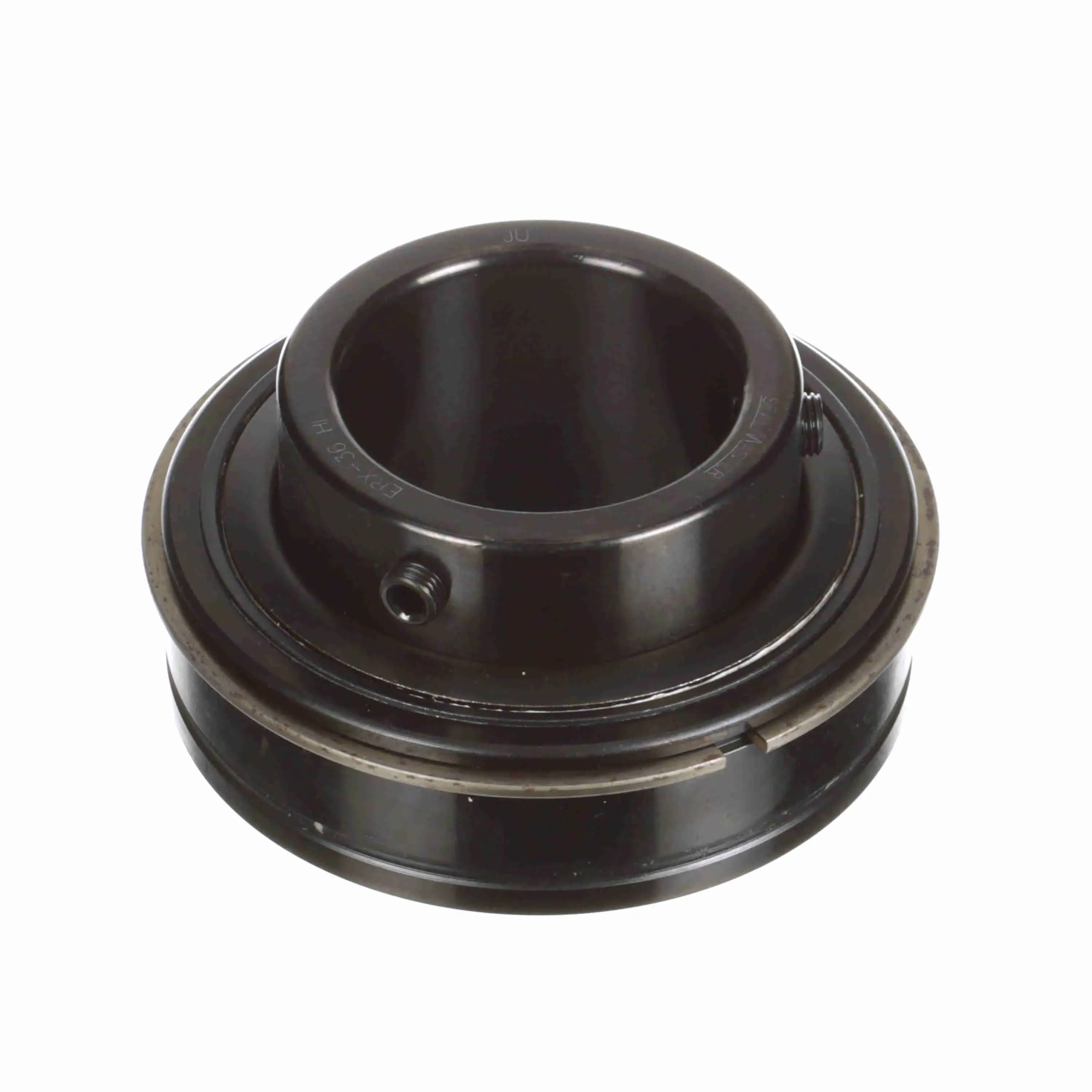

SEALMASTER ERX-36 HI 705058 Insert Bearing, 2.25 Inch Bore, 1.25 Inch Outer Race Width, 4.331 Inch Out Dia
Get it by Friday, Aug 21
€399.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.563" |
| Duty Series | Standard Series |
| Dynamic Radial Load Capacity | 11789 lbs. |
| End Cap | No |
| Expansion | No |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5056 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.563" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Inside Ring Outside Dia. | 2.984" |
| Internal Clearance | Increased |
| Locking Type | Set Screw |
| Lubrication Type | PTFE Thickened Grease |
| Max. Operating Temp. | 400°F |
| Max. Speed | 1250 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1 1/4" |
| Outer Ring Land Profile | Tapered Lands |
| Outside Race Outside Dia. | 4.331" |
| Overall Width | 2.563" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 8150 lbs. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 6.68 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 12.22 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Width | Dynamic Load Capacity | Static Load Capacity | Housing Type | Rolling Element | Retainer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-35 HI | High Temp Labyrinth | 2 3/16" | 2.188" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €270.45 | |
 |
ERX-PN31T | Triple Lip Contact Seal | 1 15/16" | 2.094" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €432.75 | |
 |
ERX-12T LO | Cut Down Felt Labyrinth | 3/4" | 1.281" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €140.54 | |
 |
ERX-PN20 | Triple Lip Contact Seal | 1 1/4" | 1.688" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €237.30 | |
|
ERX-PN23T | Triple Lip Contact Seal | 1 7/16" | 1 3/4" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €290.90 | |
 |
ERX-39 XLO | Extra Low Drag Felt | - | - | - | - | Insert Only | Ball | - | €336.38 | |
 |
ERX-12 XLO | Cut Down Felt Labyrinth | 3/4" | 1.219" | - | - | Insert Er Style | Ball Bearing | Land Riding Retainer | €68.45 |
