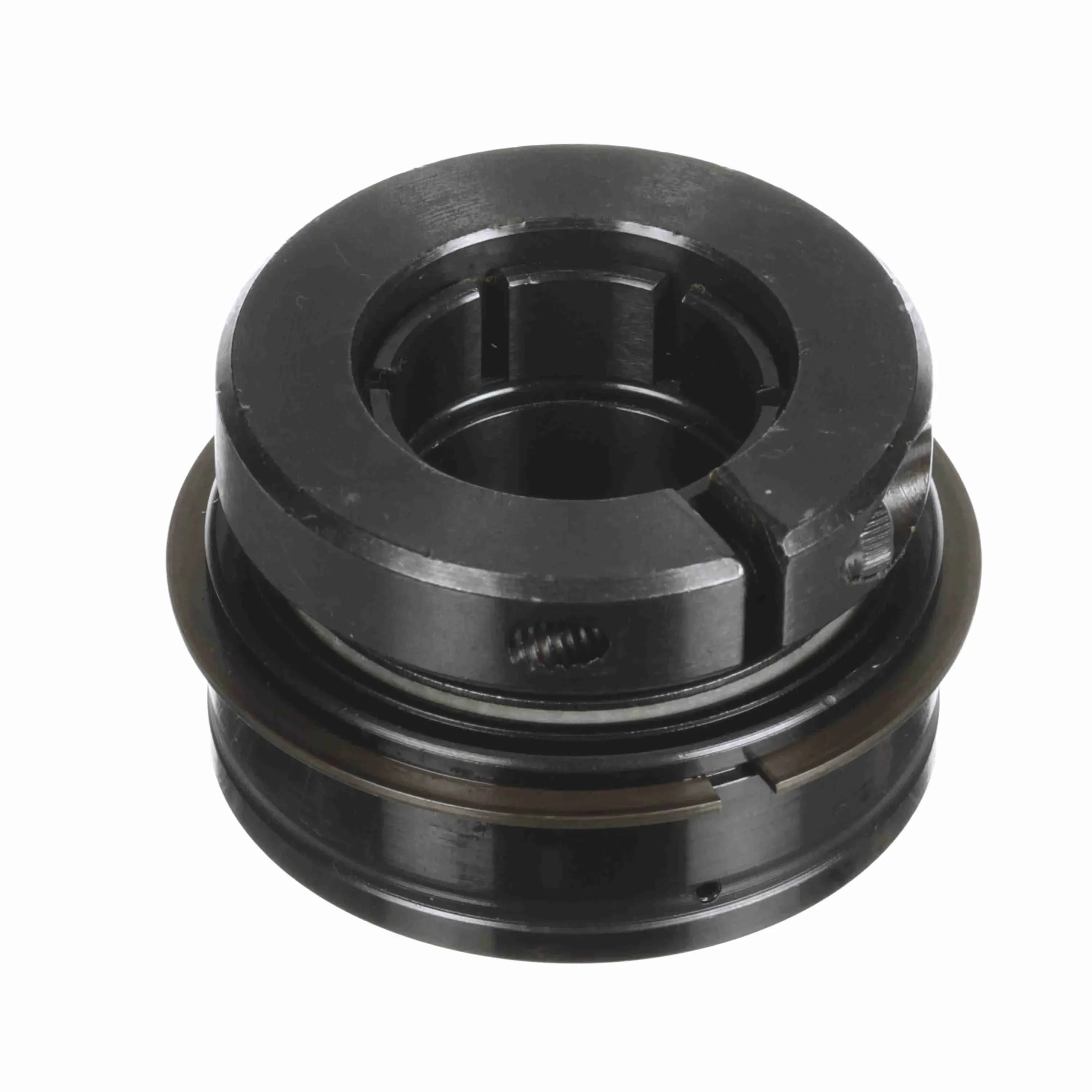

SEALMASTER ERX-16T XLO 705041 Insert Bearing, 1 Inch Bore, 3/4 Inch Outer Race Width, 2-3/64 Inch Out Dia
Get it by Tuesday, Mar 3
€107.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Molded Nylon |
| Centerline To Front Face | 0.922" |
| Collar Outer Diameter | 1 3/8" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 2801 lbs. |
| End Cap | No |
| Expansion | No |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5048 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.438" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Concentric |
| Lubrication Type | Oil Coated Only No Factory Grease Fill |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2500 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Options | Extra Low Drag |
| Outer Race Od | 2.047" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 3/4" |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 1.438" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1651 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | Cut Down Felt Labyrinth |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Dynamic Radial Load Capacity | Max. Speed | Locking Device | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-10 LO | Insert Er Style | 5/8" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 5800 RPM | - | - | €61.82 | |
 |
ERX-10 XLO | Insert Er Style | 5/8" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 2900 RPM | - | - | €68.43 | |
 |
ERX-11 LO | Insert Only | - | - | Low Drag Felt | - | - | Single Set Screw | 0.688" | €541.13 | |
 |
ERX-11 XLO | - | - | - | - | - | - | - | - | €165.38 | |
 |
ERX-12 HI | Insert Er Style | 3/4" | 1.219" | High Temp Labyrinth | 2611 lbs. | 3200 RPM | - | - | €98.90 | |
 |
ERX-12 HIY | Insert Only | - | - | Nomex | - | - | Half Dog And Wire Setscrew | 3/4" | €179.17 | |
|
ERX-12 LO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 5800 RPM | - | - | €60.37 |
