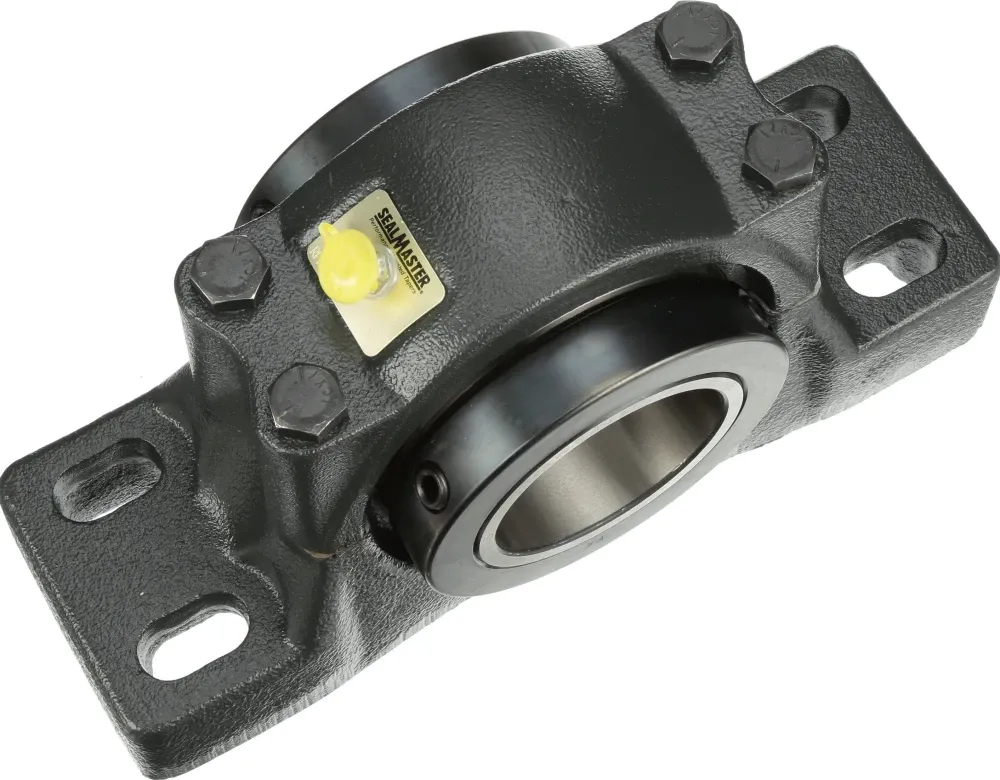

SEALMASTER ERPB 500-4 550815 Pillow Block Bearing, 4 Bolt, 5 Inch Bore, 5.5 Inch Base to Center Height
Get it by Tuesday, Dec 23
€11,179.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 5 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bolt Center Min | 13 1/2" |
| Bolt Size | 7/8" |
| Bore Dia. | 5" |
| Bore Shape | Straight |
| Collar Outer Dia. | 7.406" |
| Collar Outer Diameter | 7 13/32" |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 3 1/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Height | 11" |
| Housing Base | Semi-Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 5" |
| Inner Race Length | 7 1/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCI 500 |
| Internal Clearance | Standard |
| Length | 18 3/4" |
| Locking Device | Double Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1000 RPM |
| Misalignment Type | Static Only |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Series | Rpb |
| Shaft Size | 5" |
| Width | 7 1/2" |
Shipping Info:
| Ship weight (kg) | 72.45 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 47.63 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Housing Type | Shaft Size | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERPB 415-N4 | 4 15/16" | 18 1/2" | 11.313" | - | Pillow Block, Four Bolt | - | 1000 RPM | 7/8" | €18,254.92 | |
 |
ERPB 307-C2 | 3 7/16" | 13 3/4" | 7.938" | 5" | - | 3 7/16" | 1500 RPM | 7/8" | €2,516.81 | |
 |
ERPB 315-4 | 3 15/16" | 15 1/4" | 8 7/8" | 6 1/4" | - | 3 15/16" | 1250 RPM | 3/4" | €3,613.33 | |
 |
ERPB 211-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 11/16" | - | - | €6,683.99 | |
|
ERPB 207-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 7/16" | - | - | €2,337.06 | |
 |
ERPB 112-C2 | - | - | - | - | Two Bolt Pillow Block | 1 3/4" | - | - | €769.42 | |
 |
ERPB 303-N2 | 3 3/16" | 13 3/4" | 7.938" | - | Pillow Block, Two Bolt | - | 1500 RPM | 7/8" | €6,413.71 |
