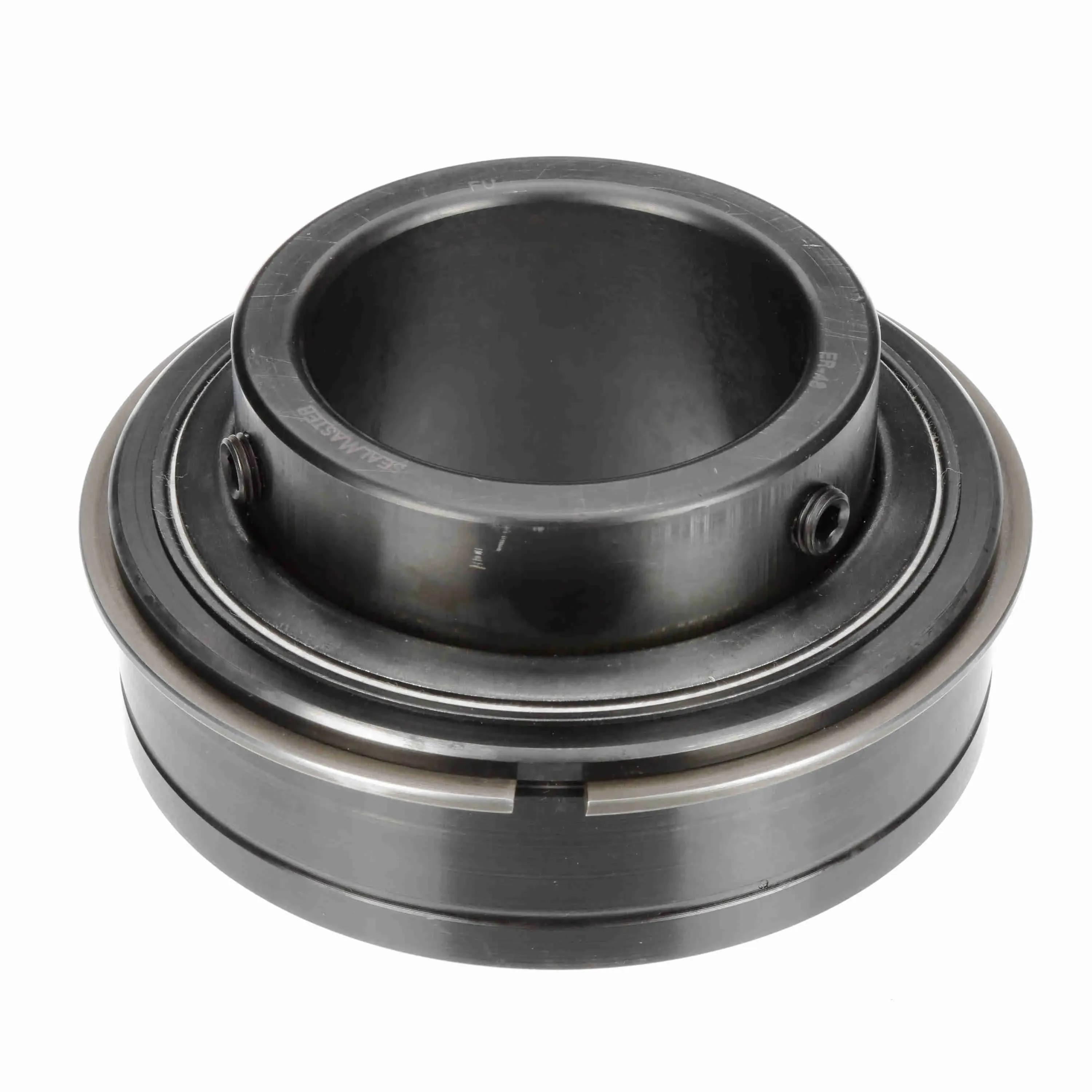

SEALMASTER ER-48 701092 Insert Bearing, ER-48, 3 Inch Size Bore, 5 1/2 Inch Size OD
Item: CU2KWLModel: ER-48Cross Ref: 44A687 / 701092
7 In Stock
Ships within 2 days via
5.00% off
€1,179.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy, Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | ER-48 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Cylindrical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 3" |
| Bore Dia. Tolerance | -0.001" to 0" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 1.938" |
| Closure | Double Sealed |
| Duty Series | Standard , Standard Series |
| Dynamic Load Capacity | 17412 lbs. |
| Dynamic Radial Load Capacity | 17412 lbs. |
| Element Material | Alloy Steel |
| End Cap | No |
| Expansion | No |
| Features | 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| For Environment | Highly Dusty And Dirty |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 3.63" |
| Htc | 8482.10.5056 |
| Included | Retaining Ring, Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 3 1/4" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Width | 3 1/4" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Inside Dia. | 3" |
| Inside Ring Outside Dia. | 3.922" |
| Internal Clearance | Standard |
| Length | 5 3/4" |
| Load Direction | Radial |
| Locking Device | Single Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2250 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Cylindrical |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 1.688" |
| Outside Dia. | 5 1/2" |
| Outside Race Outside Dia. | 5.5118" , 5.512" |
| Overall Width | 3 1/4" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radius | 3/25" |
| Ring End To Center Width | 1.938" |
| Ring Material | Alloy, Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Set Screw Thread Size | 7/16"-20 |
| Set Screw Thread Type | UNF |
| Shaft Locking Type | Set Screw |
| Shaft Size | 3" |
| Static Radial Load Capacity | 13174 lbs. |
| Width | 5.63" |
Shipping Info:
| Ship weight (kg) | 3.89 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 9.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Dynamic Radial Load Capacity | Outside Race Outside Dia. | Duty Series | Htc | Inner Race Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | Standard Felt Seal | 11789 lbs. | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | Single Lip Contact Seal | 2801 lbs. | 2.047" | Standard Series | 8482.10.5048 | 1.438" | 1.438" | €88.92 | |
 |
ER-34 | 2 1/8" | Felt Labyrinth Seal | 9752 lbs. | 3.937" | Standard Series | 8482.10.5052 | 2.188" | 2.188" | €544.00 | |
 |
ER-32R | 2" | Felt Labyrinth Seal | 9752 lbs. | 3.543" | Standard Series | 8482.10.5052 | 2.031" | 2.031" | €394.62 | |
 |
ER-12C | 3/4" | Single Lip Contact Seal | 2611 lbs. | 1.85" | Standard Series | 8482.10.5048 | 1.219" | 1.219" | €54.47 | |
 |
ER-20C | 1 1/4" | Single Lip Contact Seal | 5782 lbs. | 2.836" | Standard Series | 8482.10.5052 | 1.688" | 1.688" | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €147.00 |
